Right Angle Low Voltage DC Power Connectors Rated Current 3A Black Color
Right Angle Low Voltage DC Power Connectors Rated Current 3A Black Color
Right Angle Low Voltage DC Power Connectors Rated Current 3A Black Color
Right Angle Low Voltage DC Power Connectors Rated Current 3A Black Color
Specifications
Brand Name :
CSCE
Model Number :
DC-005
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Rated Voltage :
50V DC
Rated Current :
3A
Voltage resistance :
≥500MΩ
Operating temperature :
-40℃-+85℃
Insertion force :
≤30N
Name :
Low Voltage DC Power Connectors
Description
Low Voltage DC Power Connectors 3A Dc Power Jack Socket Female Black Right Angle

Quick Details:

Specification: Low Voltage DC Power Connectors Cross Part NO: DC-005
Rated Current: 3A Samples: Available 2-3 Pcs

Product Description:

Rated Current 3A
Rated Voltage 50V DC
Contact resistance ≤30mΩ
Insulation resistance ≥500mΩ
Voltage resistance 500V AC

Insertion force

 ≤30N
Operating temperature -40℃-+85℃
Wave soldering temperature 265±5℃,5s
Salt spray 12H

Why choose us

  1. Have a strong research and development ability for a new product
  2. Equipment and manufacturing ability for would
  3. Competitive price , and in time delivery well-selling in both domestic and foreign markets.
  4. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
  5. Reasonable prices, very competitive and reliable.
  6. Excellent sales team and tech team ready to serve you.
  7. Fast delivery.
  8. OEM services with agreed quantity by both parties.
  9. Specializes in the development , design , production and sale of communication network connectors .
  10. We hope to make long term business cooperation with all our customers

Main Customers

Hisense Skyworth FOXCONN JEZETEK TCL NEC
TENDA HUMAX PANASONIC HUAWEI CIG TwoWing

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

14 Years Experience

Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.

OEM Services

For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.

Production Ability

The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

Our Team

We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.

Our Services


Customer Satisfaction:Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.

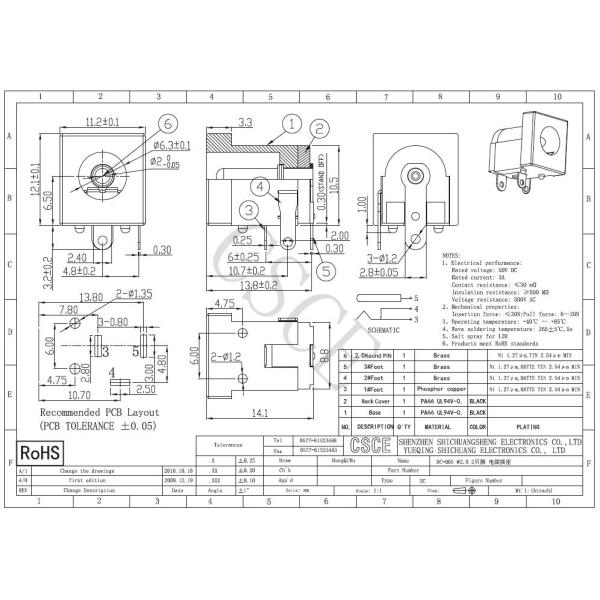

Product Drawing:

Right Angle Low Voltage DC Power Connectors Rated Current 3A Black Color
