Tab Up SMT RJ45 Connector 1 * 1 Port Storage Temperature ﹣40℃ To +85℃
Tab Up SMT RJ45 Connector 1 * 1 Port Storage Temperature ﹣40℃ To +85℃
Tab Up SMT RJ45 Connector 1 * 1 Port Storage Temperature ﹣40℃ To +85℃
Tab Up SMT RJ45 Connector 1 * 1 Port Storage Temperature ﹣40℃ To +85℃
Specifications
Brand Name :
CSCE
Model Number :
SROJ-3B11114-061HL
Certification :
ROHS UL ISO
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Application :
PCB
Color :
Black
Pin :
8
Material :
High Performance Engineering Plastic
Keywords :
rj45 smt connector
Description
SROJ-3B11114-061HL SMT RJ45 Connector 1*1 Port Tab Up With Shielded Leds




Product Specification:

Specification:SMT RJ45 ConnectorCross Part NO:SROJ-3B11114-056HL
Mounting:Thru-hole R/ASamples:Available 2-3 Pcs
Latch:Tab upFiles:PDF/3D/ISG/Stp/Step/Datasheet





Product Details:

1. Current Rating1.5A
2. Voltage Rating125v
3. Contact Resistance30milliohm Max
4. Withstand Voltage1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force2.2KG.F MAX.
7. Retention Strength7.7KG.F MIN Between Jack And Plug
8. Operating Life750 Cycles MIN.
9. Operation Temperature﹣40℃ to +85℃
10. Storage Temperature﹣40℃ to +85℃
11. Housing MaterialLCP
12. Contact MaterialPhosphor Bronze
13. Contact Mating Area PlatingGold/3u"/6u"/15u"/30u"





Competitive prices and services:

More competitive prices than pulsed Tico halos and aphorol
Delivery time: 2-3 weeks after order
Samples provided free of charge
New designs to meet customer requirements
DHL UPS DEDEX or TNT reduces shipping costs by 90%



Professional certification

ISO 9001:2008
UL certification
- Reach Cetitaction
RoHS Compliance
Active environmental policy



Why choose us :

14Years Experience
Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.
Our Team
We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.
Production Ability
The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

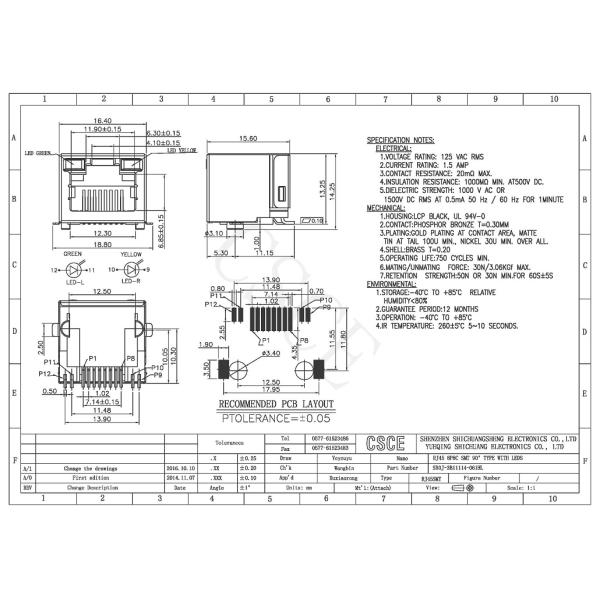

Product Drawing:

Tab Up SMT RJ45 Connector 1 * 1 Port Storage Temperature ﹣40℃ To +85℃
