8P8C Surface Mount Modular Jack , Surface Mount RJ45 With Green / Yellow Led
8P8C Surface Mount Modular Jack , Surface Mount RJ45 With Green / Yellow Led
8P8C Surface Mount Modular Jack , Surface Mount RJ45 With Green / Yellow Led
8P8C Surface Mount Modular Jack , Surface Mount RJ45 With Green / Yellow Led
Specifications
Brand Name :
CSCE
Certification :
ROHS UL ISO
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Model Number :
SROJ-3B11114-060HL
name :
Surface Mount RJ45
Application :
PCB
Business type :
Manufacturer
Product name :
rj45 smt connector
Shielding shell plating :
Nickel
Description
Surface Mount SMT RJ45 Connector 8p8c 10/100 Base-T With G/Y Led SROJ-3B11114-060HL



Product Specification:

Specification:SMT RJ45 ConnectorCross Part NO:SROJ-3B11114-060HL
Mounting:Thru-hole R/ASamples:Available 2-3 Pcs
Latch:Tab upFiles:PDF/3D/ISG/Stp/Step/Datasheet




Product Details:

1. Current Rating1.5A
2. Voltage Rating125v
3. Contact Resistance30milliohm Max
4. Withstand Voltage1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force2.2KG.F MAX.
7. Retention Strength7.7KG.F MIN Between Jack And Plug
8. Operating Life750 Cycles MIN.
9. Operation Temperature﹣40℃ to +85℃
10. Storage Temperature﹣40℃ to +85℃
11. Housing MaterialLCP
12. Contact MaterialPhosphor Bronze
13. Contact Mating Area PlatingGold/3u"/6u"/15u"/30u"
14. Shell MaterialBrass
15. Shell PlatingNi Plating
16. LED OptionYellow/Green LEDs




Product application:

Free for network and communication device sas HUB, PC card, switch, router, PC board, SDH, PDH, IP phone, x DSL modem, call center solution, call set-top box, VOIP gateway, setup protocol gateway, fast Ethernet switch ...



Competitive prices and services:

More competitive prices than pulsed Tico halos and aphorol
Delivery time: 2-3 weeks after order
Samples provided free of charge
New designs to meet customer requirements
DHL UPS DEDEX or TNT reduces shipping costs by 90%

Why choose us:

  1. Equipment and manufacturing ability for mould
  2. Competitive price , and in time delivery well-selling in both domestic and foreign markets
  3. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
  4. Specializes in the development , design , production and sale of communication network connectors .

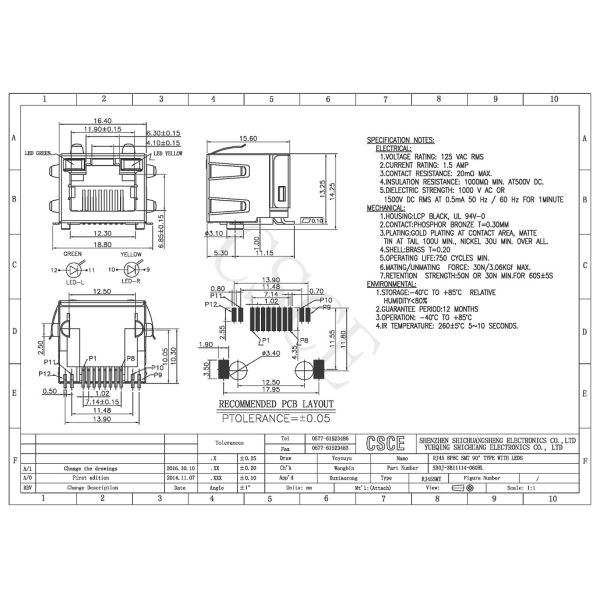

Product Drawing:

8P8C Surface Mount Modular Jack , Surface Mount RJ45 With Green / Yellow Led
