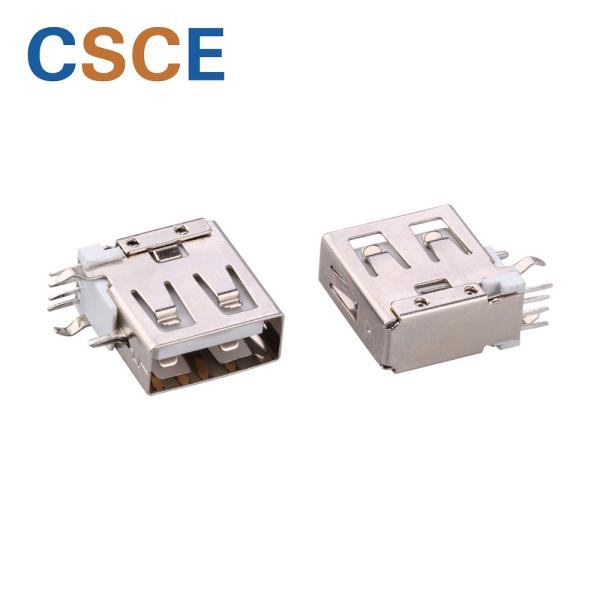

Side Insert USB Male Female Connector Short Body L 14mm White USB 2.0 AF Type
Side Insert USB Male Female Connector Short Body L 14mm White USB 2.0 AF Type
Side Insert USB Male Female Connector Short Body L 14mm White USB 2.0 AF Type
Side Insert USB Male Female Connector Short Body L 14mm White USB 2.0 AF Type
Specifications
Brand Name :
CSCE
Model Number :
SUSB-1W1142-047ZK
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
USB
Color :
White or other colors are available
Material :
UL94-V0
Voltage rating :
30V max
Gender :
Female
Pin :
4pin
Description
USB 2.0 AF Type Side Insert Short Body USB Side Insert Connector L 14mm

Quick Details:

Specification: USB Connector Cross Part NO: SUSB-1W1142-047ZK
Shell: Copper Alloy Samples: Available 2-3 Pcs

Product Description:

Material Housing Thermoplostice,PBT,UL94V-0
Colar White
Material Contact C2680,T=0.25mm
Material Shell C2680 T=0.30mm
Finish Contact

1u''Gold Plated On Contact Area

80u'' Min.Tin Plated On Solder Area

50u'' Min.Nickel Underplating Over All
Finish Shell 50u'' Min.Nickel Underplating Over All
Rated Voltage 500V AC/DC
Rated Current 2.5 A Max
Insulation Resistance 1000MΩ Min At 500V/DC For 1 Minute
Contact Resistance 30MΩ Max At 20Mv Max 50 MA
Moting Force 3.57kgf Max
Unmating Force 1.02 kgf Min
Dielectric Withstanding Voltage No discharge,flashover or breakdown at500V/AC 1 Minute

Competitive Advantage

14 years production experience,

3000 staff,

100% test

Flexible delivery time

Our Services

1. Factory price

• Own production workers, production equipment and engineering technology team

• New original with low and discount price

2. Safe & Quality Reliability

• Quality insurance system for superb product quality

• On Time, Every Time provision of Quality Components.

3. Customer Friendly Services

• Support in many Languages website, more convenience & fast services.

FAQ

Q: Can I get some samples?

A: Yes, sample order is available, some samples are free. and it will be freight collect payment.

Q : How long is your lead time?

A: Normally, our lead time is 5-7 days according to different products.

Q: What's your payment term?

A: We accept TT/LC/DP/DA/Paypal/Western Union/MoneyGram

Q: Why choose our company?

A: 1. Professional manufacturer since 2005, provide various kinds of connectors and LAN Transformer

2. Good quality, competitive price with best service.

3. Available for ODM/OEM order.

Product Drawing:

Side Insert USB Male Female Connector Short Body L 14mm White USB 2.0 AF Type
