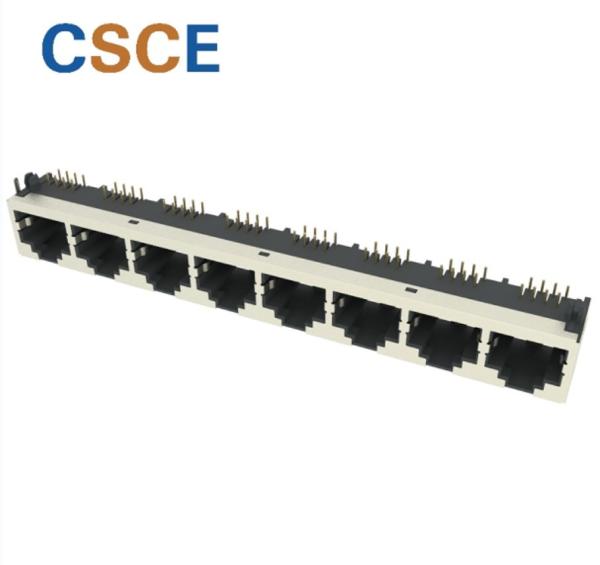

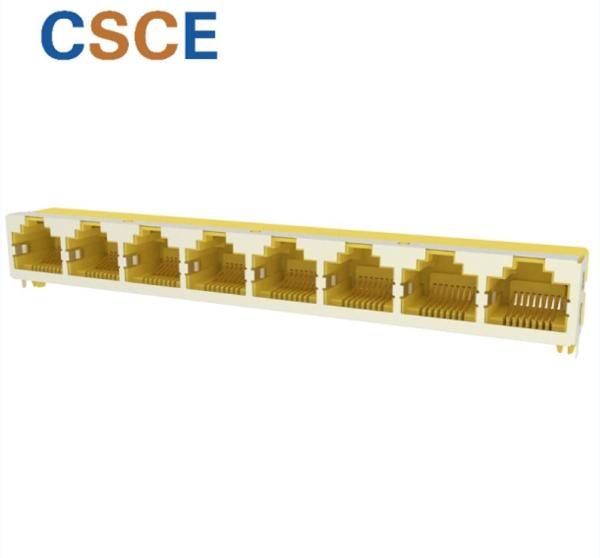

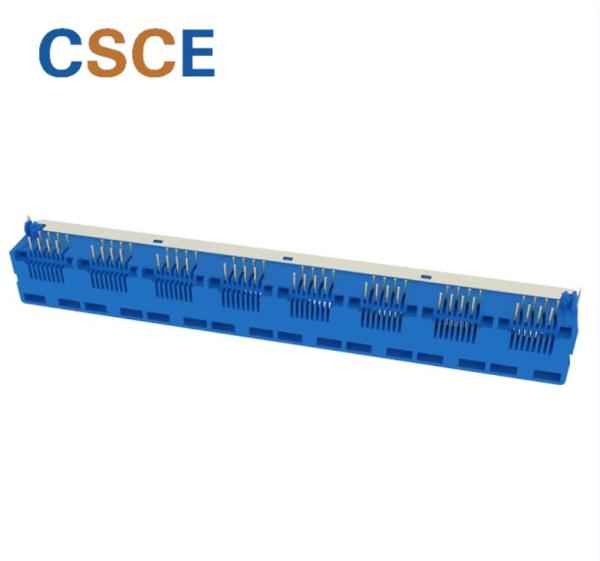

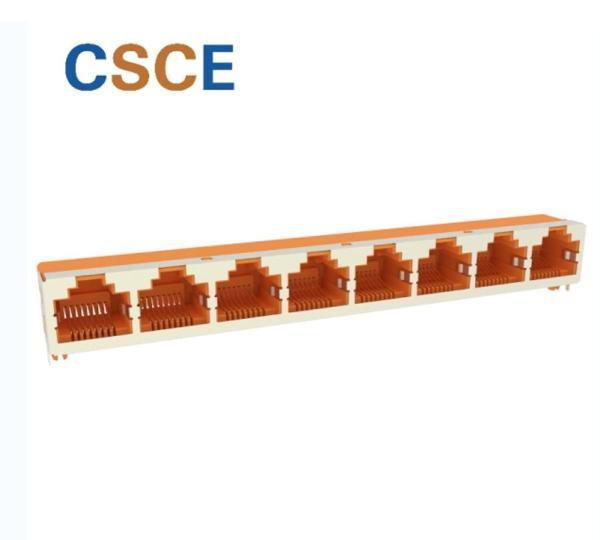

1x8 8P8C rj45 network connector modular jack with 8 ports for computer
Product Details:
Specification: | RJ45 Multi Port | Cross Part NO: | 56A-38882211X01 |
Mounting: | Thru-hole R/A | Samples: | Available 2-3 Pcs |
Product Description:
Retention Strength | 7.7KG.F MIN Between Jack And Plug |
Operating Life | 750 Cycles MIN. |
Withstand Voltage | 1000V AC 50Hz or 60Hz,1MIN. |
Storage Temperature | -40℃ to +85℃ |
Insert Material | UL94V-0 |
Mating/Unmating Force | 2.2KG.F MAX. |
Operation Temperature | -40℃ to +85℃ |
Current Rating | 1.5A |
Contact Resistance | 30milliohm Max |
Insulation Resistance | 500 MΩ MIN @ 500V DC. |
Contact Material | DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze |
Voltage Rating | 125v AC |
What's the Price?
Some part's price is unstable according to the market, please feel free to contact us for the Latest and Best price.
What's the Payment Method?
1. TT/LC/DP/DA/Paypal/Western Union/Money Gram
2. The buyer is responsible for all the shipping cost incurred.
3. If you prefer to other payment terms, please contact us.
CSCE Corporate Policy
• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction
Through Continuous Improvements In Quality, Delivery And Service
• CSCE Is Committed To And Expects Quality Performance From Every Employee
• The Company Standard Is Defect-Free Products And Services.
About us
Established in Mar, 2005. Shenzhen CSCE Electronics Co,Ltd is a high-tech enterprise that specializes in the development design, production and sale of communication network connectors. The main products include RJ45, RJ11, RJ45+ TRANSFORMER, LAN-Transformer,USB, DC jack, HDMI,SFP ,PIN Header,Female Header,SATA,Antennas etc, The company acquired the ISO9001-2000 quality management system Certification, ISO14001 environmental management system and UL certification.
Our company have the factory in YueQing ,Shenzheng and JiangXi,with total plant area of 18,000㎡,and has over 500 employees.We have a strong R&D ability for new product, .equipment and manufacturing ability for mould. Meanwhile, advanced production equipment and quality testing equipment to make our products with reliable quality,competitive price, and in time delivery well-selling in both domestic and foreign markets,such as southeast Asia, Europe, America, Middle East etc. with our efforts, we built our own famous brand-CSCE and become world famous company's qualified suppliers,such as Hisense, Skyworth, T&W, HGTECH, JEZETEK, CIG, TwoWing, HUAWEI, TCL,FOXCONN ,TENDA ,PANASONIC ,NEC ,HUMAX and so on …
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive.
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment.
Q3: When can I get the price?
A3:Usually we quote within 24 hours after we get your inquiry.
Q4: How could I get a sample?
A4: If you can not buy our product in your local area, we will ship a sample to you.You will be charged a sample price plus all related shipping costs.Express delivery charge depends on the quantity of the samples.
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies.

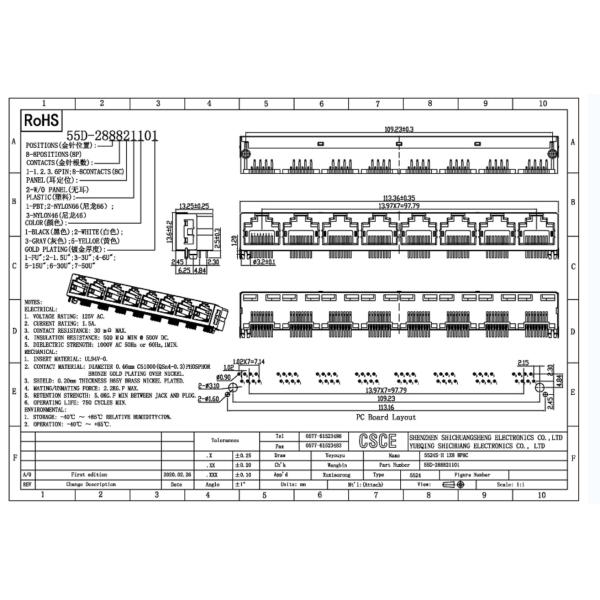

Product Drawing
