Specifications
Brand Name :
CSCE
Model Number :
59A-31880501211X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Pin :
8pin
Rated voltage :
125V
Business type :
Manufacturer
Rated current :
1.5A
Operating temperature :
-40℃ to 85℃
Durability :
800 mating cycles min
Description

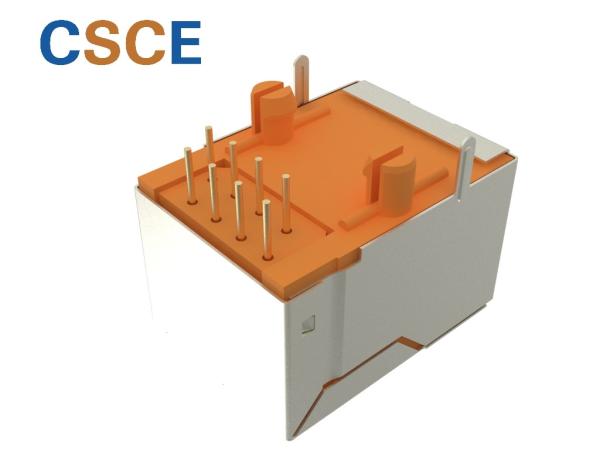

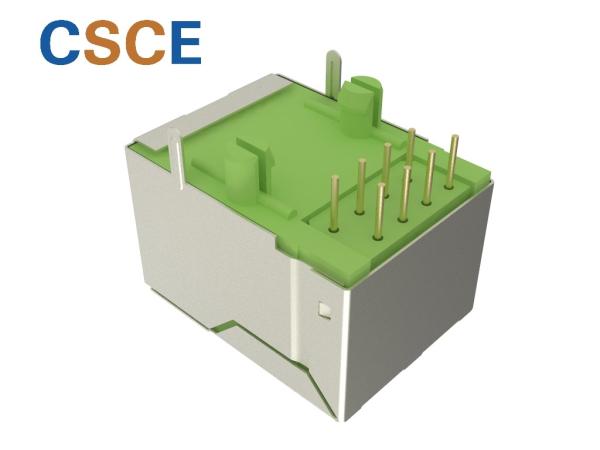

8P8C F4.75 RJ45 Connector RJ45 Network Ethernet Female Socket Connectors

Quick Details:

Specification: RJ45 Single port Cross Part NO: 59A-31880501211X01
LED: Without Samples: Available 2-3 Pcs
Latch: Tab up Connector: RJ45

Product Details:

Current Rating 1.5A
Voltage Rating 125V AC
Contact Material

Diameter 0.46mm C51000(QSn4-0.3) Phosphor

Bronzr Gold Plating Over Nickel

Contact Resistance 30milliohm Max
Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
Insulation Resistance 500 MΩ MIN @ 500V DC.
Insert Material UL94V-0
Mating/Unmating Force 2.2KG.F MAX.
Retention Strength 7.7KG.F MIN Between Jack And Plug
Operating Life 750 Cycles MIN.
Operation Temperature -40℃ to +85℃
Storage Temperature -40℃ to +85℃

About us

CSCE Technologies is a professional manufacturer and supplier served in design, production, sale and distribution of more than 1000+ high quality fiber optic products for global optical communication, with its headquarter in Zhejiang, China.

With our advanced production facilities and experienced engineering team who are mostly background from worldwide leading companies for years in the fiber optic field, it ensures us the excellent quality products under the fast delivery, and provides our customers the most suitable solution for their unique project application.

At CSCE, we keep thinking how to serve better and exceed our customers' needs with understanding they are the essential of our success. CSCE is serving our global clients through China local team and global local partners for global communication network market. We are expecting to work with you for a win-win ahead.

Factory

• We have over 3000 workers.

• The area of Yueqing is 1800,000 square meters.

• Yueqing Shichuang Electronics Co.,Ltd have owns 3 factory in Yueqing,Shenzhen,Jiangxi.

Quality

• Lean production management.

• 100% Tested (Not Just Batch Tested).

• Quality Guarantee:5 Years.

Certification

• ISO 9001:2000,

• ISO14001

• Active Environmental Policy.

Have R&D dept

• OEM Service Offered, Design Service Offered.

• Engineer Can Design Products As You Need,Developer Tooling As Customer Require.

FAQ

*Q: Can I get samples from you?

A: We are honored to offer you samples for quality check.

*Q: What parts are manufactured by you?

A: All of frame parts are manufactured by us.

*Q: What's the leading time? (How long do you need to prepare my goods?)

A: 5 days for sample orders. 15 days for mass production orders (based on different quantities)

*Q: How long do I need to wait before my goods arrive?

A: 3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.

Product Drawing

F4.75 RJ45 Network Ethernet Female Socket Connector Environmental
