Specifications
Brand Name :
CSCE
Model Number :
59A-36880521211X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Business type :
Manufacturer
Contact material :
Phosphor bronze 0.46mm
Shielding :
Shielded
Voltage rating :
125vac
Current rating :
1.5 AMP
Contact :
8C
Description

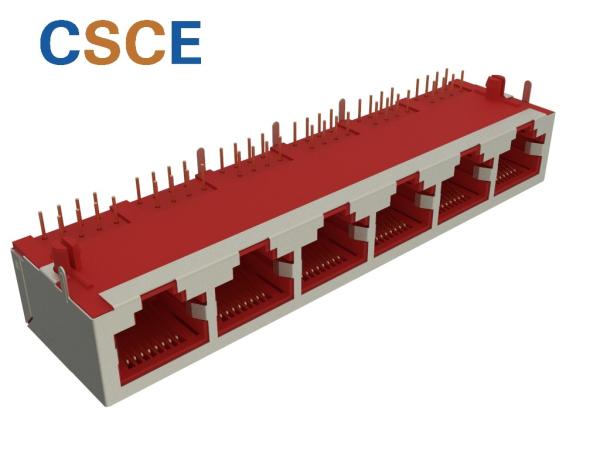

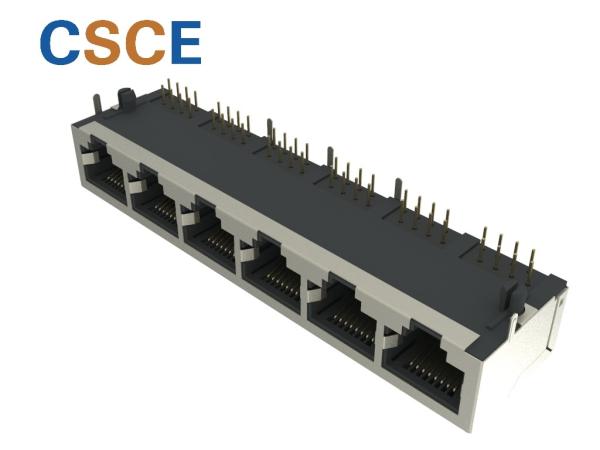

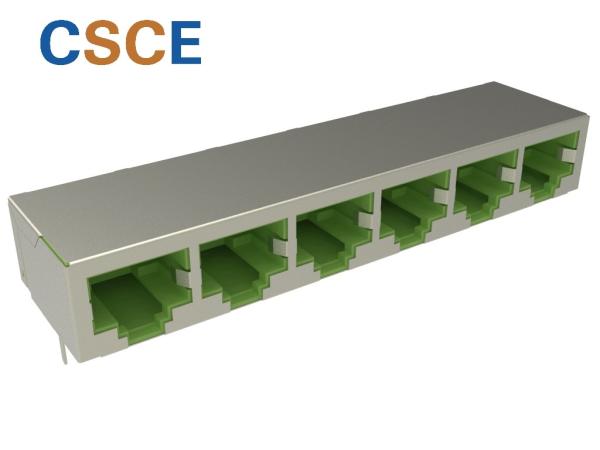

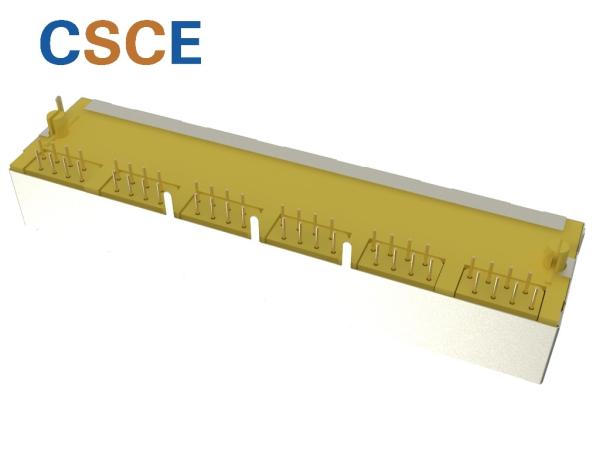

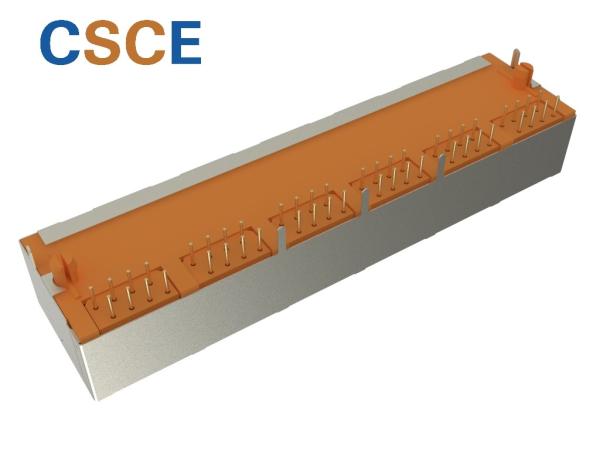

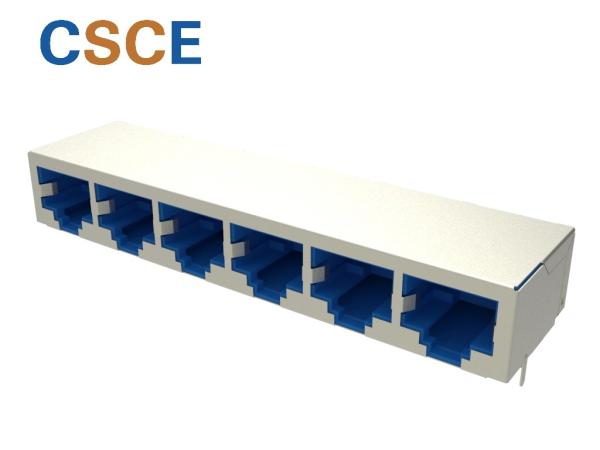

RJ45 Female Connector 8P8C RJ45 Connector Female Jack Ethernet RJ45 Connector

Product Specification:

Specification: RJ45 Shielded Jack Cross Part NO: 59A-36880521211X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

Current Rating 1.5A
Voltage Rating 125v
Contact Resistance 30milliohm Max
Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
Insulation Resistance 500 MΩ MIN @ 500V DC.
Mating/Unmating Force 2.2KG.F MAX.
Retention Strength 7.7KG.F MIN Between Jack And Plug
Operating Life 750 Cycles MIN.
Operation Temperature -40℃ to +85℃
Storage Temperature -40℃ to +85℃
Insert Material UL94V-0
Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
Shield 0.20mm Thichness H65Y Brass Nickel Plated

Why Choose us


The company insists on the quality policy of "people-foremost,Customer-oriented. Continuous Improvement, lasting management ".And take the business theory of "take the market as the guidance, take the talented person as the cornerstone, take the technology as the core, take the quality as the life".To provide the best service for our customers.

We care about our valued customers and understand the concerns and frustrations you might have, and will try our best to resolve the issues.. We strive to answer all emails as quickly as possible, but due to high email volume it may take time for us to reply. Thanks in advance for your patience!

Contact us first before leaving a negative, we will find a solution to meet your requirement and enhance the satisfaction.

Why choice CSCE


1. Almost 14 years experience in electronic components area.
2. All new&original goods are offered 360 days warranty.
3.100% QC inspection,best production capability ,best quality control, Best Service , competitive price.
4. A variety of channels to satisfy various demands including military and industrial product.
5. Sufficient stock on your urgent demand.
6. Timely reply within 2 hours during working time.

What CSCE Do


1. Yueqing Shichuang Electronic Co., Ltd is a reliable and professional electronic components supplier.
2. We will be No.1 in this field.
3. We are with great passion of it.
4. We know, pays certainly can have the repayment.
5. We can surpass our competitors by achieving it.
6. Our customers will trust us and make long-term cooperation with us.

FAQ

Q1: Are you a factory or trading company?
A1: We are a manufacturer.


Q2: Where is your factory located?
A2: Our factory are located in Yueqing city,and our company are located in Shenzhen city.

Q3. Could i have a visit to your factory?

A3: Welcomed. If you go to our factory, you will get the most warm reception. Outside of business, we can be friends.

Q4: May I buy samples from you?
A4: Yes! You are welcome to place sample order to test our superior quality and services.

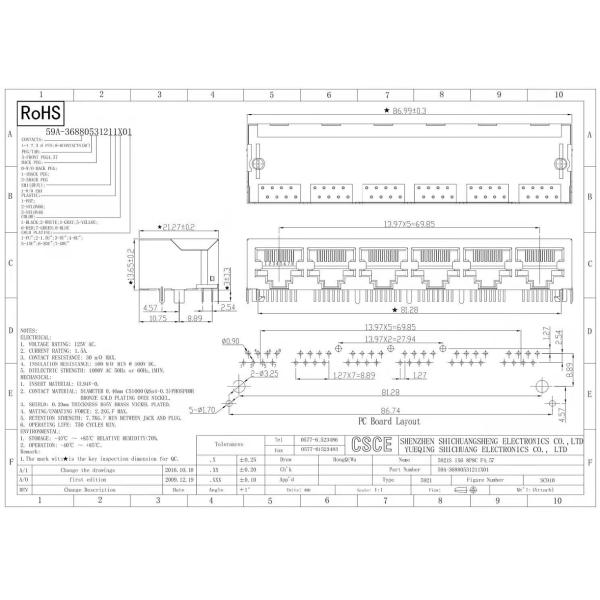

Product Drawing

Phosphor Bronze  0.46mm Shielded RJ45 Jack Female Ethernet Connector Thru - Hole R/A
