Specifications
Brand Name :
CSCE
Model Number :
SUSB-1BAF03-022ZK
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Pin :
4pin
Type :
USB
Shielding shell plating :
Nickel
Voltage rating :
30V max
Gender :
male and female
Product name :
female USB connector PCB mount socket
Color :
Black
Keywords :
usb type-c connector
Description

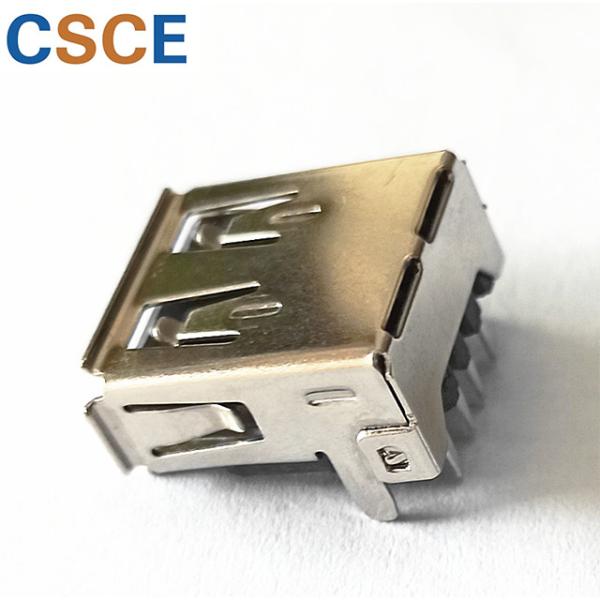

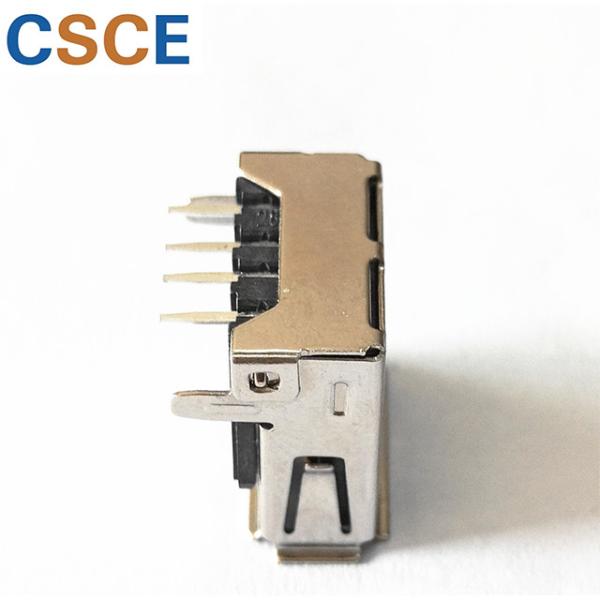

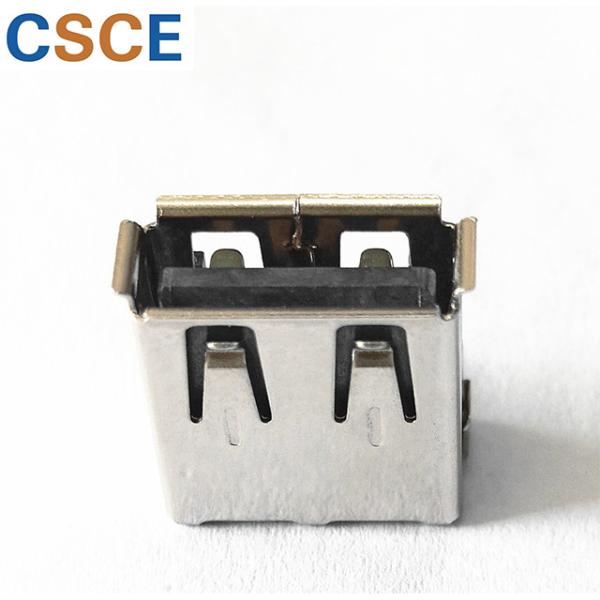

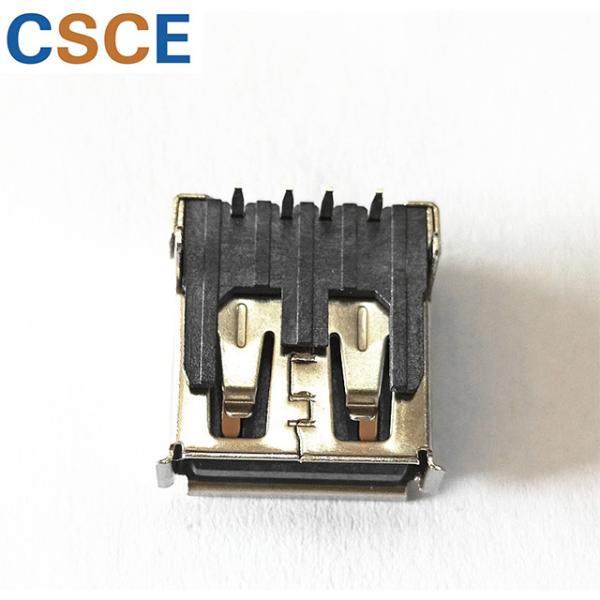

USB Male Female Connector USB 2.0 AF Type DIP Connector 90 degrees With Curls

Competitive Advantage:

CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.

Quick Details:

Specification: USB Connector Cross Part NO: SUSB-1BAF03-022ZK
Shell: Nickel Plating Samples: Available 2-3 Pcs

Product Description:

Current Rating 1.5A
Voltage Rating 30V DC
Contact Resistance 30Milliohms MAX
Dielectric Withstanding Voltage 500 V AC At Sea Levol
Finish Shell Nickel Plating
Finish Contact

Piated Gold in Mating Area

Tin On Solder Talls

Material Housing

Hing Temperature Tnermaplastics

UL94V-0 LCP Black

Mate Force 3.57 kgf (MAX)
Unmate Force 1.02 kgf (MIN)
Terminal Retenion 1.2 kgf (MIN0
Lusulation Resistance 1000 MEGA ohms MIN
Material Contact Copper Alloy C2680
Material Shell Copper Alloy C2680

Why choose us

  1. Have a strong research and development ability for a new product
  2. Equipment and manufacturing ability for would
  3. Competitive price , and in time delivery well-selling in both domestic and foreign markets.
  4. Acquired the ISO9001-2000 quality management system certification , ISO14001 environmental management system and UL certification .
  5. Reasonable prices, very competitive and reliable.
  6. Excellent sales team and tech team ready to serve you.
  7. Fast delivery.
  8. OEM services with agreed quantity by both parties.
  9. Specializes in the development , design , production and sale of communication network connectors .
  10. We hope to make long term business cooperation with all our customers.

14 Years Experience

Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.

OEM Services

For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.

Production Ability

The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

Our Team

We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.

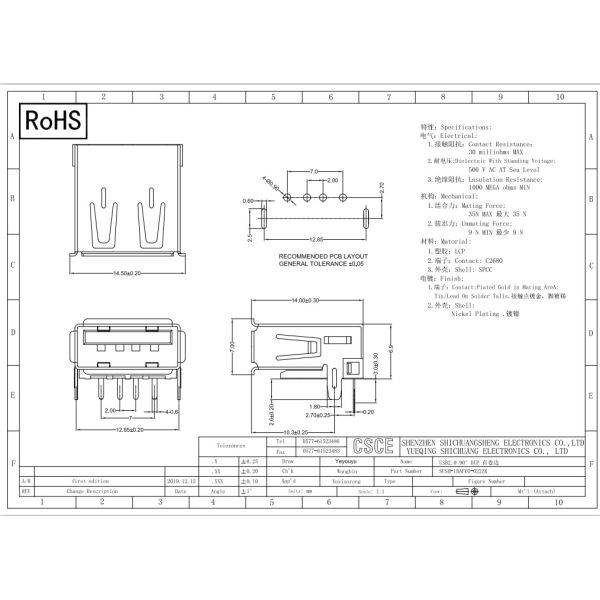

Product Drawing:

90 Degree AF Type USB Male Female Connector With Curls
