2 * 8 Port Magnetic RJ45 Jack Female Contact / Shield Material Copper Alloy
2 * 8 Port Magnetic RJ45 Jack Female Contact / Shield Material Copper Alloy
2 * 8 Port Magnetic RJ45 Jack Female Contact / Shield Material Copper Alloy
2 * 8 Port Magnetic RJ45 Jack Female Contact / Shield Material Copper Alloy
Specifications
Brand Name :
CSCE
Model Number :
SC1019-S59 (190-14)
Certification :
ROHS UL CEM
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Gender :
Female
Type :
RJ45
Application :
PCB
Shielding :
Shielded
Rated voltage :
125VAC
Description

2*8 Port Shielded With Leds Magnetic RJ45 Jack CSCE-SC1019-S59 Series

Product application:

Free for network and communication device sas HUB, PC card, switch, router, PC board, SDH, PDH, IP phone, x DSL modem, call center solution, call set-top box, VOIP gateway, setup protocol gateway, fast Ethernet switch .

Product Details:

Material Housing Thermoplastic,PBT,UL94V-0,Black
Material Contact/Shield Copper Alloy
Material Shield Plating Nickel
Material Contact Plating Selective gold 6u'' Min
Turn Ratio(+/-2%) 1CT:1CT
DCR 1.2OHM Max
Inductance OCL 350uH Min @100KHz/0.1V DC Bias 8mA
Insertion Loss -1.0dB Max @1.0-100MHz
-1.2dB Max @100-125MHz
Return Loss -20dB Min @1-30MHz
-16dB Min@30-60MHz
-12dB Min @60-80MHz
-10dB Min @80-100MHz
Cross Talk -40dB Min @1-30MHz
-35dB Min @30-60MHz
-30dB Min @60-100MHz
Storage Temperature -40℃-+80℃
Common Mode Rejection -30dB Min @1-50 MHz
-20dB Min @50-150 MHz
Hipot Test 1500Vrms 1mA Max

Product Specification:

Specification: Magnetic RJ45 Jack Cross Part NO: SC1019-S59(190-14)
Latch: Tab Down Samples: Available 2-3 Pcs

Our service:

1. More than 14 years experience in Connector industry, provide drawing or send sample to us, then we will send you our drawing or sample for you approval;

2. 100% tested before shipping out to guarantee the best quality;

3. OEM available

5. Fast delivery time, Best production capacity, Best price;

6. All your needed certificates we can provide;

7. ROHS compliant;

8. Small order are available.

Features:


1. All materials comply with ROHS
2. High-wearing feature
5. OEM & ODM are both available.
6. Quality Assurance, 36 months warranty.
7. Riveting machine was invented by us.
8. We do lots of research and development in these area, if you meet any difficulties, feel free to contact us.

Our advantage:

1. Competitive price advantage helps to save your purchase cost and your precious time.
We wholesale and distribute new,original &famous brand Electronic Components all over the world.


2. Own the international advanced testing equipment of electronic components and scientific storage system to ensure the quality stability.


3. Excellent elite team, more than 14 years seniority, and a good understanding of international market trends.

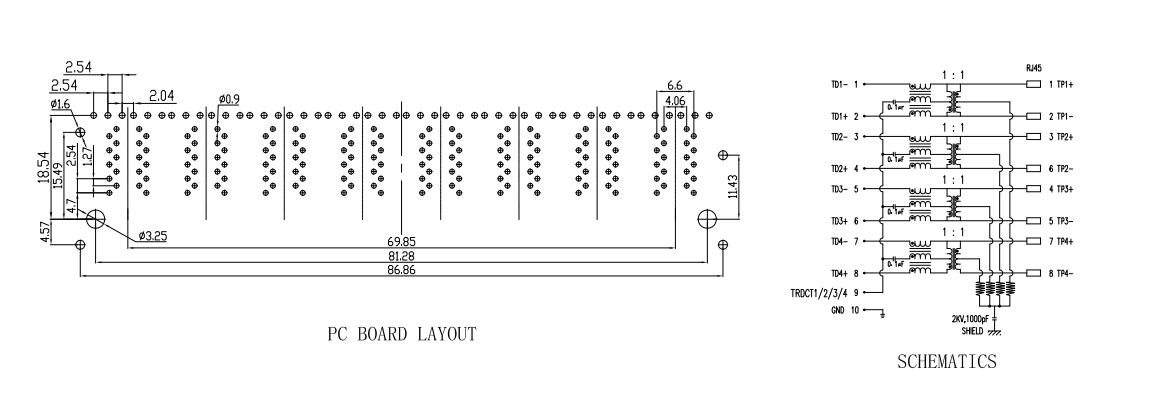

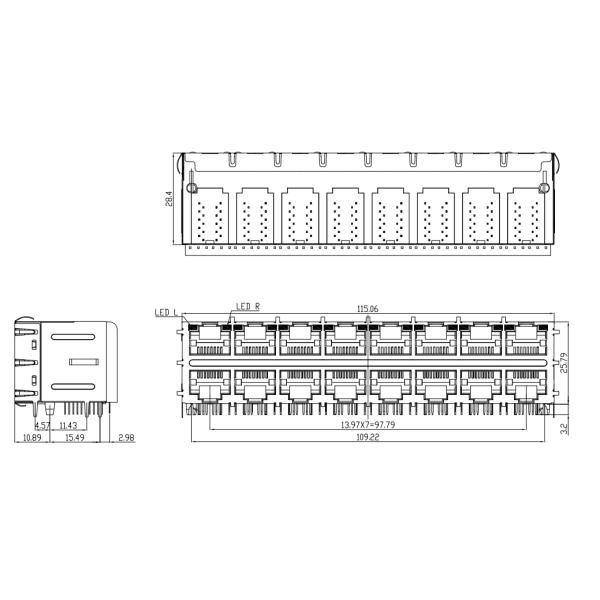

Product Drawing:


2 * 8 Port Magnetic RJ45 Jack Female Contact / Shield Material Copper Alloy

2 * 8 Port Magnetic RJ45 Jack Female Contact / Shield Material Copper Alloy
