W / PEG Ethernet Magnetic RJ45 Jack 2 * 2 Port Nickel Shield Plating Material With Leds
W / PEG Ethernet Magnetic RJ45 Jack 2 * 2 Port Nickel Shield Plating Material With Leds
W / PEG Ethernet Magnetic RJ45 Jack 2 * 2 Port Nickel Shield Plating Material With Leds
W / PEG Ethernet Magnetic RJ45 Jack 2 * 2 Port Nickel Shield Plating Material With Leds
Specifications
Brand Name :
CSCE
Model Number :
SC1016-S59 (311-12)
Certification :
ROHS UL CEM
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Gender :
Female
name :
Magnetic RJ45 Jack
Application :
PCB
Shielding :
Shielded
Rated voltage :
125VAC
Description

W/PEG 2*2 Port Ethernet Magnetic RJ45 Jack With Leds Shielded

Features:


1. All materials comply with ROHS
2. High-wearing feature
3. OEM & ODM are both available.
4. Quality Assurance, 36 months warranty.
5. Riveting machine was invented by us.
6. We do lots of research and development in these area, if you meet any difficulties, feel free to contact us.

Product Details:

Material Housing Thermoplastic,PBT,UL94V-0,Black
Material Contact/Shield Copper Alloy
Material Shield Plating Nickel
Material Contact Plating Selective gold 6u'' Min
Turn Ratio(+/-2%) 1CT:1CT
DCR 1.2OHM Max
Inductance OCL 350uH Min @100KHz/0.1V DC Bias 8mA
Insertion Loss -1.0dB Max @1.0-100MHz
-1.2dB Max @100-125MHz
Return Loss -20dB Min @1-30MHz
-16dB Min@30-60MHz
-12dB Min @60-80MHz
-10dB Min @80-100MHz
Cross Talk -40dB Min @1-30MHz
-35dB Min @30-60MHz
-30dB Min @60-100MHz
Storage Temperature -40℃-+80℃
Common Mode Rejection -30dB Min @1-50 MHz
-20dB Min @50-150 MHz
Hipot Test 1500Vrms 1mA Max

Product Specification:

Specification: Magnetic RJ45 Jack Cross Part NO: SC1016-S59(311-12)
Latch: Tab Down Samples: Available 2-3 Pcs

Production Ability:

The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

Competitive Advantage:

CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.

FAQ:

*Q:Can I get samples from you?

A:We are honored to offer you samples for quality check.

*Q:What parts are manufactured by you?

A:All of frame parts are manufactured by us.

*Q:What's the leading time? (How long do you need to prepare my goods?)

A:5 days for sample orders. 15 days for mass production orders (based on different quantities)

*Q:How long do I need to wait before my goods arrive?

A:3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.

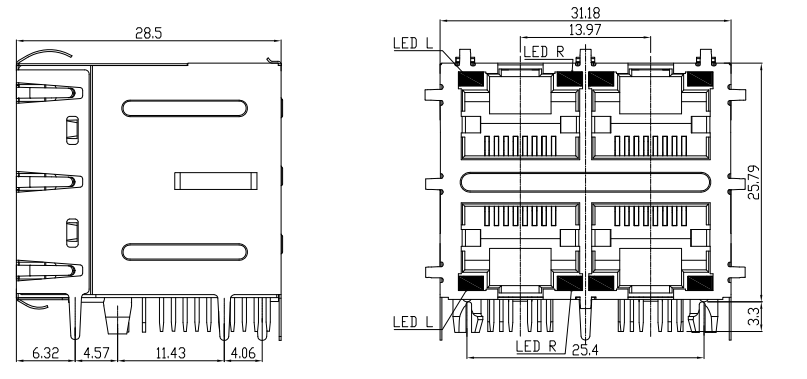

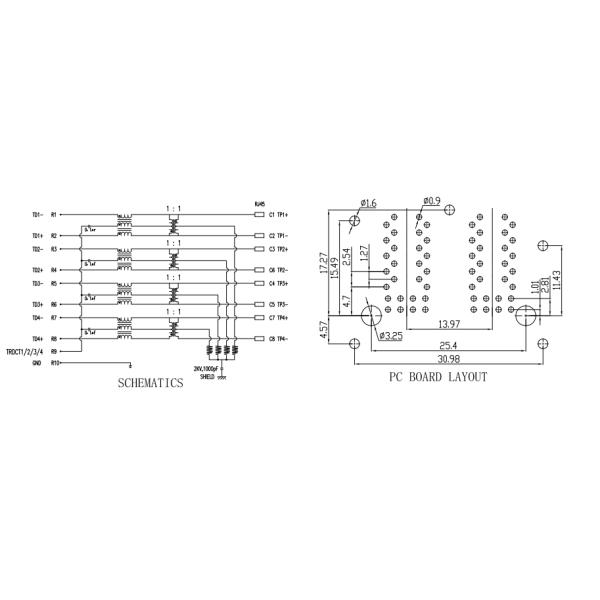

Product Drawing:

W / PEG Ethernet Magnetic RJ45 Jack 2 * 2 Port Nickel Shield Plating Material With LedsW / PEG Ethernet Magnetic RJ45 Jack 2 * 2 Port Nickel Shield Plating Material With Leds
