Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
Specifications
Brand Name :
CSCE
Model Number :
56A-21880011X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
RJ45
Product name :
RJ45 Single Port
Pin :
8pin
Rated voltage :
125V
Rated current :
1.5A
Operating temperature :
-40℃ to 85℃
Description
56A-21880011X01 half shielded RJ45 Single Port 8P8C 1 Port RJ45 Connector Right Angle

Features :


1. All materials comply with ROHS
2. High-wearing feature
3. OEM & ODM are both available.
4. Quality Assurance, 36 months warranty.
5. Riveting machine was invented by us.
6. We do lots of research and development in these area, if you meet any difficulties, feel free to contact us.

Quick Details:

Specification: Single port RJ45 Cross Part NO: 56A-21880011X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs

Product Description:

Retention Strength 7.7KG.F MIN Between Jack And Plug
Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
Insulation Resistance 500 MΩ MIN @ 500V DC.
Housing Material PBT/PA66/PA46
Mating/Unmating Force 2.2KG.F MAX.
Voltage Rating 125v
Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
Operating Life 750 Cycles MIN.
Current Rating 1.5A
Insert Material UL94V-0
Contact Resistance 30milliohm Max
Operation Temperature ﹣40℃ to +85℃
Storage Temperature ﹣40℃ to +85℃

FAQ

*Q: Can I get samples from you?

A: We are honored to offer you samples for quality check.

*Q: What parts are manufactured by you?

A: All of frame parts are manufactured by us.

*Q: What's the leading time? (How long do you need to prepare my goods?)

A: 5 days for sample orders. 15 days for mass production orders (based on different quantities)

*Q: How long do I need to wait before my goods arrive?

A: 3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.

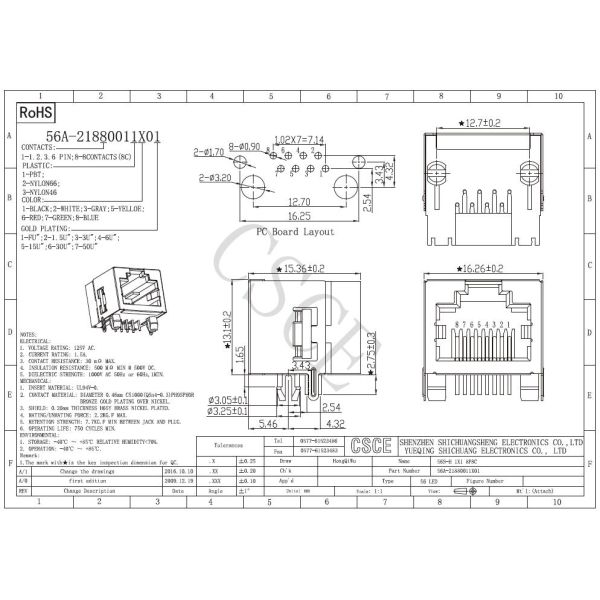

Product Drawing:

Half Shielded RJ45 Single Port 8P8C Right Angle Blue / Yellow / Black Color
