Unshielded Hook RJ45 Multi Port / 4 Port RJ45 Contact Resistance 30 Milliohm Max
Unshielded Hook RJ45 Multi Port / 4 Port RJ45 Contact Resistance 30 Milliohm Max
Unshielded Hook RJ45 Multi Port / 4 Port RJ45 Contact Resistance 30 Milliohm Max
Unshielded Hook RJ45 Multi Port / 4 Port RJ45 Contact Resistance 30 Milliohm Max
Unshielded Hook RJ45 Multi Port / 4 Port RJ45 Contact Resistance 30 Milliohm Max
Unshielded Hook RJ45 Multi Port / 4 Port RJ45 Contact Resistance 30 Milliohm Max
Specifications
Brand Name :
CSCE
Model Number :
52B-488121X01
Certification :
ISO9001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
name :
4 Port RJ45
Material :
PBT PA66 PA46
Pin :
8P8C
Operating temperature :
-40℃ to 85℃
Rated voltage :
125V
Description
5225 Series 1x4 Multi Port RJ45 Unshielded With Hook Female RJ45 Connector

Product Specification:

Specification: Multiple-port RJ45 Cross Part NO: 52B-488121X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material PBT/PA66/PA46
12. Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"

Competitive Advantage:

CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We will asap reply with in 24h.

Competitive Price And Service

• Provide New Design For Customer Requirements

• Delivery Time:2-3 Weeks After Orders

• Free Samples Are Available

Competitive Advantage

14 years production experience,

3000 staff,

100% test

Flexible delivery time

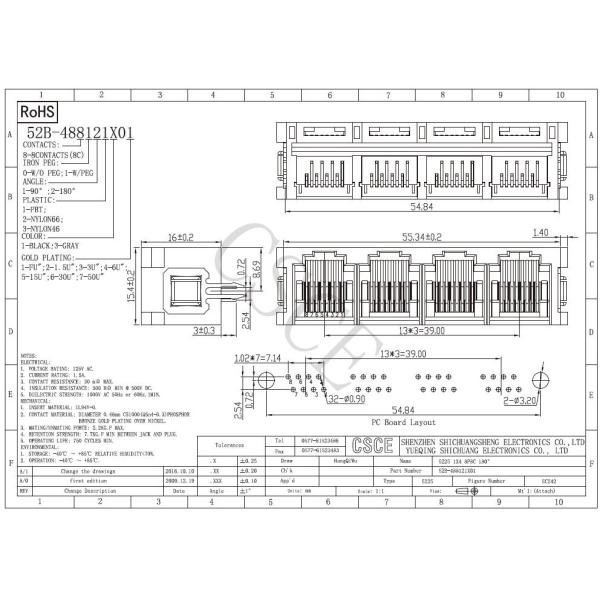

Product Drawing:

Unshielded Hook RJ45 Multi Port / 4 Port RJ45 Contact Resistance 30 Milliohm Max
