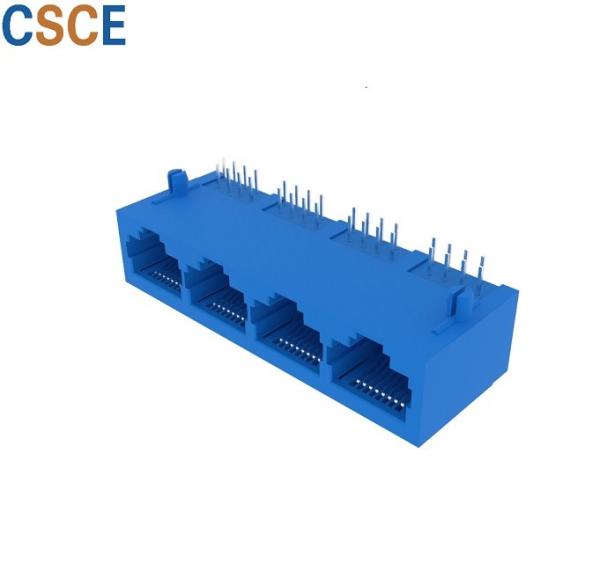

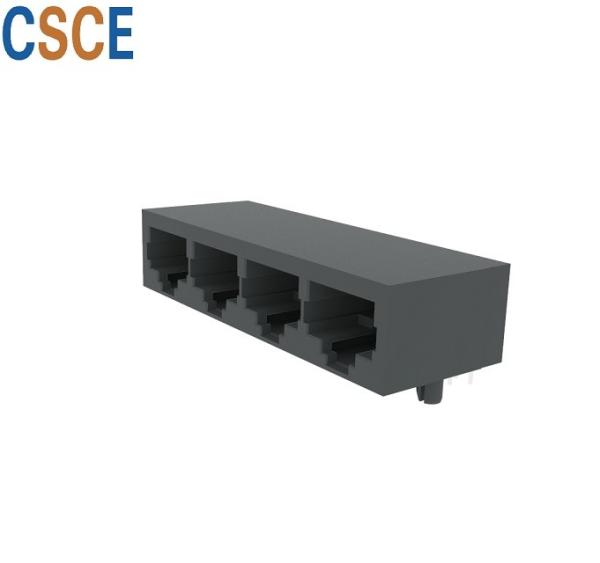

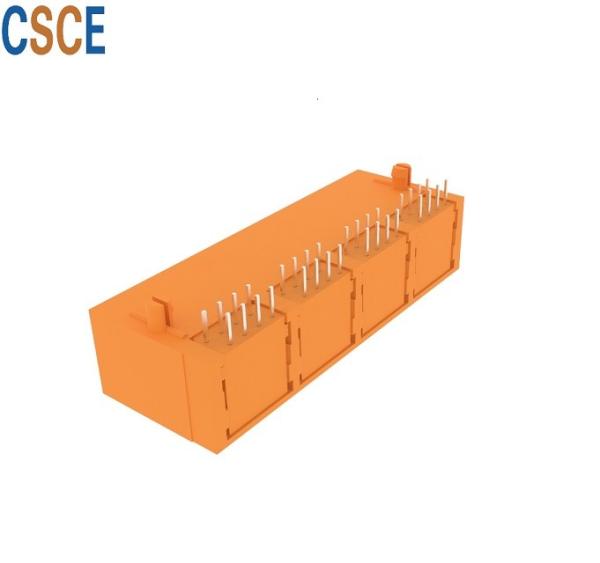

5921 Series Flat Pin RJ45 Multi Port 4 Ports Tab Up 8 Pin 8 Contacts With Registration Mast
5921 Series Flat Pin RJ45 Multi Port 4 Ports Tab Up 8 Pin 8 Contacts With Registration Mast
5921 Series Flat Pin RJ45 Multi Port 4 Ports Tab Up 8 Pin 8 Contacts With Registration Mast
5921 Series Flat Pin RJ45 Multi Port 4 Ports Tab Up 8 Pin 8 Contacts With Registration Mast
5921 Series Flat Pin RJ45 Multi Port 4 Ports Tab Up 8 Pin 8 Contacts With Registration Mast
5921 Series Flat Pin RJ45 Multi Port 4 Ports Tab Up 8 Pin 8 Contacts With Registration Mast
Specifications
Brand Name :
CSCE
Model Number :
59A-14880002211X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Gender :
Female
Type :
RJ45
Pin :
8pin
Rated voltage :
125VAC
Operating temperature :
-40℃ to 85℃
Product name :
Multi Ports rj45
Description
5921 Series Falt Pin RJ45 Multi Port 4 Ports Tab Up 8Pin 8Contacts Without Leds With Registration Mast

Product application:

Products are widely used in radio, television, remote sensing toys, mobile communication, wireless Internet access, logistics express tracking services, etc..

Product Specification:

Specification: RJ45 Multi Port Cross Part NO: 59A-14880002211X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material LCP
12. Contact Material Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Qualtiy

• Manufactured Under Strict Controls.

• 100% Tested (Not Just Batch Tested)

• CSCE Is OEM Of TE (Tyco) For 10 Years

• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

• Quality Guarantee:20 Years

Our Services

Factory price

• Own production workers, production equipment and engineering technology team

• New original with low and discount price

Safe & Quality Reliability

• Quality insurance system for superb product quality

• On Time, Every Time provision of Quality Components.

Customer Friendly Services

• One stop solution personalised to your unique requirements.

• Support in many Languages website, more convenience & fast services.

FAQ:


Q: Can I get samples for free?
A: Of course, you can get 3-5 samples and you will need to pay for the sample shipping.

Q: How long is your delivery time?
A: 5-7 days, such as inventory, normal delivery 2-3 weeks

Q: What are your payment terms?
A: TT/LC/DP/DA/PayPal/Western Union/Currency

Q: What is the way you transport the goods?
A: DHL UPS DEDEX or TNT shipping costs reduced by 90%

Product Drawing:

5921 Series Flat Pin RJ45 Multi Port 4 Ports Tab Up 8 Pin 8 Contacts With Registration Mast
