8P8C Unshielded 1×5 Multiple-Port RJ45 Connector For Ethernet Switch
8P8C Unshielded 1×5 Multiple-Port RJ45 Connector For Ethernet Switch
8P8C Unshielded 1×5 Multiple-Port RJ45 Connector For Ethernet Switch
8P8C Unshielded 1×5 Multiple-Port RJ45 Connector For Ethernet Switch
8P8C Unshielded 1×5 Multiple-Port RJ45 Connector For Ethernet Switch
8P8C Unshielded 1×5 Multiple-Port RJ45 Connector For Ethernet Switch
Specifications
Brand Name :
CSCE
Model Number :
56A-15880011X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
RJ45
Material :
UL94V-0
Color :
Black
Keywords :
multi-port rj45 connector
Operating temperature :
-40℃ to 85℃
Rated voltage :
125V
Description
8P8C Unshielded 1×5 Multiple-Port RJ45 Connector For Ethernet Switch

Product Details:

Specification: Multiple-port RJ45 Cross Part NO: 56A-15880011X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
LED: Without Files: PDF/3D/ISG/Stp/Step/Datashee

Product Specification:

Contact Resistance 30milliohm Max
Housing Material PBT/PA66/PA46
Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
Insulation Resistance 500 MΩ MIN @ 500V DC.
Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
Mating/Unmating Force 2.2KG.F MAX.
Voltage Rating 125v
Operating Life 750 Cycles MIN.
Current Rating 1.5A
Insert Material UL94V-0
Operation Temperature ﹣40℃ to +85℃
Retention Strength 7.7KG.F MIN Between Jack And Plug
Storage Temperature ﹣40℃ to +85℃

14Years Experience

Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.

OEM Services

For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.

Production Ability

The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

FAQ

*Q: Can I get samples from you?

A: We are honored to offer you samples for quality check.

*Q: What parts are manufactured by you?

A: All of frame parts are manufactured by us.

*Q: What's the leading time? (How long do you need to prepare my goods?)

A: 5 days for sample orders. 15 days for mass production orders (based on different quantities)

*Q: How long do I need to wait before my goods arrive?

A: 3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.

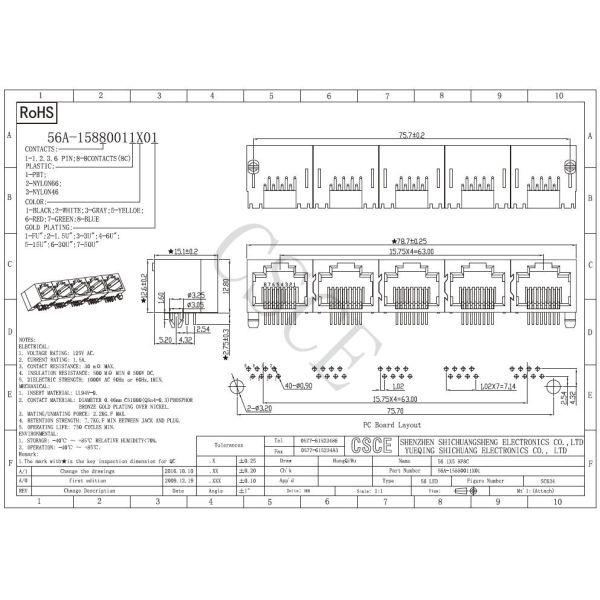

Product Drawing:

8P8C Unshielded 1×5 Multiple-Port RJ45 Connector For Ethernet Switch
