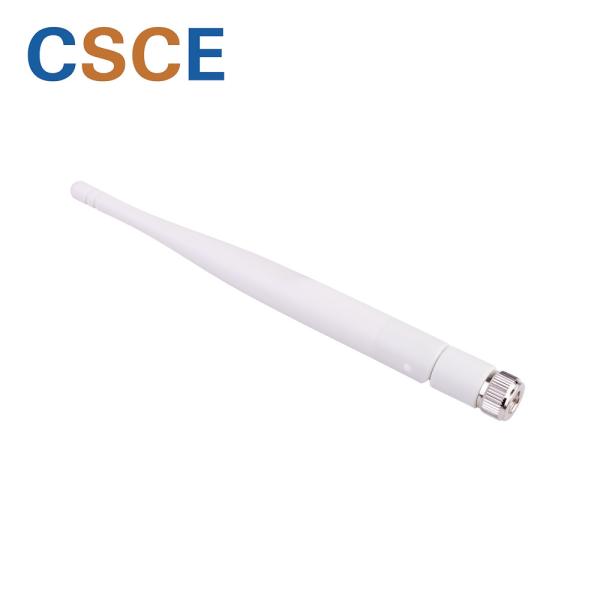

Fordable 3dbi Omni Directional Antenna Return Loss ≤-10dB Frequency Range 2.4-2.5GHz
Fordable 3dbi Omni Directional Antenna Return Loss ≤-10dB Frequency Range 2.4-2.5GHz
Fordable 3dbi Omni Directional Antenna Return Loss ≤-10dB Frequency Range 2.4-2.5GHz
Fordable 3dbi Omni Directional Antenna Return Loss ≤-10dB Frequency Range 2.4-2.5GHz
Specifications
Brand Name :
CSCE
Model Number :
SC3-SMAW000020
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
PE BAG in Carton
Connector :
SMA
Vswr :
≤2.0
Gain :
3dbi
Impedance :
50Ω
Color :
white or customized
Storage Duration :
2 years
Description
Fordable 3dbi Omni Directional Antenna Return Loss ≤-10dB Frequency Range 2.4-2.5GHz

Product Specification:

Specification: Antennas Cross Part NO: SC3-SMAW000020
Mounting: SMA Samples: Available 2-3 Pcs

Product Description:

Impedance 50Ω
Storage Duration 2 Years
Return Loss ≤-10dB
Storage Temperature -40℃-+85℃
VSWR ≤2.0
Frequency Range 2.4-2.5GHz
Operating Temperature -40℃-+85℃
Gain 3dBI±0.5

FAQ

*Q: Can I get samples from you?

A: We are honored to offer you samples for quality check.

*Q: What parts are manufactured by you?

A: All of frame parts are manufactured by us.

*Q: What's the leading time? (How long do you need to prepare my goods?)

A: 5 days for sample orders. 15 days for mass production orders (based on different quantities)

*Q: How long do I need to wait before my goods arrive?

A: 3-5 days for international express. 5-7 days for air transportation, 15-30 days for sea transportation.

Why choose us

1. Reasonable prices, very competitive and reliable.

2. Excellent sales team and tech team ready to serve you.

3. Fast delivery.

4. OEM services with agreed quantity by both parties.

5. We hope to make long term business cooperation with all our customers.

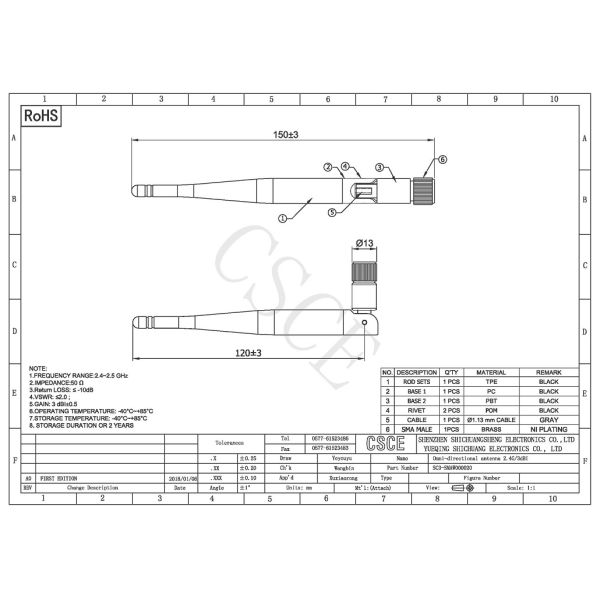

Product Drawing:

Fordable 3dbi Omni Directional Antenna Return Loss ≤-10dB Frequency Range 2.4-2.5GHz
