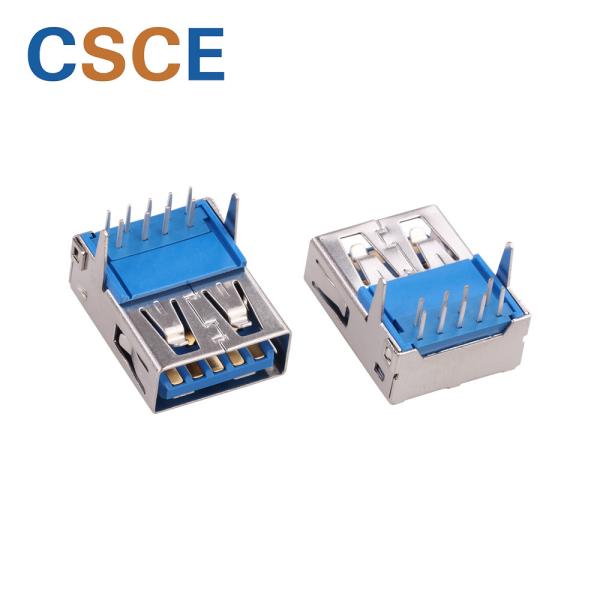

Type AF USB Male Female Connector 90 Degree For Charge And Data Transmission
Type AF USB Male Female Connector 90 Degree For Charge And Data Transmission
Type AF USB Male Female Connector 90 Degree For Charge And Data Transmission
Type AF USB Male Female Connector 90 Degree For Charge And Data Transmission
Specifications
Brand Name :
CSCE
Model Number :
SUSB-1U1X32-006
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
USB
Color :
Blue
Product name :
USB Male Female Connector
Material :
UL94-V0
Gender :
Female
Contact resistance :
<30mΩ
Description
Type AF USB 90 Degree Usb Connector For Charge And Data Transmission

Quick Details:

Specification: USB Connector Cross Part NO: SUSB-1U1X32-006
Shell: Copper Alloy Samples: Available 2-3 Pcs

Product Specification:

Contact Current Roting 1.8 Amperes For pin1&pin4
Dielectric Withstanding Voltage AC 100V (RMS)
Insulation Resistance 100Megohms Minimum
Contact Resistance

30mΩ Max For pin1&pin4
Moling Force 35 Newtorns,Minimum
Material Housing PBT+30%GF;UL94V-0
Material Contact Copper Alloy
Material Shell Brass
Plating Shell Nickel Plated
Operating Temperature -55℃ To +85℃
Colar Blue

Competitive Advantage:

CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.

Professional Certification

• ISO 9001:2008

• UL Certification

• Active Environmental Policy

Pre-sale service:

1. We try to do best communicate with every customer about all the questions and promptly

2. We provide pre-sale service in various forms, such as we can provide options for customer choose. So that customers can a reasonable plan with less cost.

In-sale service:

1. We do double check before the products sent out

2. We do choose the safe shipping

3. We do make sure you can get the products on time

After service:

1. We do follow up after you get the products

2. We will answer customer questions in time. If need, we can provide free guidance if customer need new rqquirements.

3. If we have new products, we can recommend you in advance, when you place the second order, we will happy to give you a discount.

Product Drawing:

Type AF USB Male Female Connector 90 Degree For Charge And Data Transmission
