Female RJ11 Modular Jack / RJ11 4P4C Connector Insulation Resistance 500 Megohms Min
Female RJ11 Modular Jack / RJ11 4P4C Connector Insulation Resistance 500 Megohms Min
Female RJ11 Modular Jack / RJ11 4P4C Connector Insulation Resistance 500 Megohms Min
Female RJ11 Modular Jack / RJ11 4P4C Connector Insulation Resistance 500 Megohms Min
Female RJ11 Modular Jack / RJ11 4P4C Connector Insulation Resistance 500 Megohms Min
Female RJ11 Modular Jack / RJ11 4P4C Connector Insulation Resistance 500 Megohms Min
Specifications
Brand Name :
CSCE
Model Number :
57A-144101X01
Certification :
CE,ISO14001,CE/RoHs/ISO9001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
rj11
Product name :
RJ11 Telephone Jack
Gender :
Female
Application :
Telephone Keystone Jack
Pin :
4P4C
Description

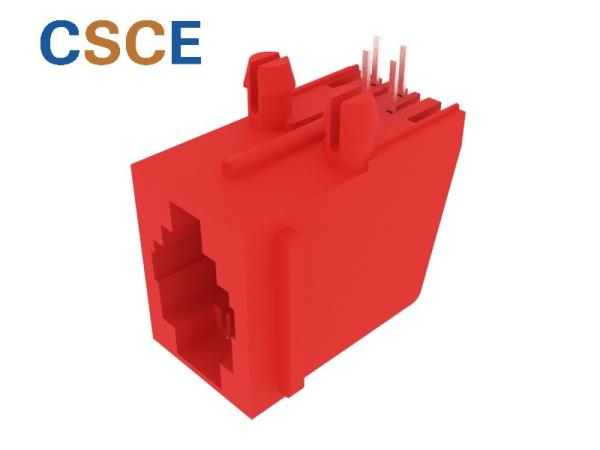

5721-E Series Unshielded 4P4C 1Port RJ11 Modular Jack PBT With Panel Stop

Product Details:

Voltage rating 125 VAC RMS
Current rating 1.5 AMP
Contact resistance 30 Milliohms max
Insulation resistance 500 Megohms min @ 500 VDC
Dielectric strength 1000 VAC rms 50Hz or 60Hz,1min
Insert material PBT UL94V-0
Contact material Phosphor bronze T=0.35mm
Plating Contact area-selective gold plating
Mating force 2.2KG.F max
Retention strength 7.7KG.F min between jack and plug
Operation life 600 Cycles min
Storage Temperature ﹣40℃ to +85℃
Operation Temperature ﹣40℃ to +85℃

Product Specification:

Specification: RJ11 Modular Jack Cross Part NO: 57A-144101X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs

CSCE of the principles

1. To care for health and safety of employees as corporate responsibility,all production activities must give priority to employee’s safety and health.

2. To control the production process effectively and abide by law and meet customer’s requirements.

3. Focus on customer’s normal needs, with high quality high efficiency management to provide high quality service and products.

4. Save resources,lower energy consumption. Reduce environmental pollution caused by production.

5. Abide by law.

Continuous improvement, sustainable operation.

Competitive Advantage
13years production experience,
300staff,
100% test
Flexible delivery time

FAQ

1. How can i get a sample?

A: just check with our sales.

2. How to develop a new product base on an idea?

A: Tell us what you want, Then we will design it for free.

3. How about OED,ODM?

A: 13years experiences in OEM,ODM.

4. How to reduce your risk?

A: Check the sample before order.

5. How about the after-sale service?

A: Just tell us the problem after you receive the products.

Then we’ll help you deal with it together.

Porduct Drawing:

Female RJ11 Modular Jack / RJ11 4P4C Connector Insulation Resistance 500 Megohms Min
