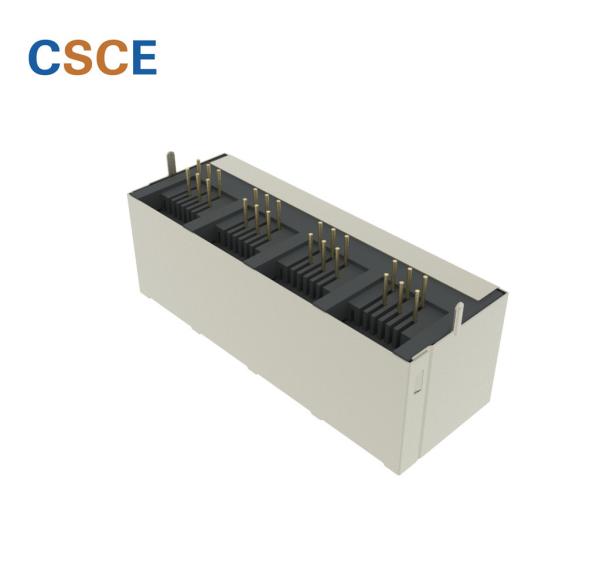

Full Shielded RJ11 Modular Jack 1 * 4 Port 6 Pins 6 Contacts Ni Plating Brass Shell
Full Shielded RJ11 Modular Jack 1 * 4 Port 6 Pins 6 Contacts Ni Plating Brass Shell
Full Shielded RJ11 Modular Jack 1 * 4 Port 6 Pins 6 Contacts Ni Plating Brass Shell
Full Shielded RJ11 Modular Jack 1 * 4 Port 6 Pins 6 Contacts Ni Plating Brass Shell
Full Shielded RJ11 Modular Jack 1 * 4 Port 6 Pins 6 Contacts Ni Plating Brass Shell
Full Shielded RJ11 Modular Jack 1 * 4 Port 6 Pins 6 Contacts Ni Plating Brass Shell
Specifications
Brand Name :
CSCE
Model Number :
52B-S-466111X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
RJ11
Material :
PBT
Operating temperature :
-40℃ to 85℃
Color :
Blak or As The Customer 'Request
Product name :
RJ11 Telephone Jack
Pin :
6p4c/6p2c/6p6c
Description
5225S Series 1*4 Multiple Port RJ11 Modular Jack Connector 6 Pins 6 Contacts Full Shielded



Product Specification:

Specification:Multiple-port RJ11Cross Part NO:52B-S-466111X01
Mounting:Thru-hole R/ASamples:Available 2-3 Pcs
Latch:Tab upFiles:PDF/3D/ISG/Stp/Step/Datasheet




Product Details:

1. Current Rating1.5A
2. Voltage Rating125v
3. Contact Resistance30milliohm Max
4. Withstand Voltage1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force2.2KG.F MAX.
7. Retention Strength7.7KG.F MIN Between Jack And Plug
8. Operating Life750 Cycles MIN.
9. Operation Temperature﹣40℃ to +85℃
10. Storage Temperature﹣40℃ to +85℃
11. Housing MaterialPBT/PA66/PA46
12. Contact MaterialDiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area PlatingGold/3u"/6u"/15u"/30u"
14. Shell MaterialBrass
15. Shell PlatingNi Plating




Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers


14 Years Experience

Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.


OEM Services

For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.


Production Ability

The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.


Our Team

We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.


Competitive Advantage:

CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.

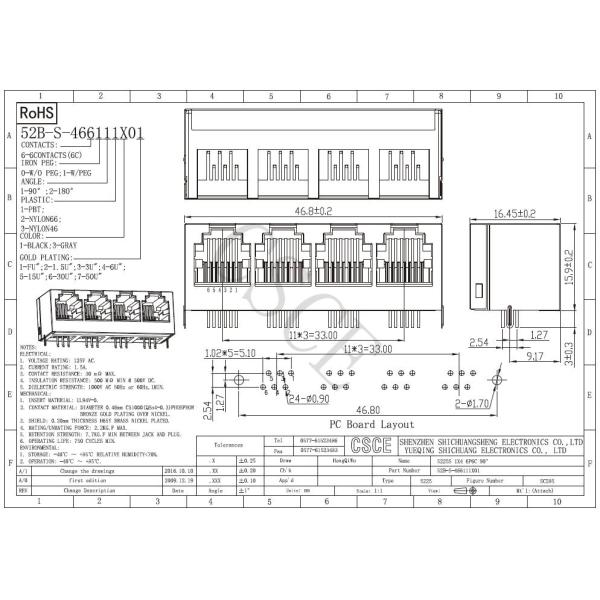

Product Drawing:

Full Shielded RJ11 Modular Jack 1 * 4 Port 6 Pins 6 Contacts Ni Plating Brass Shell
