Specifications
Brand Name :
CSCE
Model Number :
57A-166211X01
Certification :
CE,ISO14001,CE/RoHs/ISO9001
Place of Origin :
Shenzhen , China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
rj11
Application :
Networking
Product name :
RJ11 Telephone Jack
Connector type :
RJ11
Gender :
Female
Description

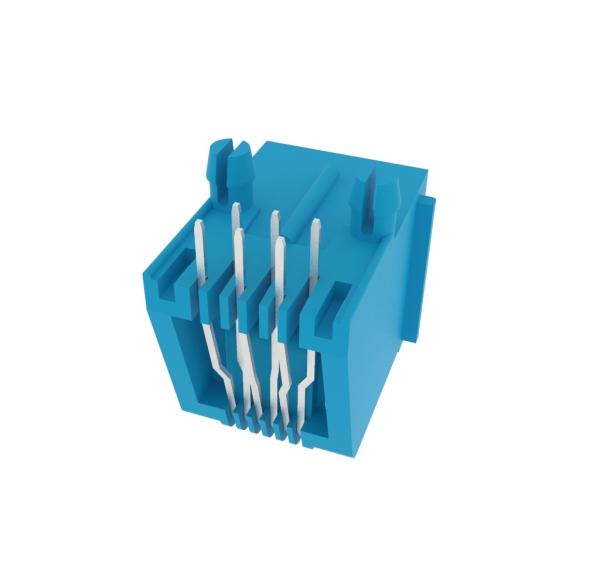

5721 Series PBT Left Position RJ11 Modular Female Jack 6Pin 6Contact Without Shielded

Competitive Advantage:

CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.

Product Details:

Voltage rating 125 VAC RMS
Current rating 1.5 AMP
Contact resistance 30 Milliohms max
Insulation resistance 500 Megohms min @ 500 VDC
Dielectric strength 1000 VAC rms 50Hz or 60Hz,1min
Insert material UL94V-0
Contact material Phosphor bronze T=0.35mm
Plating Contact area-selective gold plating
Mating force 2.2KG.F max
Retention strength 7.7KG.F min between jack and plug
Operation life 600 Cycles min
Storage Temperature ﹣40℃ to +85℃
Operation Temperature ﹣40℃ to +85℃

Product Specification:

Specification: RJ11 Modular Jack Cross Part NO: 57A-166211X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs

Features:


1. All materials comply with ROHS
2. High-wearing feature
3. OEM & ODM are both available.
4. Quality Assurance, 36 months warranty.
5. Riveting machine was invented by us.
6. We do lots of research and development in these area, if you meet any difficulties, feel free to contact us.

CSCE Corporate Policy

• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• CSCE Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services.

Pre-sale service:

1. We try to do best communicate with every customer about all the questions and promptly

2. We provide pre-sale service in various forms, such as we can provide options for customer choose. So that customers can a reasonable plan with less cost.

In-sale service:

1. We do double check before the products sent out

2. We do choose the safe shipping

3. We do make sure you can get the products on time

After service:

1. We do follow up after you get the products

2. We will answer customer questions in time. If need, we can provide free guidance if customer need new rqquirements.

3. If we have new products, we can recommend you in advance, when you place the second order, we will happy to give you a discount.

Product Drawing:

5721  Series PBT Left Position RJ11 Modular Female Jack 6Pin 6Contact Without Shielded
