Specifications
Brand Name :
CSCE
Model Number :
55B-44101X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Gender :
Female
Type :
RJ11
Product name :
Rj11 Connector
Contact resistance :
50mΩ Max
Rated voltage :
125V
Business type :
Manufacturer
Description

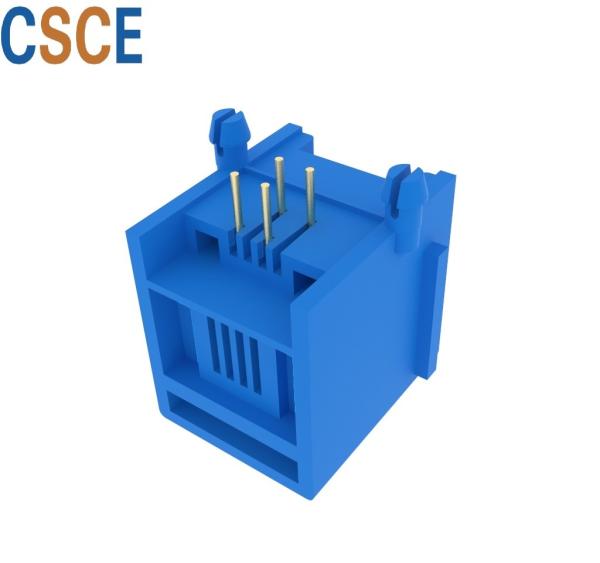

5523 Series Right Angle RJ11 Single Port Female Modular Jack With Panel Stop Phone Jack 4P4C

Quick Details:

Specification: RJ11 Modular Jack Cross Part NO: 55B-44101X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs

Product Description:

Retention Strength 7.7KG.F MIN Between Jack And Plug
Contact Resistance 30milliohm Max
Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
Current Rating 1.5A
Storage Temperature ﹣40℃ to +85℃
Operation Temperature ﹣40℃ to +85℃
Voltage Rating 125v AC
Mating/Unmating Force 2.2KG.F MAX.
Insulation Resistance 500 MΩ MIN @ 500V DC.
Insert Material UL94V-0
Operating Life 750 Cycles MIN.

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

14 Years Experience

Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.

OEM Services

For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.

Production Ability

The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

Our Team

We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.

Our Services


Customer Satisfaction:Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.

Payment Terms:There are many payment methods available such as TT/LC/DP/DA/Paypal/Western Union/Money Gram

Return Policy:If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay additional shipping fees incurred and items returned should be kept in their original status.

Feedback:Since your feedback is very important to our bushiness's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !


FAQ

1. When will you ship the goods out if i send payment now?
Usually ,We will delivery out them 2-3 Week later after payment received.if the PO is very big ,we need more time to produce .


2. Is your goods tested before shipping?
Yes,we test every item at least 3 times before shipping,please do not worry about the quality problems,you can buy with confidence.


3. I am new buyer ,how can i buy from you?
You tell us what you need ,we send you offer,if you think the offer is good,our sales send you company invoice including all details such as payment terms etc ,then we ship to you.

Competitive Advantage:

CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.

Product Drawing:

5523 Series Right Angle  RJ11 Single Port Female Modular Jack  With Panel Stop Phone Jack 4P4C
