Single Port Shielded RJ45 Jack Retention Strength 7.7KG.F MIN Between Jack And Plug
Single Port Shielded RJ45 Jack Retention Strength 7.7KG.F MIN Between Jack And Plug
Single Port Shielded RJ45 Jack Retention Strength 7.7KG.F MIN Between Jack And Plug
Single Port Shielded RJ45 Jack Retention Strength 7.7KG.F MIN Between Jack And Plug
Single Port Shielded RJ45 Jack Retention Strength 7.7KG.F MIN Between Jack And Plug
Single Port Shielded RJ45 Jack Retention Strength 7.7KG.F MIN Between Jack And Plug
Specifications
Brand Name :
CSCE
Model Number :
56F-318800121X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
name :
Shielded RJ45 Jack
Application :
PCB
Rated current :
1.5A
Operating temperature :
-40℃ to 85℃
Gender :
Female
Insulation resistance :
OEM
Description
Single Port Shielded RJ45 Retention Strength 7.7KG.F MIN Between Jack And Plug

Product Specification:

Specification: RJ45 Shislded Jack Cross Part NO: 56F-318800121X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material PBT
12. Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"

Product advantages:


13years of production experience
State-of-the-art machine
Flexible delivery times
The most accurate test

Why choose us :

14Years Experience

Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.

Our Team

We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.

Production Ability

The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

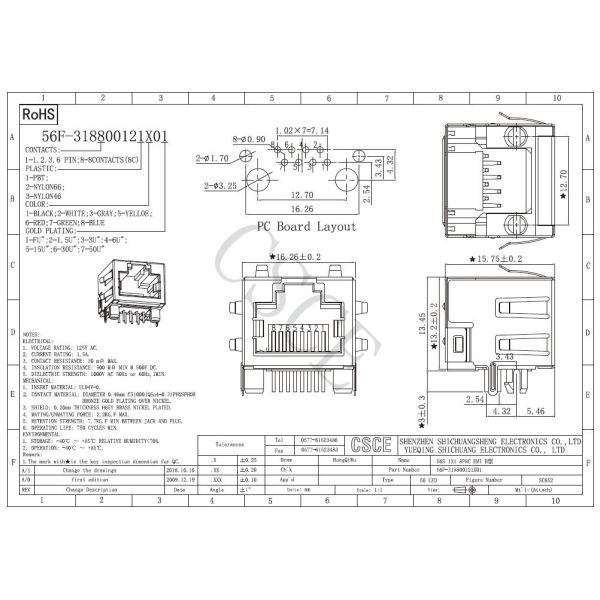

Product Drawing:

Single Port Shielded RJ45 Jack Retention Strength 7.7KG.F MIN Between Jack And Plug
