Specifications
Brand Name :
CSCE
Model Number :
SD0J-1B1111-080TB
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Name :
DC power connectors power jacks
Pin Size :
0.6mm
Rated Current :
1A
Color :
Black Or Customized
Rated Voltage :
12V DC
Salt spray :
12H
Description

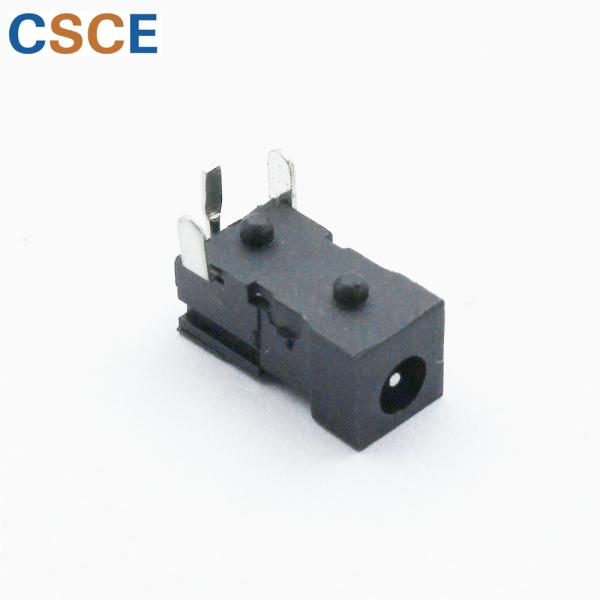

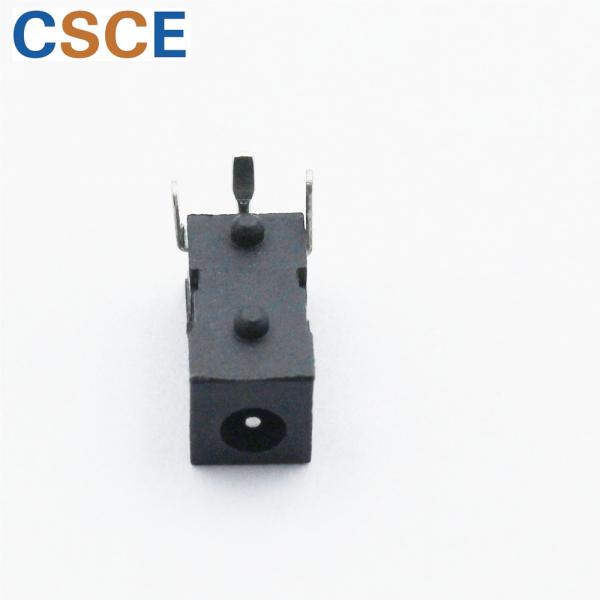

DC Jack Connector 3.0 Pin Power Supply Charging Socket Connector With Post Pin 0.6mm

Product Details:

Specification: DC Power Jack Cross Part NO: SD0J-1B1111-080TB
Mounting: Solder Samples: Available 2-3 Pcs

Product Specification:

Rated Current 1A
Rated Voltage 12V DC
Contact resistance ≤30mΩ
Insulation resistance ≥500mΩ
Voltage resistance 500V AC
Insertion force ≤30N
Operating temperature -40℃-+85℃
Wave soldering temperature 265±5℃,5s
Salt spray 12H

FAQ:

1. Is your goods tested before shipping?

Yes,we test every item at least 3 times before shipping,please do not worry about the quality problems,you can buy with confidence.


2. When will you ship the goods out if i send payment now?

Usually ,We will delivery out them 5-7 days later after payment received.if the PO is very big ,we need more time to produce .

3. How about the price?Can you make it cheaper?
The price depends on the item your demand(quantity).Beat quotation after receiving full description of the item you want.

4. How about the shipping cost?
If your goods is not large, we can send goods to you via counter, such as FEDEX, DHL,we cooperated with them for long time, so we have good pieces.If your goods is large, we will send to you via sea, we can quote the price to you, then you can choose .

5. Return Policy:
If you want to exchange your items received ,you must contact us within 7 days of the receipt of your order .And you should pay additional shipping fees incurred and items returned should be kept in their original status.
Please don’t hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction. Since your feedback is very important to our business's development ,we sincerely invite you to leave positive feedback for us.

Why Choose us

• Free Samples. • Delivery Time 1-2 Weeks.

Yueqing Electronic RJ45 Connector 14 years of Manufacturing Experience.

Factory

• We have over 3000 workers.

• The area of Yueqing is 1800,000 square meters.

• Yueqing Shichuang Electronics Co.,Ltd have owns 3 factory in Yueqing,Shenzhen,Jiangxi.

Quality

• Lean production management.

• 100% Tested (Not Just Batch Tested).

• Quality Guarantee:5 Years.

Certification

• ISO 9001:2000,

• ISO14001

• Active Environmental Policy.

Have R&D dept

• OEM Service Offered, Design Service Offered.

• Engineer Can Design Products As You Need,Developer Tooling As Customer Require.

What CSCE Do


1. Yueqing Shichuang Electronic Co., Ltd is a reliable and professional electronic components supplier.
2. We will be No.1 in this field.
3. We are with great passion of it.
4. We know, pays certainly can have the repayment.
5. We can surpass our competitors by achieving it.
6. Our customers will trust us and make long-term cooperation with us.

Product Drawing:

Pin 0.6mm DC Power Female Jack Connector , DC Jack Power Connector With Post
