10 / 100Mbps RJ45 Surface Mount Jack , Surface Mount Ethernet Jack ROHS Approved
10 / 100Mbps RJ45 Surface Mount Jack , Surface Mount Ethernet Jack ROHS Approved
10 / 100Mbps RJ45 Surface Mount Jack , Surface Mount Ethernet Jack ROHS Approved
10 / 100Mbps RJ45 Surface Mount Jack , Surface Mount Ethernet Jack ROHS Approved
Specifications
Brand Name :
CSCE
Model Number :
SROJ-3B11114-059HL
Certification :
ROHS UL ISO
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
RJ45
Application :
PCB
Business type :
Manufacturer
Product name :
rj45 smt connector
Contact material :
phosphorous bronze
Description

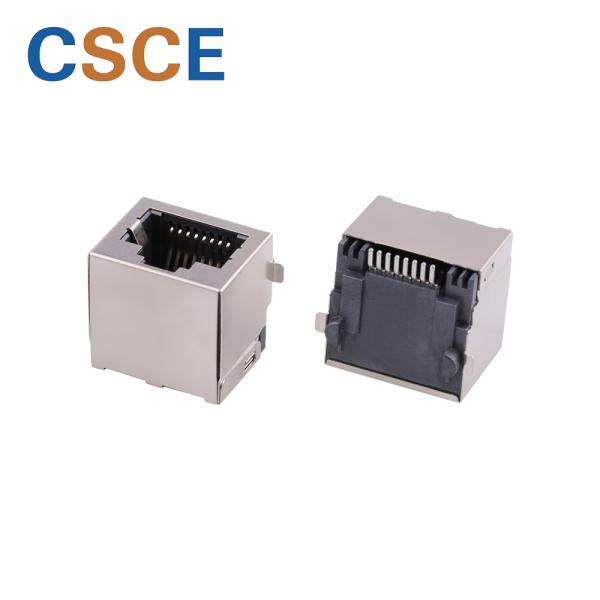

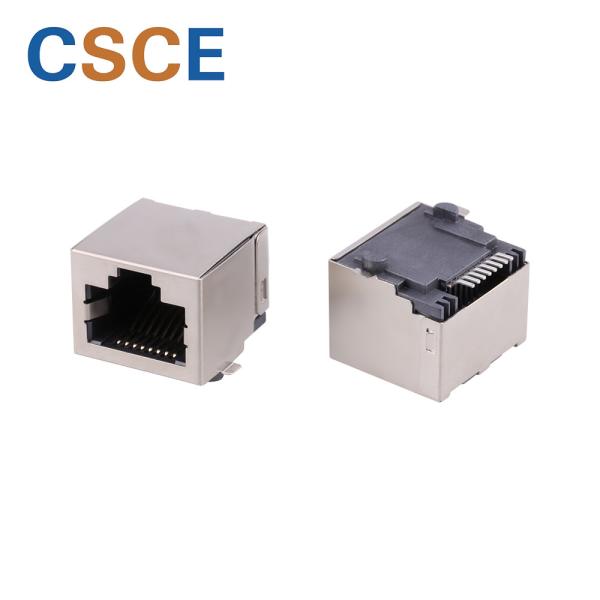

SMT 8P8C RJ45 Connector shielded 8p8c 90 degrees 10/100Mbps surface mount jack

Product Specification:

Specification: SMT RJ45 Connector Cross Part NO: SROJ-3B11114-059HL
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material LCP
12. Contact Material Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"

Competitive prices and services:

More competitive prices than pulsed Tico halos and aphorol

Delivery time: 2-3 weeks after order

Samples provided free of charge

New designs to meet customer requirements

DHL UPS DEDEX or TNT reduces shipping costs by 90%

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Qualtiy

• Manufactured Under Strict Controls.

• 100% Tested (Not Just Batch Tested)

• CSCE Is OEM Of TE (Tyco) For 10 Years

• Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

• Quality Guarantee:14Years

Our Services:

Factory price

• Own production workers, production equipment and engineering technology team

• New original with low and discount price

Safe & Quality Reliability

• Quality insurance system for superb product quality

• On Time, Every Time provision of Quality Components.

Customer Friendly Services

• One stop solution personalised to your unique requirements.

• Support in many Languages website, more convenience & fast services.

Product Drawing:

10 / 100Mbps RJ45 Surface Mount Jack , Surface Mount Ethernet Jack ROHS Approved
