Specifications
Brand Name :
CSCE
Model Number :
55A-146611X01
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
RJ11
Gender :
Female
name :
Telephone RJ11 Connector
Operating temperature :
-40℃ to +85℃
Plating :
Gold
Plastic :
PBT
Description

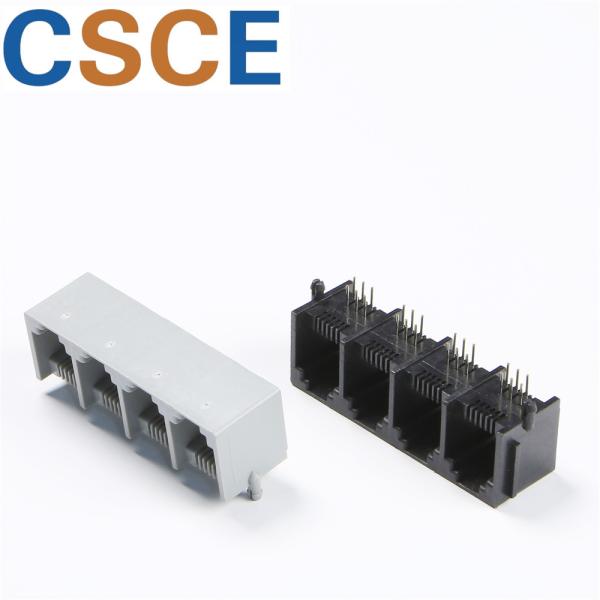

5521Series-E Ganged 1*4 Port Stacked RJ1 Modular Jack Telephone Jack Female With Brim

Quick Details:

Specification: RJ11 Single port Cross Part NO: 55A-146611X01
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs

Product Description:

Retention Strength 7.7KG.F MIN Between Jack And Plug
Storage Temperature ﹣40℃ to +85℃
Insert Material UL94V-0
Contact Resistance 30milliohm Max
Voltage Rating 125v AC
Operation Temperature ﹣40℃ to +85℃
Operating Life 750 Cycles MIN.
Mating/Unmating Force 2.2KG.F MAX.
Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
Insulation Resistance 500 MΩ MIN @ 500V DC.
Current Rating 1.5A
Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.

Our Services


Customer Satisfaction:Please don't hesitate to contact us if you have any questions or concerns before or after your purchase. We are committed to your 100% satisfaction.

Payment Terms:There are many payment methods available such as TT/LC/DP/DA/Paypal/Western Union/Money Gram

Return Policy:If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay additional shipping fees incurred and items returned should be kept in their original status.

Feedback:Since your feedback is very important to our bushiness's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !

Competitive Advantage:

CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.

CSCE Corporate Policy

• The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• CSCE Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services.

About us

CSCE Technologies is a professional manufacturer and supplier served in design, production, sale and distribution of more than 1000+ high quality fiber optic products for global optical communication, with its headquarter in Zhejiang, China.

With our advanced production facilities and experienced engineering team who are mostly background from worldwide leading companies for years in the fiber optic field, it ensures us the excellent quality products under the fast delivery, and provides our customers the most suitable solution for their unique project application.

FAQ:

Q: Are you a manufacturer?

A: Yes, we are a experienced manufacturer with our own design and production lines.

Q: Can I get sample order?

A: Yes, we would like to get your sample order for testing our quality, the sample cost is paid by the customer.

Q: Are you able to customize items with design or logo?

A: Yes, OEM & ODM is available.

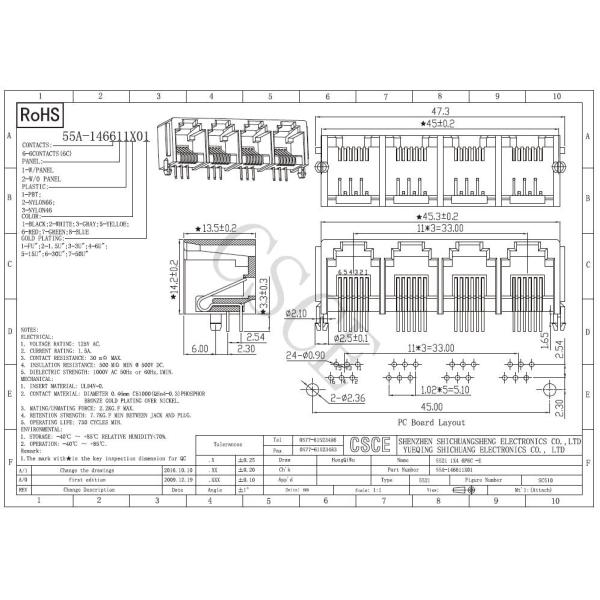

Product Drawing:

5521 Series-E Ganged Telephone RJ11 Connector , 1 * 4 Port RJ11 Female Jack With Brim
