PBT Material 2 X 2 RJ45 8P8C Jack 4 Port Shielded RJ45 Modular Jack With EMI / Leds
PBT Material 2 X 2 RJ45 8P8C Jack 4 Port Shielded RJ45 Modular Jack With EMI / Leds
PBT Material 2 X 2 RJ45 8P8C Jack 4 Port Shielded RJ45 Modular Jack With EMI / Leds
PBT Material 2 X 2 RJ45 8P8C Jack 4 Port Shielded RJ45 Modular Jack With EMI / Leds
Specifications
Brand Name :
CSCE
Model Number :
59C-32881131X01S
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Type :
RJ45
Gender :
Female
Application :
PCB
Material :
UL94-V0
Pin :
8p8c
Operating temperature :
-40℃ to +85℃
Description
PBT Material 2 X 2 RJ45 8P8C Jack 4 Port Shielded RJ45 Modular Jack With EMI / Leds

Product Specification:

Specification: RJ45 Modular Jack Cross Part NO: 59C-32881131X01S
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datasheet

Product Details:

1. Current Rating 1.5A
2. Voltage Rating 125v
3. Contact Resistance 30milliohm Max
4. Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
5. Insulation Resistance 500 MΩ MIN @ 500V DC.
6. Mating/Unmating Force 2.2KG.F MAX.
7. Retention Strength 7.7KG.F MIN Between Jack And Plug
8. Operating Life 750 Cycles MIN.
9. Operation Temperature ﹣40℃ to +85℃
10. Storage Temperature ﹣40℃ to +85℃
11. Housing Material PBT
12. Contact Material Phosphor Bronze
13. Contact Mating Area Plating Gold/3u"/6u"/15u"/30u"

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

14 Years Experience

Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.

Payment Terms:There are many payment methods available such as TT/LC/DP/DA/Paypal/Western Union/Money Gram

Return Policy:If you want to exchange your items received ,you must contact us within 5 days of the receipt of your order .And you should pay additional shipping fees incurred and items returned should be kept in their original status.

Feedback:Since your feedback is very important to our bushiness's development ,we sincerely invite you to leave positive feedback for us if you are satisfied with our products and service ,it will just take you one minute .Thanks a lot !

OEM Services

For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.

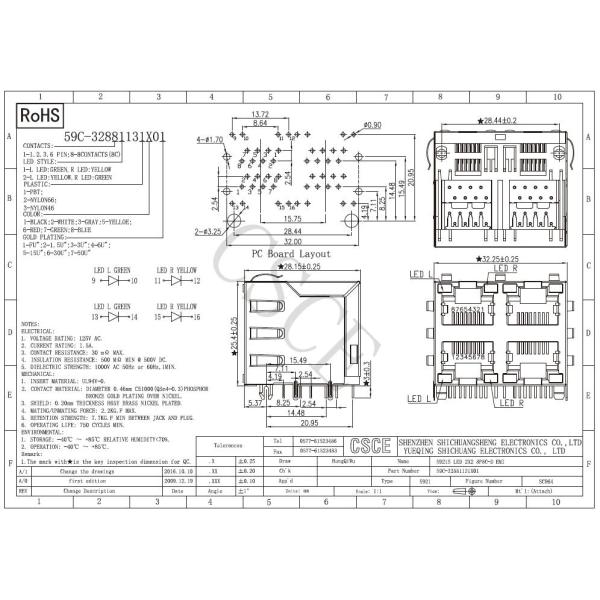

Product Drawing:

PBT Material 2 X 2 RJ45 8P8C Jack 4 Port Shielded RJ45 Modular Jack With EMI / Leds
