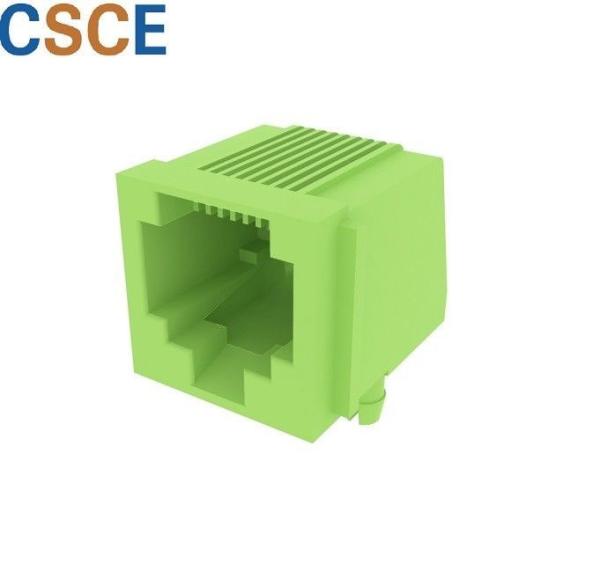

Right Angle Panel RJ45 Modular Jack Green Color Contact Resistance 30 Milliohms Max
Right Angle Panel RJ45 Modular Jack Green Color Contact Resistance 30 Milliohms Max
Right Angle Panel RJ45 Modular Jack Green Color Contact Resistance 30 Milliohms Max
Right Angle Panel RJ45 Modular Jack Green Color Contact Resistance 30 Milliohms Max
Right Angle Panel RJ45 Modular Jack Green Color Contact Resistance 30 Milliohms Max
Right Angle Panel RJ45 Modular Jack Green Color Contact Resistance 30 Milliohms Max
Specifications
Brand Name :
CSCE
Model Number :
57A-188101X01S
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen ， China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, , Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Gender :
Female
name :
RJ45 Modular Jack
Application :
PCB
Product name :
Rj45 Connector
Color :
Black or customization
Operating temperature :
-40℃ to 85℃
Description
Right Angle Panel RJ45 Modular Jack Green Color Contact Resistance 30 Milliohms Max

Product Details:

Voltage rating 125 VAC RMS
Current rating 1.5 AMP
Contact resistance 30 Milliohms max
Insulation resistance 500 Megohms min @ 500 VDC
Dielectric strength 1000 VAC rms 50Hz or 60Hz,1min
Insert material UL94V-0
Contact material Phosphor bronze T=0.35mm
Plating Contact area-selective gold plating
Mating force 2.2KG.F max
Retention strength 7.7KG.F min between jack and plug
Operation life 600 Cycles min
Storage Temperature ﹣40℃ to +85℃
Operation Temperature ﹣40℃ to +85℃

Product Specification:

Specification: RJ45 Modular Jack Cross Part NO: 57A-188101X01S
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs

Competitive Advantage:

CSCE has various types of appearance and many kinds of internal schematic products,high quality, customer firstly ,100% test, zero defect, short lead time are our best advantages ,Our products have been exported to all over the world and got a good reputation, If you have any questions,please do not hesitate to contact us by email or Trade Manager. We 'll get back to you in 24 hours.

Product application:

Products are widely used in radio, television, remote sensing toys, mobile communication, wireless Internet access, logistics express tracking services, etc..

Why choose us :

14Years Experience

Our company since 2005 RJ45 network connector production in the past 14 years,only focus on RJ45 network connector design and development and production and sales.

Our Team

We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.

Production Ability

The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

Product Drawing :

Right Angle Panel RJ45 Modular Jack Green Color Contact Resistance 30 Milliohms Max
