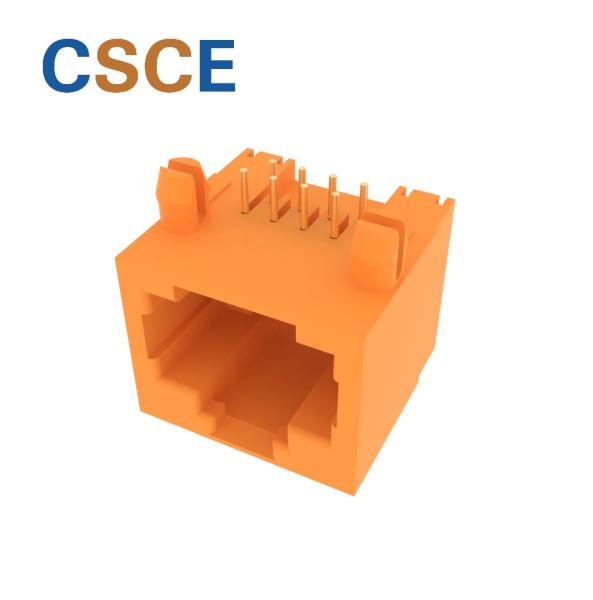

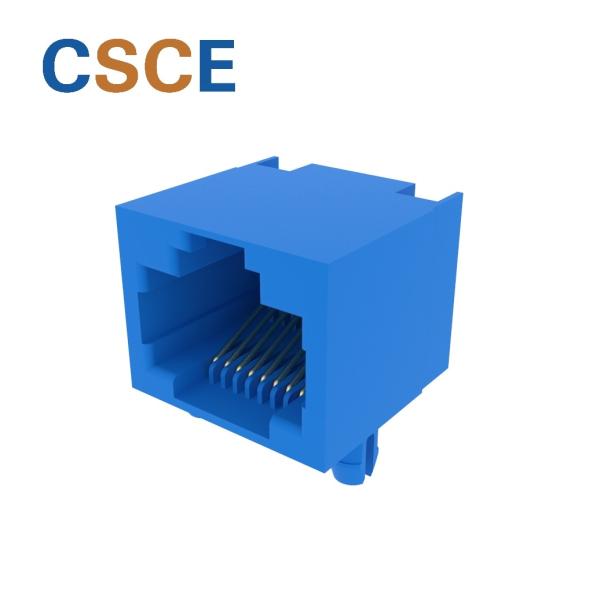

1*1 Ports RJ45 Modular Jack Contact Resistance 30mΩ Max For PC Board / IP Phone
1*1 Ports RJ45 Modular Jack Contact Resistance 30mΩ Max For PC Board / IP Phone
1*1 Ports RJ45 Modular Jack Contact Resistance 30mΩ Max For PC Board / IP Phone
1*1 Ports RJ45 Modular Jack Contact Resistance 30mΩ Max For PC Board / IP Phone
1*1 Ports RJ45 Modular Jack Contact Resistance 30mΩ Max For PC Board / IP Phone
1*1 Ports RJ45 Modular Jack Contact Resistance 30mΩ Max For PC Board / IP Phone
Specifications
Brand Name :
CSCE
Model Number :
56A-11880011X01S
Certification :
RoHS/CE/UL/FCC/CE/ISO9001/ISO14001
Place of Origin :
Shenzhen,China
MOQ :
500pcs
Price :
Negotiable
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
150K pcs/day
Delivery Time :
7-10 days
Packaging Details :
Tray in Carton
Contact resistance :
30mΩ Max
Colar :
Yellow
Type :
RJ45
Product name :
RJ45 Modular Jack
Pin :
8pin
Rated current :
1.5A
Description
1*1 Ports RJ45 Modular Jack Contact Resistance 30mΩ Max For PC Board / IP Phone

Product Specification:

Specification: RJ45 Modular Jack Cross Part NO: 56A-11880011X01S
Mounting: Thru-hole R/A Samples: Available 2-3 Pcs
Latch: Tab up Files: PDF/3D/ISG/Stp/Step/Datashee

Product Details:

Current Rating 1.5A
Voltage Rating 125v
Contact Resistance 30milliohm Max
Contact Material DiamererI 0.46mm C51000(QSn4-0.3)Phosphor Bronze
Insulation Resistance 500 MΩ MIN @ 500V DC.
Withstand Voltage 1000V AC 50Hz or 60Hz,1MIN.
Mating/Unmating Force 2.2KG.F MAX.
Operating Life 750 Cycles MIN.
Insert Material UL94V-0
Retention Strength 7.7KG.F MIN Between Jack And Plug
Operation Temperature ﹣40℃ to +85℃
Storage Temperature ﹣40℃ to +85℃
Housing Material PBT/PA66/PA46

Product application

Free for network and communication device sas HUB, PC card, switch, router, PC board, SDH, PDH, IP phone, x DSL modem, call center solution, call set-top box, VOIP gateway, setup protocol gateway, fast Ethernet switch ...

OEM Services

For high-quality, high reliability and reasonable price RJ45 network connector products,and more than the word’s top 500 OEM manufacturers recognized.

Production Ability

The company’s own injection molding, stamping and automated assembly plant, a professional automated production and testing equipment, the company has established an independent laboratory.

Our Team

We can turn your vision into reality. Thank you for visit. For any further information, please feel free to contact us.

Product Drawing:

1*1 Ports RJ45 Modular Jack Contact Resistance 30mΩ Max For PC Board / IP Phone
