One Port ARJ11A-MASL-QU2 10 Base-T RJ45 Modular Jack with Shielded Tab-Down
One Port ARJ11A-MASL-QU2 10 Base-T RJ45 Modular Jack with Shielded Tab-Down
Specifications
Place of Origin :
China
Brand Name :
LINK-PP
Certification :
UL,ROHS,Reach,ISO
Model Number :
ARJ11A-MASL-QU2
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Packaging Details :
Tray, Tape & Reel
Delivery Time :
Stock
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4000K/month
P/N :
ARJ11A-MASL-QU2
EMI finger :
NO
Port :
1x1,single,custom

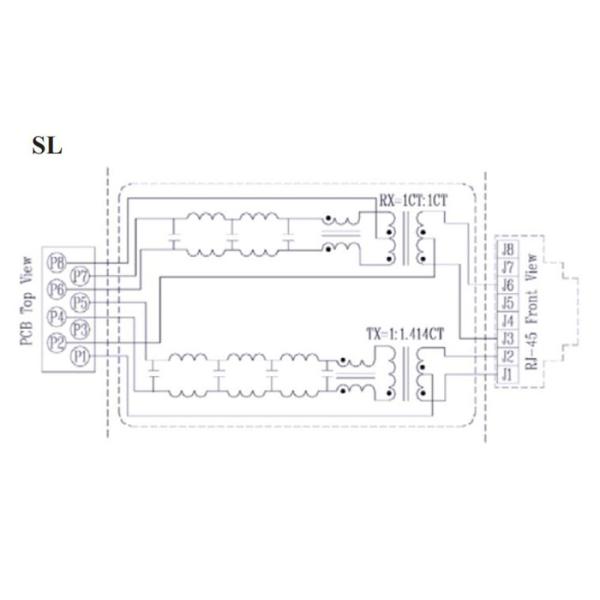

Turns Ratio TX/RX :
1:1.414CT/1CT:1CT
Speed :
10 BASE-T
Samples :
available
Description
One Port ARJ11A-MASL-QU2 10 Base-T RJ45 Modular Jack with Shielded Tab-Down

1. RJ45 modular plug ARJ11A-MASL-QU2
2.10 BASE-T RJ45 without leds
3. Network Interface Module
4. Minimum 1500Vrms
5. Samples:Available 5 pcs

6. Files:PDF/3D/ISG/Stp/Step/Datasheet

Description:
1X1 Tab-Down 10M RJ45 connector without leds, dimension: 16.26X21.59X13.84MM

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard

2. Mechanical Attachment:
1) Jack Configuration = 1 x 1

3. Electrical Characteristics:
1) Shielded = Yes

4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder

5. Body Related Features:
1) Port Configuration = Single
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole

7. Housing Related Features:
1) Connector Style = Jack

8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

9. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,

1100 staff,

100% test

Flexible delivery time

One Port ARJ11A-MASL-QU2 10 Base-T RJ45 Modular Jack with Shielded Tab-Down
