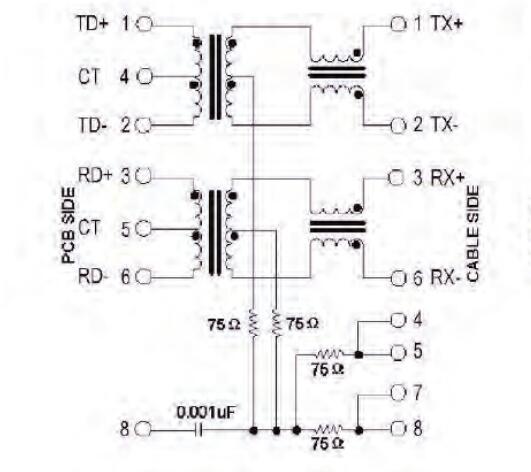

ARJ11B-MBSBQ-A-B-EMU2 Tab Down 1 X 1 Port RJ45 Ethernet Jack With G/Y LED
ARJ11B-MBSBQ-A-B-EMU2 Tab Down 1 X 1 Port RJ45 Ethernet Jack With G/Y LED
ARJ11B-MBSBQ-A-B-EMU2 Tab Down 1 X 1 Port RJ45 Ethernet Jack With G/Y LED
ARJ11B-MBSBQ-A-B-EMU2 Tab Down 1 X 1 Port RJ45 Ethernet Jack With G/Y LED
ARJ11B-MBSBQ-A-B-EMU2 Tab Down 1 X 1 Port RJ45 Ethernet Jack With G/Y LED
ARJ11B-MBSBQ-A-B-EMU2 Tab Down 1 X 1 Port RJ45 Ethernet Jack With G/Y LED
Specifications
Place of Origin :
China
Brand Name :
LINK-PP
Certification :
UL,ROHS,Reach,ISO
Model Number :
ARJ11B-MBSBQ-A-B-EMU2
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Packaging Details :
Tray, Tape & Reel
Delivery Time :
Stock
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4000K/month
P/N :
ARJ11B-MBSBQ-A-B-EMU2
EMI finger :
Without
Port :
Single
LED :
GREEN/YELLOW
Samples :
free
Alternative rf :
ARJ11B-MBSBQ-A-B-EMU2=>LPxxxNL
Documents Available :
PDF/3D/Step/IGS/STP
Description
ARJ11B-MBSBQ-A-B-EMU2 Tab Down 1 X 1 Port RJ45 Ethernet Jack With G/Y LED

Tab down PCB IEEE RJ45 Jack 1 X 1 Port

1.Right Angle RJ45 Connector
2.Shielded RJ45 Connector
3.Single Port RJ45 Connector
4.Through hole rj45 modular jack

Description:

1X1 Tab-down 10/100M RJ45 connector with green/yellow leds

Height(mm) 13.84 mm
Length(mm) 21.59 mm
Width(mm) 16.26mm

1. Product Type Features:

1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)

2. Electrical Characteristics:
1) Shielded = Yes

3. Body Related Features:
1) Port Configuration = Single
2) EMI Fingers -Top and Sides = Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length

4. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,

Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant

5. Identification Marking:
1) Left LED Color (Position #1) = green - 250 ohm resistor
2) Right LED Color (Position #2) = yellow - 250 ohm resistor

6. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,ANX Automotive Network exchange,fast ethernet switch

ARJ11B-MBSBQ-A-B-EMU2 Tab Down 1 X 1 Port RJ45 Ethernet Jack With G/Y LED
