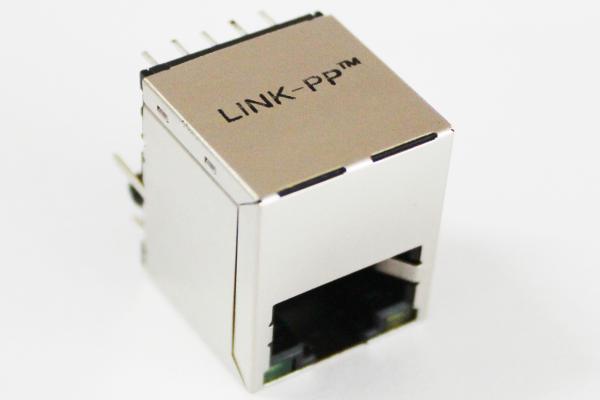

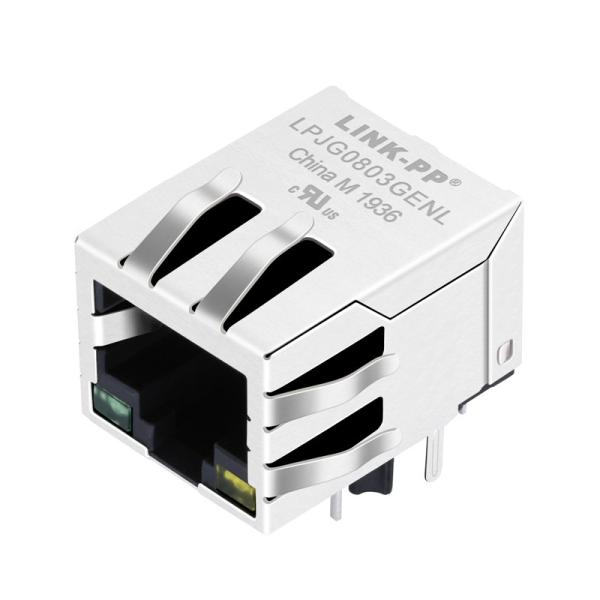

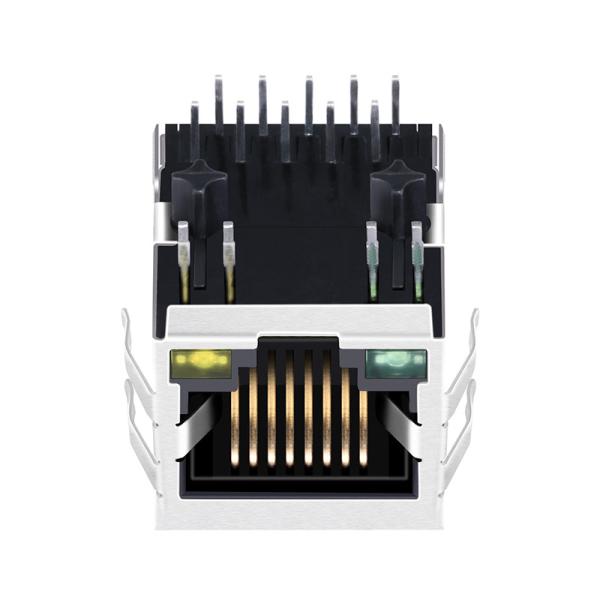

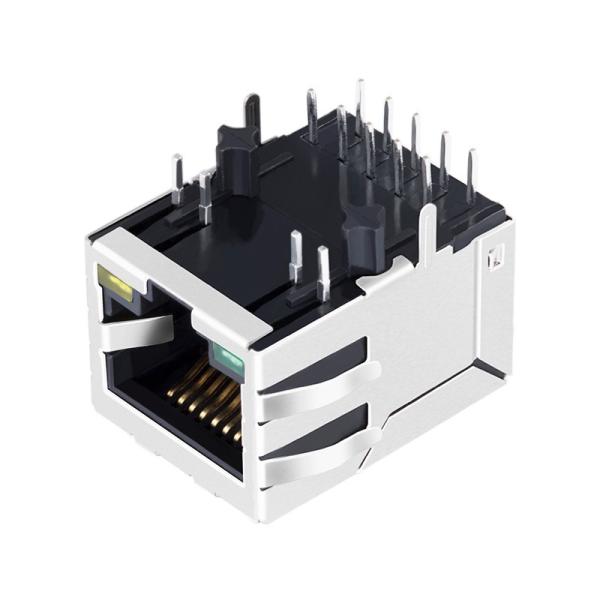

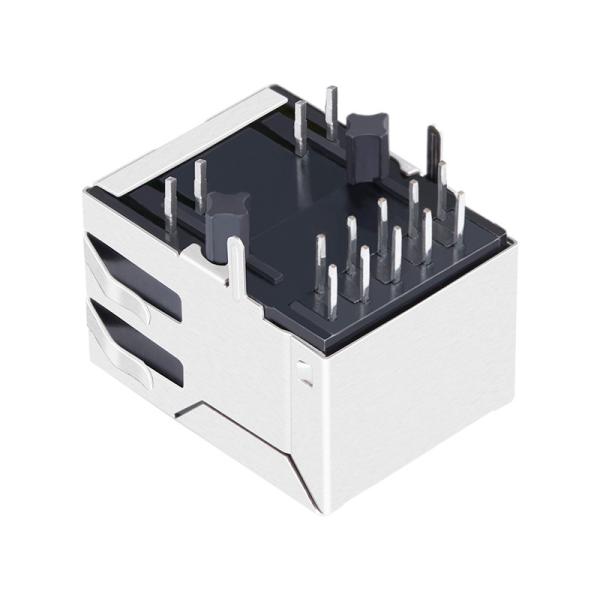

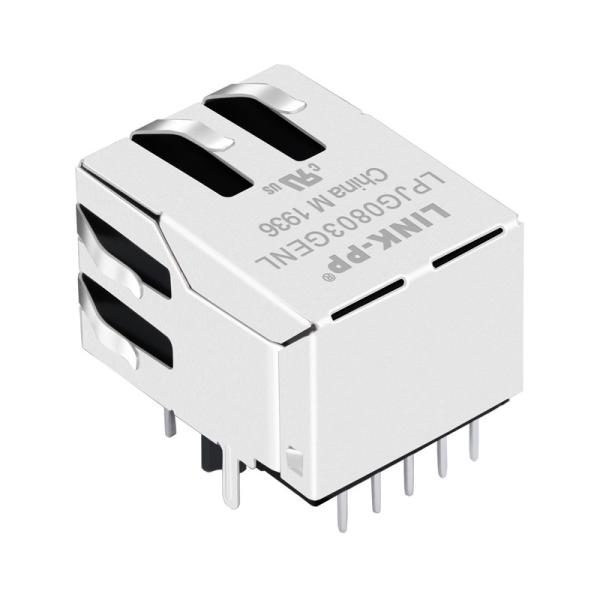

LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246
LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246
LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246
LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246
LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246
LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246
LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246
LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246
LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246
LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246
LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246
LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246
Specifications
Place of Origin :
China
Brand Name :
LINK-PP
Certification :
UL,ROHS,Reach,ISO
Model Number :
DY9759-A551124-246
MOQ :
50/500/1000
Price :
Supportive
Packaging Details :
50pcs/tray,1200pcs/carton
Delivery Time :
Stock
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Item :
DY9759-A551124-246
Type :
RJ45 Connector
TAB direction :
Down
RoHS Compliant :
yes
Indicators :
LED colors can be selected
Suitable LAN PHY Spec. :
10/100 Base-T
Description

LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246

1.10/100/1000 Base-T

2.1X1 Tab-down
3.Through hole RJ45 modular jack

4.21.3mm length RJ45 Magjack

LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246 LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246

ELECTRICAL SPECFICATIONS @25℃


1.Turn Ratio(±2%):
TX=1CT:1 RX=1CT:1
2.Inductance OCL: 350uH MIN
@100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.2dB MAX @ 0.3-100MHz
4.Return Loss:
-16dB MIN @ 1-30MHz
-13.5dB MIN @ 40MHz
-11.5dB MIN @ 50MHz
-10dB MIN @ 60-80MHz
5.Cross talk:
-40dB MIN @ 30MHz
-36dB MIN @ 60MHz
-30dB MIN @ 100MHz
6.Common Mode Rejection:
-35dB MIN @ 30MHz
-32dB MIN @ 60MHz
-30dB MIN @ 100MHz
7.Hipot Test: 1500Vrms MIN
8.Operating Temperature: 0℃ TO 70℃.

LPJG0803GENL RJ45 Connector Jack , Female Gigabit Pins DY9759-A551124-246

Applications:

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Competitive Advantage:

16 years production experience,

2600 staff,

100% test

Flexible delivery time
