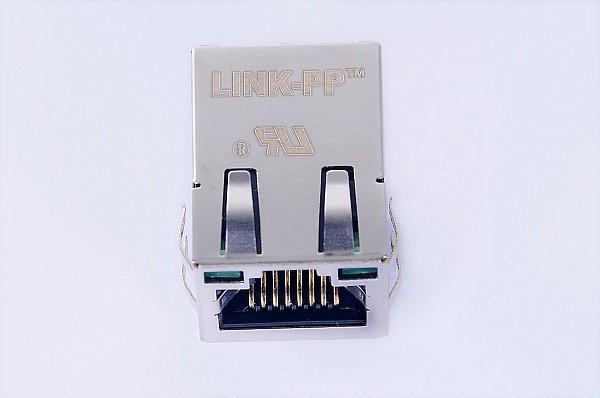

IEEE 802.3 USB Magnetic RJ45 Jack Tab Down RoHS With Integrated Transformer 0817-1X1T-21-F


1.Single Port Stacked RJ45 magjack

2.10/100/1000BASE RJ45 PCB connector

3.Belfuse MagJack
4.Tab Down

5.No LEDs

Product Description

1.Characteristics: 1)RJ45 Connector with integrated transformer/common mode choke
2)Available in SMD, THT and THT with USB
3)350µH min. OCL with 8mA bias
4)Complies with IEEE 802.3
5)Extended temperature range -40°C to +85°C available
6)PoE/ PoE+
　
2. Operation/Application: 1)10/100 Base-T
　 2)xDSL Modems
　 3)Embedded PC
　 4)LAN Applications
　 5)Hub, Router, Switches
3. Mechanical Attachment:
1) Jack Configuration
3. Electrical Characteristics:
1) Shielded Yes
4. Termination Related Features:
1) EMI Finger Yes
2) Termination Method Solder
5. Body Related Features:
1) Port Configuration Single
2) EMI Fingers -Top and Sides With/Without
3) Latch Orientation Standard - Latch Down
4) PCB Tail Length 3.50±0.50mm
6. Contact Related Features:
1) Preloaded Yes
2) Contact Termination Type Through Hole
7. Housing Related Features:
1) Connector Style Jack
8. Industry Standards:
1) RoHS/ELV Compliance RoHS compliant, ELV compliant
2) Lead Free Solder Processes Wave solder capable to 265°C
3) RoHS/ELV Compliance History Always was RoHS compliant
9. Identification Marking:
1) Left LED Color Green or Yellow
2) Right LED Color Green or Yellow
10. Conditions for Usage: 　
1) Applies To Printed Circuit Board
2) Environmental Conditions Office / Premises
3) Operating Temperature (°C ) 0 - 70/-40 - +85
11. Configuration Related Features
1) Magnetic Circuit 3D15
2) Status Indicator Led
3) Decoupling Capacitor With/Without
4) Rear PCB Ground Tab With/Without
5) Signal Lead Quantity 8

Main customer:

TEXAS INTRUMENTS SAMSUNG GE SONTY CANNON FLEXTRONICS

LINK-PP are the best supplier of Texas Instruments ,Samsung, and General Electric. Welcome to visit the Texas Instruments's websit: http://www.ti.com/tool/beaglebk#0

you will look at our logo: "LINK-PP" on BeagleBone Black.

BeagleBone Black is a low-cost, open source, community-supported development platform for ARM® Cortex™-A8 processor developers and hobbyists. Boot Linux in under 10-seconds and get started on Sitara™ AM335x ARM Cortex-A8 processor development in less than 5 minutes with just a single USB cable.
