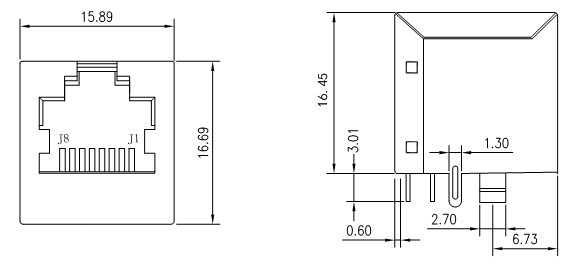

1X1 Vertical Entry RJ45 Modular Jack LPJE681XDNL , 8P8C Shielded RJS-D0610-5NN-35
1X1 Vertical Entry RJ45 Modular Jack LPJE681XDNL , 8P8C Shielded RJS-D0610-5NN-35
Specifications
Place of Origin :
China
Brand Name :
LINK-PP
Certification :
UL,ROHS,Reach,ISO
Model Number :
LPJE681XDNL
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Packaging Details :
Tray, Tape & Reel
Delivery Time :
Stock
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000K/month
Spec :
LPJE681XDNL
Family :
Vertical Rj45 Mod-Jack
Magnetics :
WIthout
LEDs :
No
Shielded :
Yes
Samples :
Free
Description
1X1 Vertical Entry RJ45 Modular Jack LPJE681XDNL Cross RJS-D0610-5NN-35
1. LPJE681XDNL Vertical Rj45 Jack
2.1X1 Vertical Type
3.Through hole RJ45 modular jack
1X1 Vertical Entry RJ45 Modular Jack LPJE681XDNL , 8P8C Shielded RJS-D0610-5NN-35
Description:
1X1 RJ45 Magjack with/without leds, meeting IEEE 802.3u
1. Product Type Features:
1) Product Type = Connector
2) Jack Type = RJ45
3) Profile = Standard
4) PCB Mounting Orientation = Side Entry (Right Angle)/Top Entry(Vertical)
2. Mechanical Attachment:
1) Jack Configuration = 1 x 1
3. Electrical Characteristics:
1) Shielded = Yes
4. Termination Related Features:
1) EMI Finger - Bottom = Without
2) Termination Method = Solder
5. Body Related Features:
1) Port Configuration = Single/Multi
2) EMI Fingers -Top and Sides = With/ Without
3) Latch Orientation = Standard - Latch Down
4) PCB Tail Length
6. Contact Related Features:
1) Preloaded = Yes
2) Contact Termination Type = Through Hole/Surface Mount
7. Housing Related Features:
1) Connector Style = Jack
8. Industry Standards:
1) RoHS/ELV Compliance = RoHS compliant, ELV compliant
2) Lead Free Solder Processes = Wave solder capable to 240°C,
Wave solder capable to 260°C, Wave solder capable to 265°C
3) RoHS/ELV Compliance History = Always was RoHS compliant
9. Identification Marking:
1) Left LED Color (Position #1) = Green - 250 ohm resistor
2) Right LED Color (Position #2) = Green - 250 ohm resistor
10. Conditions for Usage:
1) Applies To = Printed Circuit Board
2) Environmental Conditions = Office / Premises
3) Operating Temperature (°C ) = 0 - 70/-40 - +85
Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
