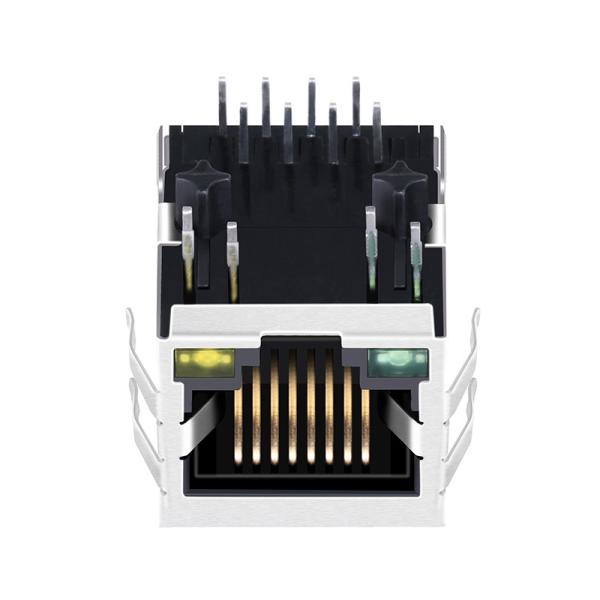

Silver Metal IEEE RJ45 Modular Jack ,Interested Rj45 Connector 13F-63CGYD4S2NL
Silver Metal IEEE RJ45 Modular Jack ,Interested Rj45 Connector 13F-63CGYD4S2NL
Silver Metal IEEE RJ45 Modular Jack ,Interested Rj45 Connector 13F-63CGYD4S2NL
Silver Metal IEEE RJ45 Modular Jack ,Interested Rj45 Connector 13F-63CGYD4S2NL
Silver Metal IEEE RJ45 Modular Jack ,Interested Rj45 Connector 13F-63CGYD4S2NL
Silver Metal IEEE RJ45 Modular Jack ,Interested Rj45 Connector 13F-63CGYD4S2NL
Silver Metal IEEE RJ45 Modular Jack ,Interested Rj45 Connector 13F-63CGYD4S2NL
Silver Metal IEEE RJ45 Modular Jack ,Interested Rj45 Connector 13F-63CGYD4S2NL
Silver Metal IEEE RJ45 Modular Jack ,Interested Rj45 Connector 13F-63CGYD4S2NL
Silver Metal IEEE RJ45 Modular Jack ,Interested Rj45 Connector 13F-63CGYD4S2NL
Specifications
Place of Origin :
China
Brand Name :
LINK-PP
Certification :
UL,ROHS,Reach,ISO
Model Number :
13F-63CGYD4S2NL
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Packaging Details :
50pcs/tray,1200pcs/carton
Delivery Time :
Stock
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4200K-PCS/Month
PN :
13F-63CGYD4S2NL
Made In China :
LPJ0013AHNL
Ethernet :
1x10/100Mbps
Samples :
Available
LED :
Yellow/Green
File :
PDF/3D/ISG/Stp/Step/Datasheet
Description
Silver Metal IEEE RJ45 Modular Jack ,Interested Rj45 Connector 13F-63CGYD4S2NL
Quick Details
1.10/100M POE/POE
2.1X1 Tab-up
3.POE/POE RJ45 modular jack


1 x 1 Port RJ45 Modular Jack , 100Base RJ 45 Modular Connector
Single Port RJ45 PCB Connector with 10/100 Base-T Integrated Magnetics,Green/Yellow LED,Tab Down,RoHS
LINK-PP Part Number LPJ0013AHNL
YDS Part Number 13F-63CGYD4S2NL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option GREEN/YELLOW
Latch TAB DOWN
Number of Ports 1X1
PCB Mount Angle SIDE ENTRY
Package Height (mm) 13.50
Package Length (mm) 21.30
Package Width (mm) 16.00
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Silver Metal IEEE RJ45 Modular Jack ,Interested Rj45 Connector 13F-63CGYD4S2NL

Applications:
Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
16 years production experience,
2600 staff,
100% test
Flexible delivery time
