RJ7-1201ND2 2 x 1 Port Stacked RJ45 With 10/100/1000M Magnetic
RJ7-1201ND2 2 x 1 Port Stacked RJ45 With 10/100/1000M Magnetic
RJ7-1201ND2 2 x 1 Port Stacked RJ45 With 10/100/1000M Magnetic
RJ7-1201ND2 2 x 1 Port Stacked RJ45 With 10/100/1000M Magnetic
Specifications
Place of Origin :
China
Brand Name :
LINK-PP
Certification :
UL,RoHS,Reach,ISO
Model Number :
LPJ17401CNL
MOQ :
50/500/1000/60K
Price :
$0.11-$24
Packaging Details :
Tray
Delivery Time :
Stock
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
180K/Month
Spec MFG :
RJ7-1201ND2
Alternate PN :
LPJ17401CNL
Interface :
2x 10/100Mbps Ethernet
RoHS :
yes
Indicator :
LED colors can be selected
Cross Rf :
LPJ17401CNL = RJ7-1201ND2
Description
RJ7-1201ND2 2 x 1 Port Stacked RJ45 With 10/100/1000M Magnetic
1. Quick Details
Speed:
10/100 BASE-T
Number of Ports:
2 X 1 PORT
Application - LAN:
ETHERNET (WITHOUT PoE)
Latch:
Down And UP
Pin Type:
THT SOLDER
Temperature:
- 40 TO + 85

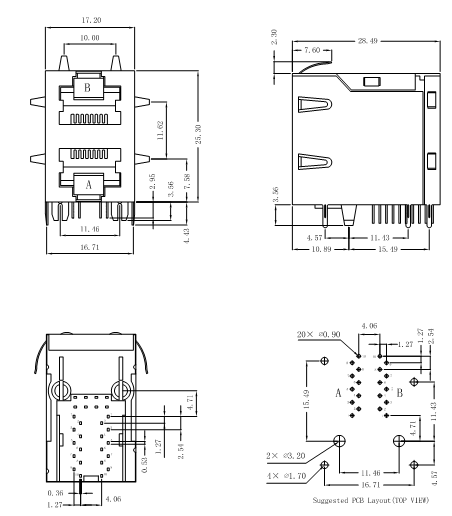

RJ7-1201ND2 2 x 1 Port Stacked RJ45 With 10/100/1000M Magnetic

2.Magnetic RJ45 Jack Description:
Listing Description:
1) manufacture RJ45 Magnetic Jack for 16years Experience
1)ISO9001 SGS UL CE REACH Certification
3)Main customer:TI GE SONY Samsung IBM CANON
4)PULSE OEM for 9years
Detailed Description:
1.Characteristics:
1)RJ45 Connector with integrated transformer/common mode choke
2)Available in SMD, THT and THT with USB
3)350µH min. OCL with 8mA bias
4)Complies with IEEE 802.3
5)Extended temperature range -40°C to +85°C available
　
2. Operation/Application:
1)10 / 100 / 1000 Base-T
　
2)xDSL Modems
　
3)Embedded PC
　
4)LAN Applications
　
5)Hub, Router, Switches
3. Mechanical Attachment:
1) Jack Configuration
3. Electrical Characteristics:
1) Shielded
Yes
4. Termination Related Features:
1) EMI Finger
Yes
2) Termination Method
Solder
5. Body Related Features:
1) Port Configuration
Single
2) EMI Fingers -Top and Sides
With/Without
3) Latch Orientation
Standard - Latch Down
4) PCB Tail Length
3.50±0.50mm
6. Contact Related Features:
1) Preloaded
Yes
2) Contact Termination Type
Through Hole
7. Housing Related Features:
1) Connector Style
Jack
8. Industry Standards:
1) RoHS/ELV Compliance
RoHS compliant, ELV compliant
2) Lead Free Solder Processes
Wave solder capable to 265°C
3) RoHS/ELV Compliance History
Always was RoHS compliant
9. Identification Marking:
1) Left LED Color
Green or Yellow
2) Right LED Color
Green or Yellow
10. Conditions for Usage:
　
1) Applies To
Printed Circuit Board
2) Environmental Conditions
Office / Premises
3) Operating Temperature (°C )
0 - 70/-40 - +85
11. Configuration Related Features
1) Magnetic Circuit
3D15
2) Status Indicator
Led
3) Decoupling Capacitor
With/Without
4) Rear PCB Ground Tab
With/Without
5) Signal Lead Quantity
8
