H1060NL , LP1060NL 4x10/100Base-T Magnetics Transformer SMD Module
H1060NL , LP1060NL 4x10/100Base-T Magnetics Transformer SMD Module
H1060NL , LP1060NL 4x10/100Base-T Magnetics Transformer SMD Module
H1060NL , LP1060NL 4x10/100Base-T Magnetics Transformer SMD Module
Specifications
Place of Origin :
Guangdong,China
Brand Name :
LINK-PP
Certification :
UL,RoHS,Reach,ISO
Model Number :
H1060NL
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Packaging Details :
T&R
Delivery Time :
Stock
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Specifications :
H1060NL
Compatible :
LP1060NL
Ethernet :
4x10/100Base-T
Samples :
Free
Application :
ETHERNET (NON PoE)
Turns Ratio RX :
1CT:1CT
Turns Ratio TX :
1CT:1CT
Cores Per Port :
16
Archivi Disponibili :
PDF/3D/ISG/Stp/Step/Datasheet
Description

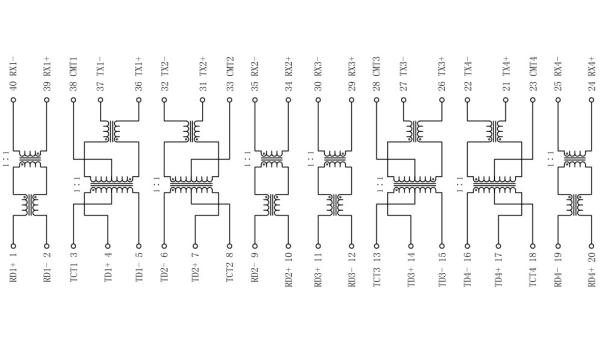

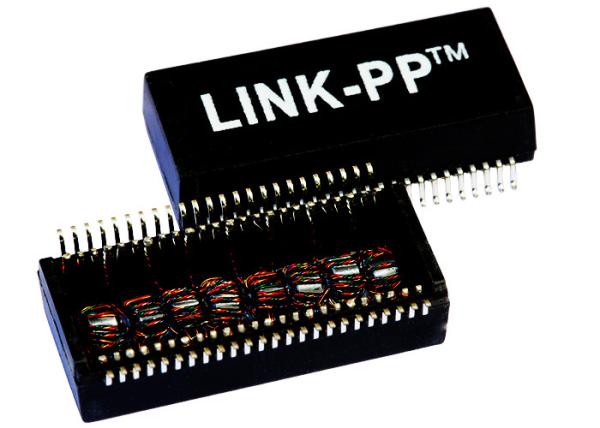

H1060NL , LP1060NL 4x10/100Base-T Magnetics Transformer SMD Module
  1. 1x4 Port Lan Transformer Meets IEEE 802.3 specification
  2. RoHS peak reflow temperature rating: 245°C
  3. Models designed to support four single or double-stacked RJ-45 connectors
  4. 100base-t transformer Tranceivers Requiring 1:1 Transmit and Receive Turns Ratio
  5. 10/100Base-TX Quad Port Transformer Modules
  6. LP1062ANLE Industrial Model

Electrical Specifications(25):
1. Turns Ratio50KHz, 0.5V
Chip side: Line side=1CT: 1CT+_2%
2. Inductance(Ls)100KHz, 0.1V, 12mA DC Bias:
Chip side: 350uH Min
3. Insertion Loss1-100MHz: -1.4dB Max
4. Return Loss1-30MHz: -16dB Min
40MHz: -14.4dB Min
50MHz: -13.1dB Min
60-80MHz: -12dB Min
100MHz: -10dB Min
5. Differential to Common Mode Rejection:
30MHz: -45dB Min
60MHz: -40dB Min
100MHz: -35dB Min
6. Crosstalk30MHz: -40dB Min
60MHz: -35dB Min
100MHz: -30dB Min
7. Hi-Pot: 1500Vrms Min
Applications:
Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem
Competitive Advantage:
2600 staff,
100% test
Flexible delivery time
LP1260NLE
H1302NLT
LP1302NL
LP1011NLE
LP1062ANLE
