6605424-1 LPJ0064CNL 100Base-T Magnetic RJ45 Jack Through Hole
6605424-1 LPJ0064CNL 100Base-T Magnetic RJ45 Jack Through Hole
6605424-1 LPJ0064CNL 100Base-T Magnetic RJ45 Jack Through Hole
6605424-1 LPJ0064CNL 100Base-T Magnetic RJ45 Jack Through Hole
6605424-1 LPJ0064CNL 100Base-T Magnetic RJ45 Jack Through Hole
6605424-1 LPJ0064CNL 100Base-T Magnetic RJ45 Jack Through Hole
6605424-1 LPJ0064CNL 100Base-T Magnetic RJ45 Jack Through Hole
6605424-1 LPJ0064CNL 100Base-T Magnetic RJ45 Jack Through Hole
6605424-1 LPJ0064CNL 100Base-T Magnetic RJ45 Jack Through Hole
6605424-1 LPJ0064CNL 100Base-T Magnetic RJ45 Jack Through Hole
Specifications
Brand Name :
LINK-PP
Model Number :
6605424-1(LPJ0064CNL)
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Series :
6605424-1 TE Connectivity AMP Connectors
Applications :
10/100 Base-T, AutoMDIX
Shielding :
Shielded
Mounting Style :
Through Hole
LED Indicator :
without LED
Mounting Angle :
Right Angle
Tab Direction :
Tab Down
Flammability Rating :
UL 94 V-0
Operating Temperature Range :
0°C to + 70°C
Description

Features of 6605424-1 Ethernet Magjack:

■ PCB space savings
■ Improved reliability and EMI performance over discrete magnetics
■ Micro-welding of mag wire to PCB versus soldering
■ Meets or exceeds FCC Part 68, IEEE 802.3, and ANSI X3.263 requirements
■ Supports all appropriate and available PHY Chips and applications
■ Extended Temp -40°C to +85°C available

■ Numerous circuit options available

■ Modular Jacks with Integrated Magnetics

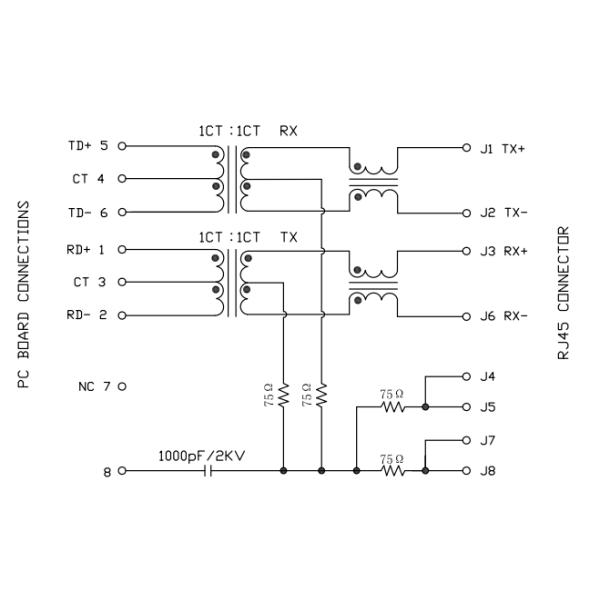

ELECTRICAL SPECIFICATIONS @25℃:

Electrical Specification Value
Turn Ratio

TX=1CT:1CT

RX=1CT:1CT
Insertion Loss -1.0dB MAX @ 1-65MHz
Return Loss

-20dB MIN @ 5-10MHz

-16dB MIN @ 10-30MHz

-12dB MIN @ 30-60MHz

-10dB MIN @ 60-80MHz
Cross talk

-40dB MIN @ 1-30MHz

-35dB MIN @ 30-60MHz

-30dB MIN @ 60-100MHz
Common Mode Rejection

-30dB MIN @ 1-50MHz

-20dB MIN @ 50-150MHz
Hipot 1500Vrms
OCL 350uH MIN @ 100KHz, 100mV, 8mA DC Bias
Operating Temperature 0°C TO 70°C

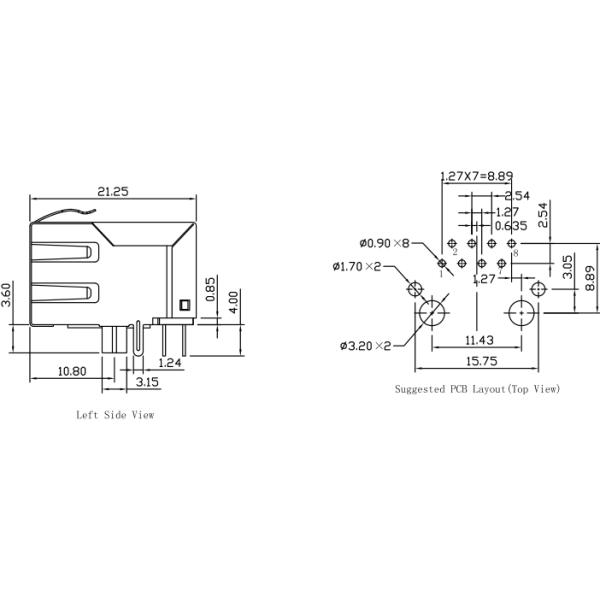

LPJ0064CNL with similar specifications to 6605424-1:

LPJ0064CNL.pdf

6605424-1 LPJ0064CNL 100Base-T Magnetic RJ45 Jack Through Hole

6605424-1 LPJ0064CNL 100Base-T Magnetic RJ45 Jack Through Hole

Notes:


1. Designed to support applications, such as SOHO(ADSL modems),LAN-on-Motherboard(LOM),hub and Switches.
2. Meets IEEE 802.3 specification
3. Connector Materials:
Housing: Thermoplastic UL94V-0
Contact/Shield: Copper alloy
Shield plating: Nickel
Contact plating: Gold 6 micro-inches min.In contact area.
4. Wave solder tip temperature: 265℃ Max
Wave solder tip temperature time: 5 Sec Max
5. UL Certification: File Number E484635
