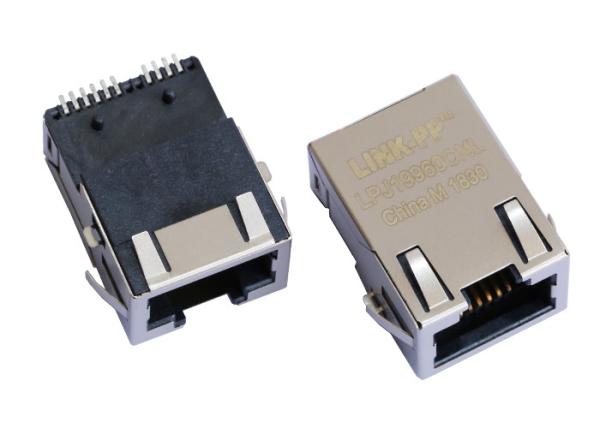

7498210003 SMT Ultra Low-Profile RJ45 Jack LPJ19960CNL With 10/100Mbps POE Ethernet
7498210003 SMT Ultra Low-Profile RJ45 Jack LPJ19960CNL With 10/100Mbps POE Ethernet
7498210003 SMT Ultra Low-Profile RJ45 Jack LPJ19960CNL With 10/100Mbps POE Ethernet
7498210003 SMT Ultra Low-Profile RJ45 Jack LPJ19960CNL With 10/100Mbps POE Ethernet
7498210003 SMT Ultra Low-Profile RJ45 Jack LPJ19960CNL With 10/100Mbps POE Ethernet
7498210003 SMT Ultra Low-Profile RJ45 Jack LPJ19960CNL With 10/100Mbps POE Ethernet
7498210003 SMT Ultra Low-Profile RJ45 Jack LPJ19960CNL With 10/100Mbps POE Ethernet
7498210003 SMT Ultra Low-Profile RJ45 Jack LPJ19960CNL With 10/100Mbps POE Ethernet
Specifications
Brand Name :
LINK-PP
Model Number :
7498210003
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
50/500/1000/25K
Price :
$0.08-$1.79
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
2800K-PCS/Month
Delivery Time :
Stock
Packaging Details :
110pcs/reel,770pcs/Carton
Specifications :
7498210003
Cross PN :
LPJ19961-8CNL
Ethernet :
10/100Mbps POE
Standard :
IEEE802.3af
Mounting :
SMD
Samples :
Available
Files :
PDF/3D/ISG/Stp/Step/Datasheet
Description
7498210003 Ultra-Low-Profile Connector Rj45 LPJ19960CNL SMT 10/100M POE

  1. LPJ19961-8CNL LINK-PP Ultra-Low-Profile Connector

  2. Compatible to Rj45 POE modular jack 7498210003

  3. Compliant with IEEE 802.3af for 10/100Base-TX-Applications

  4. Low Profile Rj45 10/100/1000 With Magnetics

  5. Auto MDIX capable

  6. 9.4mm height above PCB

  7. Surface Mounting Low Profile for Power Over Ethernet Connectivity

Applications:

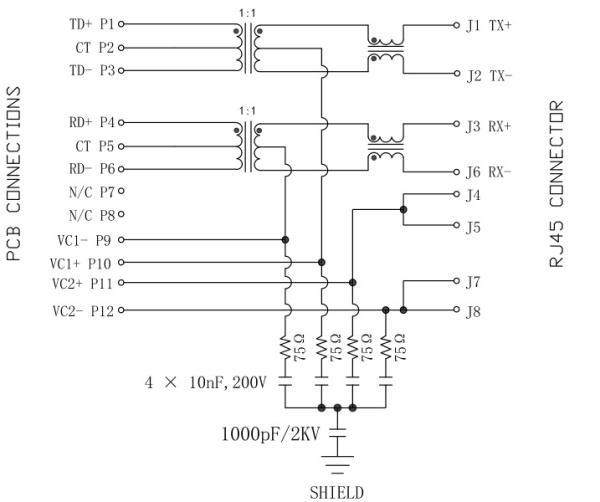

SMT RJ45 8p8c Jack with 10/100 Base-T Integrated Magnetics & PoE without LED,Tab UP,RoHS
LINK-PP Part Number LPJ19960CNL
Application-Lan ETHERNET(PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"/50u"
Cores per Port 4
Diodes NO DIODES
LED Option Without LEDS
Latch TAB UP
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (Inches) 0.457
Package Height (mm) 11.60
Package Length (Inches) 0.850
Package Length (mm) 21.60
Package Width (Inches) 0.614
Package Width (mm) 15.60
Pin Type SURFACE MOUNT
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 Base-T
Temperature - 40 TO + 85℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT

Used for networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

7498210003 SMT Ultra Low-Profile RJ45 Jack LPJ19960CNL With 10/100Mbps POE Ethernet

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

7498210003 SMT Ultra Low-Profile RJ45 Jack LPJ19960CNL With 10/100Mbps POE Ethernet

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

•Delivery Time:2-3 Weeks After Orders

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

LINK-PP Corporate Policy

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service
