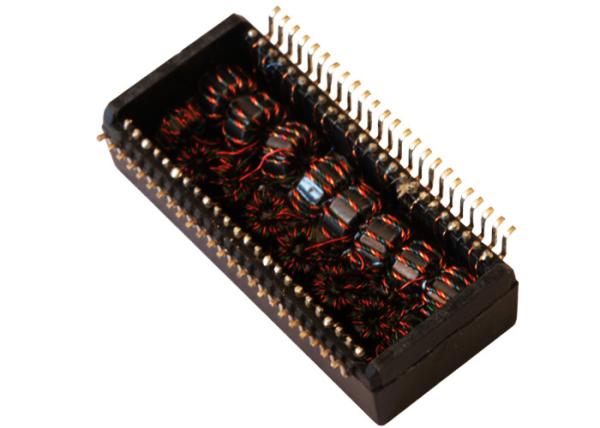

TG111-E212NWRL / LP85002ANL Telecom Transformer 1500Vrms , Reach RoHS standard
TG111-E212NWRL / LP85002ANL Telecom Transformer 1500Vrms , Reach RoHS standard
TG111-E212NWRL / LP85002ANL Telecom Transformer 1500Vrms , Reach RoHS standard
TG111-E212NWRL / LP85002ANL Telecom Transformer 1500Vrms , Reach RoHS standard
Specifications
Brand Name :
LINK-PP
Model Number :
TG111-E212NWRL
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Specification :
TG111-E212NWRL
Updated PN :
LP85002ANL
Turns Ratio :
1CT:1CT
Mounting :
Surface Mount
Ethernet :
1x10/100/1000Mbps Power
Isolation Voltage :
1500Vrms
OCL Inductance :
0.35 mH
Archivi Disponibil :
PDF/3D/ISG/Stp/Step/Datasheet
Description

TG111-E212NWRL | LP85002ANL Telecom Transformer 1CT:1CT 1500Vrms Surface Mount

  1. DATACOM TRANSFORMER FOR GENERAL PURPOSE APPLICATION(S)
  2. TRANSFORMER LAN 10/100/1000 SMD LP85002ANL POE Magnetic
  3. 50pins SMD Magnetic+ Transformer Power Ethernet
  4. TG111-E212NWRL Equivalent /Cross Compatible
  5. 350mA Current Ability
  6. Dual Port Fast / Gigabit Ethernet Isolation Module

  7. TheLP85002ANL is Compatible to TG111-E212NWRL

  8. 50 Pin 0.040 Pitch SMT Isolation Module Signal Transformer.

    Designed for Dual-Port Gigabit, IEEE802.3ab or Four-Port Fast Ethernet, IEEE802.3u applications.

  9. Product Specifications:

    Insertion loss(1-100 MHz) : -1.1 db max
    CMR(1-100MHz) : -40dB typ
    Crosstalk (1-100MHz) : -40dB typ
    Isolation Voltage : 1,500 Vrms

SPECIFICATIONS

Product Category: Transformers Audio & Signal
Manufacturer: LINK-PP
RoHS: Yes
Termination Style: SMD/SMT
Frequency Range: 1 MHz to 100 MHz
Inductance: 350 uH
Isolation Voltage: 1.5 kV
Operating Temperature Range: - 40 C to + 85 C
Series: LP85XXX
Packaging: Tube
Package / Case: SMD-50
Length: 27.94 mm
Width: 7.62 mm
Height: 8.64 mm
Brand: LINK-PP
Product Type: Ethernet Isolation Module
Qualification: AEC-Q200
Factory Pack Quantity: 18

Mfr Package Description ROHS COMPLIANT
EU RoHS Compliant Yes
Status Active
Transformer Type DATACOM TRANSFORMER
Application ETHERNET
Isolation Voltage 1500.0 V
Manufacturer Series TG111-E212NWRL
Mounting Feature SURFACE MOUNT
Number of Functions 8
Operating Temperature-Min -40.0 Cel
