JXD1-0001NL | LPJG16470ADNL Magnetic RJ45 Jack Gig_Ethernet Connectivity
JXD1-0001NL | LPJG16470ADNL Magnetic RJ45 Jack Gig_Ethernet Connectivity
JXD1-0001NL | LPJG16470ADNL Magnetic RJ45 Jack Gig_Ethernet Connectivity
JXD1-0001NL | LPJG16470ADNL Magnetic RJ45 Jack Gig_Ethernet Connectivity
Specifications
Brand Name :
LINK-PP
Model Number :
JXD1-0001NL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4300K.PCS/Month
Delivery Time :
Stock
Packaging Details :
54PCS/Tray,24Trays=37*30*30CM=1296PCS=10KG/Carton
Specification :
JXD1-0001NL
Equivalent :
LPJG16470ADNL
Ethernet :
1x10/100/1000Mbps
Mounting :
Shielded W/LED
Indicator :
LED Flexible
Samples :
Available
Description

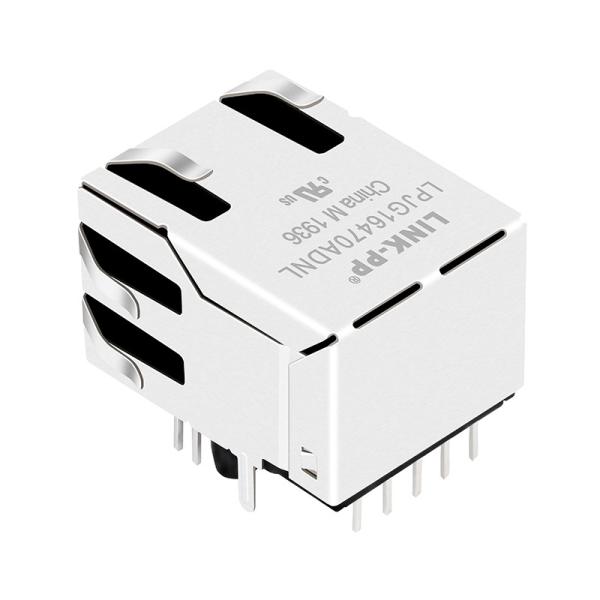

JXD1-0001NL | LPJG16470ADNL Magnetic RJ45 Jack Gig_Ethernet Connectivity

Equivalent to Pulse Jack # JXD1-0001NL / Pin to Pin replacement / Compatible / Cross / 3D_Stp.

Wave Soldering: LPJG16470ADNL

Pin In Paste Thru_Hole Reflow soldering: LPJG16470ADNLR

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±3%):
Pri:Sec = 1CT:1CT
2.Inductance OCL: 350uH MIN
@100KHz 0.1V 8mA DC Bias
3.DCR: 1.2Ω MAX
4.Insertion Loss:
-1.0dB MAX @1-100MHz
-1.2dB MAX @100-125MHz
5.Return Loss:
-16dB MIN @1-40MHz
-12dB MIN @40-60MHz
-10dB MIN @60-80MHz
-8dB MIN @80-100MHz
6.Cross talk:
-30dB MIN @1-100MHz
7.Common to Common Mode Attenuation:
-30dB MIN @1-100MHz
8.Hipot Test: 1500Vrms
9.Operating Temperature Range: -40℃ TO +85℃

NOTES:
1.Meets IEEE 802.3 specification
2.Connector Materials:
Housing Material:Thermoplastic LCP UL94V-0
Contact Material:Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins:Brass C2680R-H Thickness=0.35mm
Shield:SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
3.Maximum reflow temperature: 260℃ Max, 5 Sec
5.UL Certification: File Number E484635
