LPJ1029AWNL POE Connector Rj45 Jack 10/100Mbps , Android IPC Ethernet Port
LPJ1029AWNL POE Connector Rj45 Jack 10/100Mbps , Android IPC Ethernet Port
Specifications
Brand Name :
LINK-PP
Model Number :
LPJ1029AWNL
Certification :
ISO9001,SGS,UL,CE,REACH
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
Stock
Packaging Details :
50PCS/Tray,24Trays=1200pcs=37*30*30CM=11KG/Carton
Specification :
LPJ1029AWNL
Part NO :
LPJ1029AWNL
Ethernet :
1x10/100Mbps Ethernet Power
Mounting :
Thru-hole
Indicator :
LED
Samples :
Available
Description
LPJ1029AWNL POE Connector Rj45 Jack 10/100Mbps , Android IPC Ethernet Port

  • LPJ1029AWNL IEEE 802.3af PoE
  • Power Over Ethernet Rj45 Magnetics Module
  • Rj45 Power Over Ethernet Pinout
  • LPJ1029AWNL Right Angle Mod Jack
  • 1 x 10/100 Mbit Ethernet Power Support
  • Lan Connectors Rj45 Led

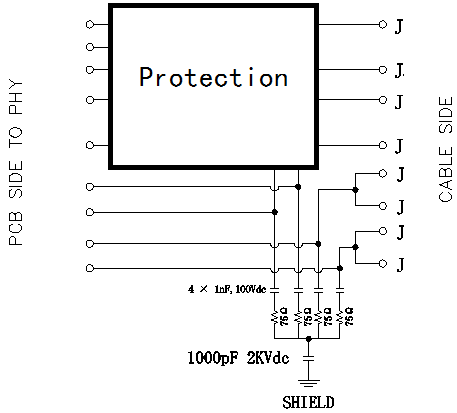

Rj45 Power Over Ethernet IEEE802.3af
Electrical Specification @25℃
1.Turns Ratio(±2%):
TX=1CT∶1CT RX=1CT∶1CT
2.Insertion Loss:
0.3～100MHz: -1.5dB Max
3.Return Loss:
1～30MHz:-16dB Min
60～80MHz:-10dB Min
4.Crosstalk:
1～100MHz:-30dB Min
5.OCL(0.1V,100KHz,20mA DC Bias):
350uH Min
6.Hipot: 1500Vrms
7.Operating Temperature: 0℃～70℃
LPJ1029AWNL POE Connector Rj45 Jack 10/100Mbps , Android IPC Ethernet Port
LPJ1029AWNL POE Connector Rj45 Jack 10/100Mbps , Android IPC Ethernet Port
