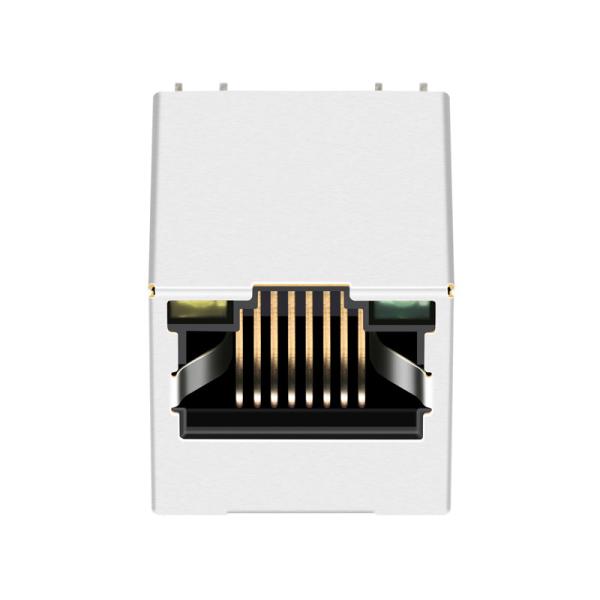

LPJD4012BENL , Vertical RJ45 Jack , 1CT:1CT, 8P8C 10/100Mbps, Shield LED G-Y
LPJD4012BENL , Vertical RJ45 Jack , 1CT:1CT, 8P8C 10/100Mbps, Shield LED G-Y
LPJD4012BENL , Vertical RJ45 Jack , 1CT:1CT, 8P8C 10/100Mbps, Shield LED G-Y
LPJD4012BENL , Vertical RJ45 Jack , 1CT:1CT, 8P8C 10/100Mbps, Shield LED G-Y
Specifications
Brand Name :
LINK-PP
Model Number :
LPJD4012BENL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
GuangDong, China
MOQ :
50/500/1000/25K
Price :
$0.09-$1.85
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3000000/Month
Delivery Time :
Stock
Packaging Details :
60pcs/Tray22 trays/carton,Size37*30*30 cm,10KGS (1320pcs)
Type :
Vertical RJ45 Connector With Integrated Magnetic
Latch :
UP
Ethernet :
10/100Base-T Ethernet PHY
LED Indicator :
Green-Yellow
Orientation :
180 Degree
Mounting Type :
Through Hole
Description
LPJD4012BENL , Vertical RJ45 Jack , 1CT:1CT, 8P8C 10/100Mbps, Shield LED G-Y
  • LPJD4012BENL
  • Top Entry Rj-45 Model
  • Rj45 With Integrated Magnetic
  • 1x10/100Mbps Vertical Rj45 Connectors
  • 8P8C Straight Rj45 Shield With LED
  • LPJD4012BENL.pdf

TEST NOTES(25±5℃)
1.TR:(100KHz,0.1V);
TX=1CT:1CT

RX=1CT:1CT

2.LX:(100KHz,100mV,8mA,DC Bias)
PINS:(P1-P3),(P4-P6)=350uH MIN
3. Transmitter filter & Receiver Filter Type:
Balance low pass 100Ω impedance
4. HIPOT:
Input(P1-P3)TO Output(J1-J2):1500VAC 60sec
Input(P4-P6)TO Output(J3-J6):1500VAC 60sec
5. INSERTION LOSS:
-1.0dB MAX @ 1.0MHz TO 100MHz
6. RETURN LOSS:
-18dB MIN @ 1.0MHz TO 30MHz
-16dB MIN @ 30MHz TO 60MHz
-12dB MIN @ 60MHz TO 80MHz
7. CROSS TALK:
-30dB MIN @1.0MHz TO 100MHz
8. COMMON MODE REJECTION:
-30dB MIN @1.0MHz TO 100MHz
9. OPERATING TEMPERATURE: -40℃～+85℃.

 LPJD4012BENL , Vertical RJ45 Jack , 1CT:1CT, 8P8C 10/100Mbps, Shield LED G-Y
LPJD4012BENL , Vertical RJ45 Jack , 1CT:1CT, 8P8C 10/100Mbps, Shield LED G-Y LPJD4012BENL , Vertical RJ45 Jack , 1CT:1CT, 8P8C 10/100Mbps, Shield LED G-Y
