RB1-2S5T9W14 10/100/1000 Full Duplex 1x Gigabit Ethernet Rj45 Connector With Led
RB1-2S5T9W14 10/100/1000 Full Duplex 1x Gigabit Ethernet Rj45 Connector With Led
Specifications
Brand Name :
LINK-PP
Model Number :
RB1-2S5T9W14
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specification :
RB1-2S5T9W14
Cross No :
LPJG0833G4NL
Original Munafactuer :
LINK-PP
Lan :
Gigabit Ethernet
Indicator :
LED
Samples :
Available
Description

RB1-2S5T9W14 10/100/1000 Full Duplex 1x Gigabit Ethernet Rj45 Connector With Led

  • 1 x 10/100/1000BASE-TX Rj45 Connector
  • LPJG0833G4NL Cross RB1-2S5T9W14
  • IEEE 802.3ab 1000BASE-T Gigabit Ethernet
  • Rj45 Right Angle PCB Connector

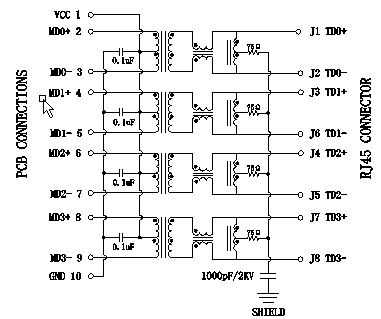

ELECTRICAL SPECFICATIONS @25℃
1.Turn Ratio(±2%):
TX=1CT:1 RX=1CT:1
2.Inductance OCL:
350uH MIN @ 100KHz,0.1V,8mA DC Bias
3.Insertion Loss:
-1.0dB MAX @ 1.0-100MHz
4.Return Loss:
-18dB MIN @ 1-10MHz
-16dB MIN @ 10-30MHz
-12dB MIN @ 30-60MHz
-10dB MIN @ 60-100MHz
5.Cross talk:
-35dB MIN @ 1-30MHz
-32dB MIN @ 30-60MHz
-30dB MIN @ 60-100MHz
6.Common Mode Rejection:
-30dB MIN @ 1-100MHz
7.Hipot Test:1500Vrms MIN
8.Operating Temperature Range: 0℃ TO 70℃

RB1-2S5T9W14 10/100/1000 Full Duplex 1x Gigabit Ethernet Rj45 Connector With Led
RB1-2S5T9W14 10/100/1000 Full Duplex 1x Gigabit Ethernet Rj45 Connector With Led RB1-2S5T9W14 10/100/1000 Full Duplex 1x Gigabit Ethernet Rj45 Connector With Led
