HFJT1-LGHRPE-L12RL Rj45 Power Over Ethernet LPJK6070AHNL 10/100/1000 Mbps
HFJT1-LGHRPE-L12RL Rj45 Power Over Ethernet LPJK6070AHNL 10/100/1000 Mbps
Specifications
Brand Name :
LINK-PP
Model Number :
HFJT1-LGHRPE-L12RL
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4200K-PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Part Number :
HFJT1-LGHRPE-L12RL
Equivalent :
LPJK6070AHNL
I/O :
10/100/1000 Ethernet
Samples :
Available
Description

HFJT1-LGHRPE-L12RL Rj45 Power Over Ethernet LPJK6070AHNL 10/100/1000 Mbps

  • Power Over Ethernet Rj45 Magnetics Module
  • 10/100/1000 Mbps Ethernet
  • 1X1 Tab-up POE+ Rj45
  • Hi-pot: 1500Vmrs Min

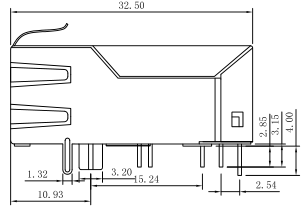

  • 33.02mm length RJ45 Magjack

HFJT1-LGHRPE-L12RL = LPJK6070AHNL

Electrical Specifications @25℃
1.Inductance: 350uH Min
@ 100KHz,0.1V,8mA DC BIAS
2.Turns Ratio(±2%): 1CT∶1CT
3.Insertion Loss:
1-100MHz:-1.0dB Max
4.Return Loss(load 100Ω):
1-30MHz:-18dB Min
30-60MHz:-16dB Min
60-80MHz:-12dB Min
80-100MHz:-10dB Min
5.Crosstalk:
1-100MHz:-30dB Min
6.Common Mode Rejection:
1-100MHz:-30dB Min
7.Hipot:1500Vrms Min @60Hz
8.Operating Temperature: -40℃～+85℃.

HFJT1-LGHRPE-L12RL Rj45 Power Over Ethernet LPJK6070AHNL 10/100/1000 Mbps

 HFJT1-LGHRPE-L12RL Rj45 Power Over Ethernet LPJK6070AHNL 10/100/1000 Mbps
