HR911102A Industrial RJ45 Sockets with 10/100 Magnetics Data I/O connector
HR911102A Industrial RJ45 Sockets with 10/100 Magnetics Data I/O connector
Specifications
Brand Name :
LINK-PP
Model Number :
HR911102A
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specification :
HR911102A
Part No :
LPJ4025FBNL
Ethernet :
1x10/100Mbit
Indicator :
G-Y LEDs
Mounting :
R/A Shield
Samples :
Available Free
Description

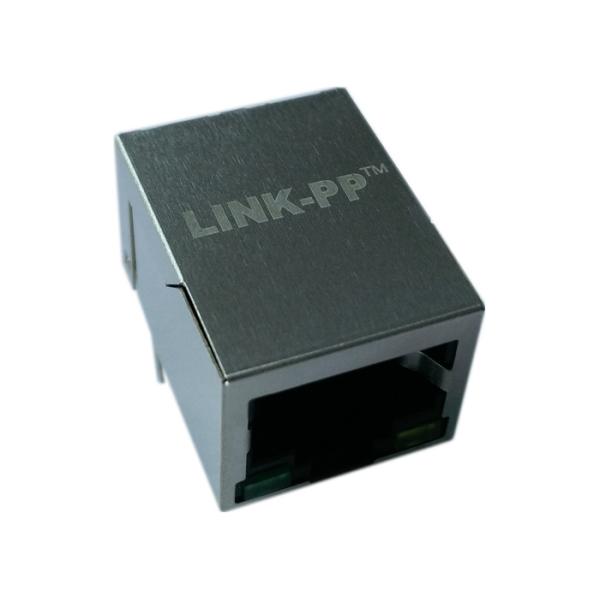

HR911102A Industrial RJ45 Sockets with 10/100 Magnetics Data I/O connector

  • LINK-PP Industrial temperature RJ45 sockets with internal 10/100 magnetics and two LEDs.
  • Cross Equivalent To HR911102A Specification
  • -40℃～+85℃: LPJ4025FBNL
  • 0℃～70℃: LPJ0025FBNL
  • Right Angle Shield 8P8C
  • 1:1 Turn Ratio

Electrical Specifications @25℃
1.Turns Ratio:
TX=1CT:1 RX=1CT:1CT
2.Inductance: 350uH MIN
@100KHz,100mVrms,8 mA DC bias
3.Insertion Loss:
1～65MHz:-1.0dB MAX
4.Return Loss(dB MIN):
1～30MHz:-18 40MHz:-16
50MHz:-12 60MHz:-10
5.Crosstalk(dB MIN):
30MHz:-40 60MHz:-35
100MHz:-30
6.CMR:(dB MIN):
30MHz:-30 60MHz:-20
100MHz:-20
7.Hipot: 1500Vrms
8.Operating Temperature: -40℃～+85℃.

HR911102A Industrial RJ45 Sockets with 10/100 Magnetics Data I/O connector HR911102A Industrial RJ45 Sockets with 10/100 Magnetics Data I/O connector
