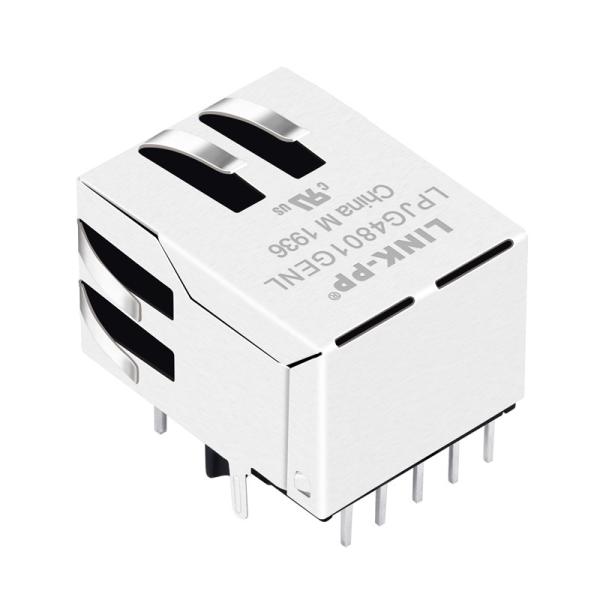

AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
Specifications
Brand Name :
LINK-PP
Model Number :
AR11-3827I
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specifications :
AR11-3827I
P/N :
LPJG4801GENL
Ethernet :
10/100/1000 AutoMDIX
Samples :
Available
Description
AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED

  1. 10/100/1000 AutoMDIX Ethernet Port Rj-45 AR11-3827I
  2. LINK-PP LPJG4801GENL Equivalent Specifications
  3. Single Port Rj45 Connector With Integrated Magnetics
  4. LED Rj45 Indicators 10/100/1000 AutoMDIX
Emitting Color λp(nm) VF@IF=20mA IR @VR=5V
Green 570 1.8~2.6V 10μA max
Yellow 585 1.8~2.6V 10μA max

1.Designed to support application,such as SOHO(ADSL AR11-3827I , LPJG4801GENL 1000Base-T Magnetic RJ45 Jack Single Port With LED
modems),LAN-on-Motherboard(LOM),hub and Switches.
2.Meets IEEE 802.3 specification
3.Connector Materials:
Housing: Thermoplastic PBT+30%G.F UL94V-0
Contact: Phosphor Bonze C5210R-EH Thickness=0.35mm
Pins: Brass C2680R-H Thickness=0.35mm
Shield: SUS 201-1/2H Thickness=0.2mm
Contact plating: Gold 6 micro-inches min.In contact area.
4.Wave solder tip temperature: 265℃ Max, 5 Sec Max
5.UL Certification: File Number E484635
