7499111001A 1000 Base-t Magnetic Single Port RJ45 Jack With LED LPJG0813CNL
7499111001A 1000 Base-t Magnetic Single Port RJ45 Jack With LED LPJG0813CNL
7499111001A 1000 Base-t Magnetic Single Port RJ45 Jack With LED LPJG0813CNL
7499111001A 1000 Base-t Magnetic Single Port RJ45 Jack With LED LPJG0813CNL
7499111001A 1000 Base-t Magnetic Single Port RJ45 Jack With LED LPJG0813CNL
7499111001A 1000 Base-t Magnetic Single Port RJ45 Jack With LED LPJG0813CNL
7499111001A 1000 Base-t Magnetic Single Port RJ45 Jack With LED LPJG0813CNL
7499111001A 1000 Base-t Magnetic Single Port RJ45 Jack With LED LPJG0813CNL
7499111001A 1000 Base-t Magnetic Single Port RJ45 Jack With LED LPJG0813CNL
7499111001A 1000 Base-t Magnetic Single Port RJ45 Jack With LED LPJG0813CNL
Specifications
Brand Name :
LINK-PP
Model Number :
7499111001A
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000
Price :
Supportive
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4600K.PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Specifications :
7499111001A
P/N :
LPJG0813CNL
Speed :
10/100/1000 Base-TX
Samples :
Available 2 pcs
Project Application :
Industrial Switches
Cores :
8
Description

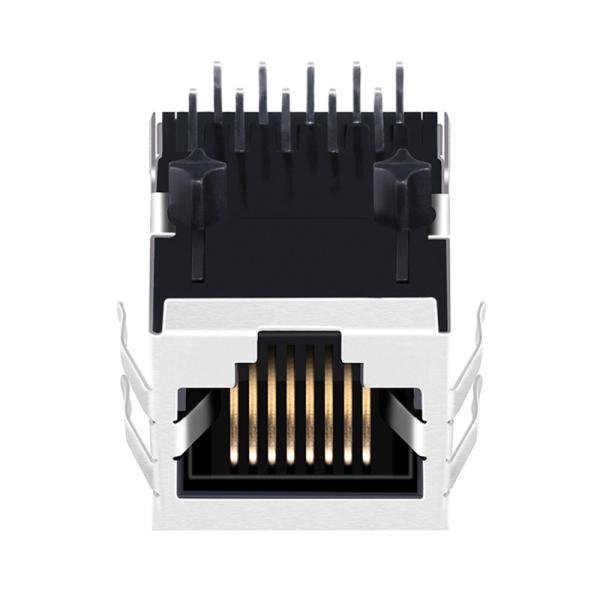

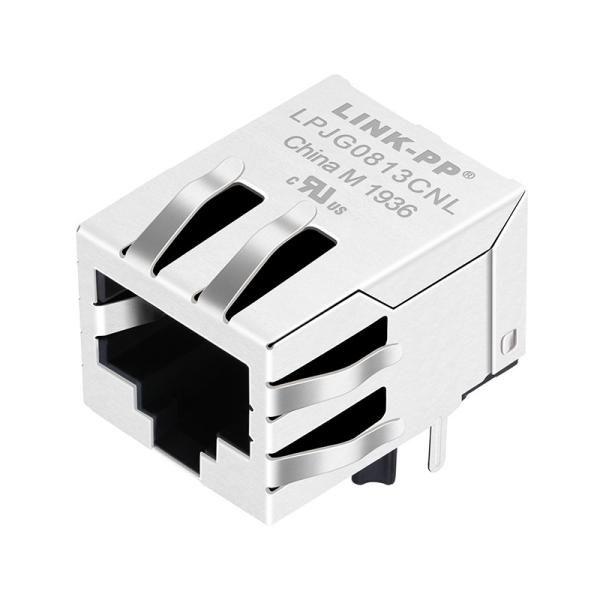

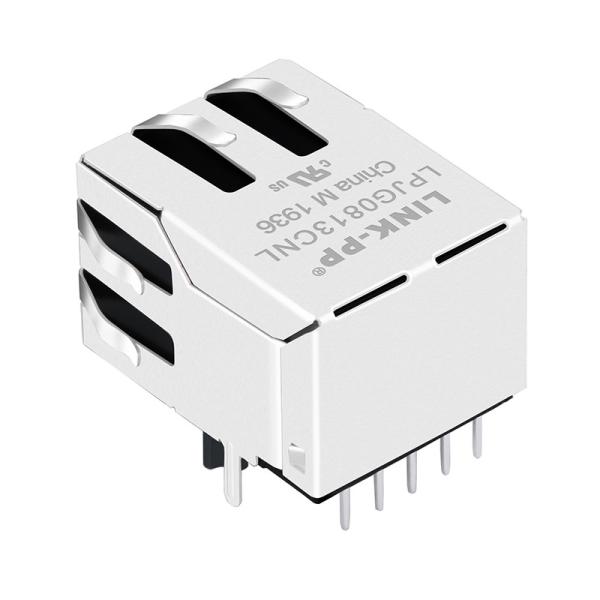

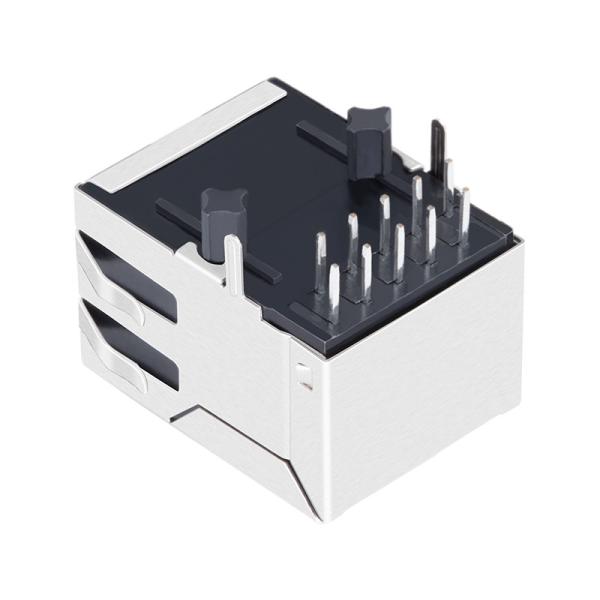

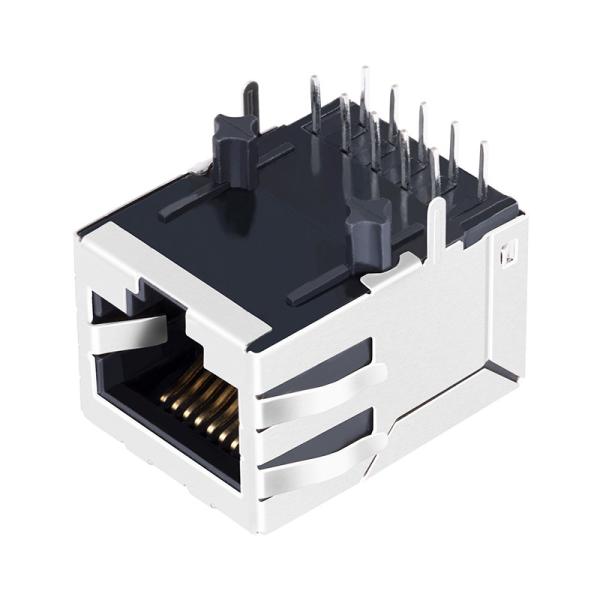

7499111001A 1000 Base-t Magnetic Single Port RJ45 Jack With LED LPJG0813CNL
  1. 10/100 AutoMDIX Ethernet Port Rj-45 7499111001A
  2. LINK-PP LPJG0813CNL Equivalent Specifications
  3. Single Port Rj45 Connector With Integrated Magnetics
  4. Tab Down Rj45 Indicators 10/100/1000 AutoMDIX
  5. LED Color : GREEN / YELLOW
Product Name LPJG0813CNL
Cross rf 7499111001A
Number of Ports 1x1
Height(mm) 13.40 mm
Length(mm) 21.30 mm
Width(mm) 15.90 mm
Speed 10/100/1000 Base-T
LED Color GREEN / YELLOW
Mounting Feature Side Entry
Temperature 0 TO 70℃
Shield EMI Tabs WITH
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
7499111001A 1000 Base-t Magnetic Single Port RJ45 Jack With LED LPJG0813CNL

Applications:

Used for networking and communication equipments such as HUB, PC card,Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem

Company profile :
LINK-PP Established in 1997,is worldwide leader in magnetic telecom,networking components and optical transceiver modules design and manufacturing. With an extensive line of state-of-the-art catalog products as well as custom capabilities, LINK-PP is a global supplier magnetic telecom,networking components and Optical Transceiver Modules,the OEM and ODM are welcome.

LINK-PP there are 2600 staff at present. With the abundant productive capacity of 6000k per month, we are able to deliver the goods within the short time. Moreover,we can provide the professional complete solution for magnetic components and strong technical support as well. Our products are widely used in networking and communication equipments such as HUB,PC card, Switch, Router ,PC Main board, SDH,PDH,IP Phone, xDSL modem.

Committed to bringing the highest possible level of compliance to international standards, all sites are ROSH6, ISO9000:2008 ISO14001:2004, UL,REACH ,CE, FCC,TUV,FDA Registered.
