ARJ11B-MASAV-LU2 Tab Down Rj45 8p8c Modular Connector 6 Cores 10/100 Base-T
ARJ11B-MASAV-LU2 Tab Down Rj45 8p8c Modular Connector 6 Cores 10/100 Base-T
Specifications
Brand Name :
LINK-PP
Model Number :
ARJ11B-MASAV-LU2
Certification :
UL,ROHS,Reach,ISO
Place of Origin :
China
MOQ :
50/500/1000/25K
Price :
$0.05-$1.28
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
4200K-PCS/Month
Delivery Time :
Stock
Packaging Details :
50pcs/tray,1200pcs/carton
Spec :
ARJ11B-MASAV-LU2
Interface :
10/100
Samples :
Free Available
Equivalent :
LPJxxxxNL
Dimension :
13.84x21.59x16.26mm
File :
PDF/3D/ISG/Stp/Step/Datasheet
Description
ARJ11B-MASAV-LU2 Tab Down Rj45 8p8c Modular Connector 6 Cores 10/100 Base-T
  • ARJ11B-MASAV-LU2 Pin To Pin Compatible
  • LPJxxxNL Equivalent to ARJ11B-MASAV-LU2
  • 10/100M Ethernet Port Female Jack
  • Tab Down Rj45 8p8c Modular Connector
Specifications ARJ11B-MASAV-LU2 ARJ11B-MASAV-LU2 Tab Down Rj45 8p8c Modular Connector 6 Cores 10/100 Base-T
REACH Compliant Yes
EU RoHS Compliant Yes
Cross Compatible LPJxxxNL
Approvals UL
Insertion Loss 1.0 dB
Isolation Voltage 1500.0 V
Operating Temperature 0 TO 70
Primary Inductance 350
Turns Ratio (Np:Ns) 1:1; 1:1
Height(mm) 5.51 mm
Length(mm) 17.53 mm
Width(mm) 12.2 mm

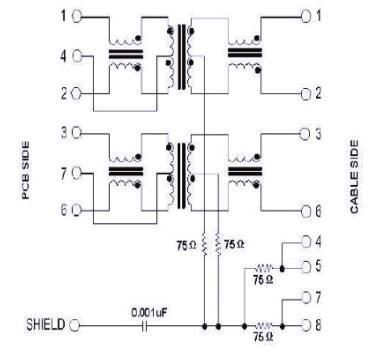

  • RJ-45 connector integrated with Filter
  • Size same as RJ-45 connector to save PCB board space
  • Reduce EMI radiation, Improve EMI performance
  • High performance for maximum EMI suppression.
  • ISO9001,SGS,UL,CE,REACH
  • Embedded mini PCI express Cellular modemfrom SierraWireless
  • Reduce EMI radiation, Improve EMI performance
  • Certified on all major carrier networks,attractive for network interface cards(NICS)Single port,
  • Multi-port and Stackable configurations (Thru-hole/ SMT)
  • Reduces the number of components to be placed on the board
  • Frees up board space and offers signal protection
  • Noise reduction in the system
  • Improved reliability and optimal system performance
  • Benefits of having shorter signal paths and the reliability gains from systems containing fewer components
  • Helps manufacturers reach their goals of cost reduction
