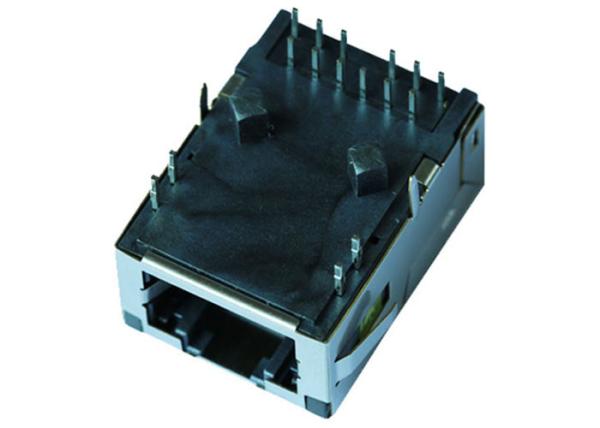

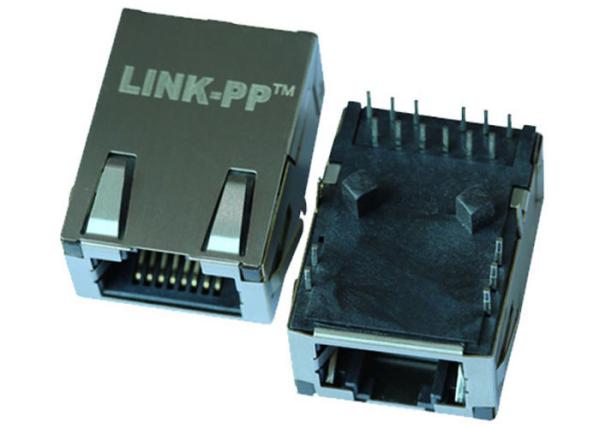

Low Profile 1x1 Port Rj45 PCB 10/100 Base-T Tab-up With LEDs LPJK8001AGNL

Designing Model: 【LPJK8001AGNL】

♦ LPJK8001AGNL 10/100M Low Profile Rj45
♦ Low Profile Rj45 plug LPJK8001AGNL
♦10/100Base-T Low Profile Rj45 With Magnetics
♦ Low Profile Rj45 PCB
♦ Low Profile Rj45 10/100 With Magnetics
♦ low profile Rj45 connecTor

♦ Designed for network interface card application.
♦ Designed to meet IEEE802.3u requirement.
♦ Available in all turn ratios used by LAN ICmanufactures.
♦ Primary center taps available for additional EMIreduction.
♦ Simplest magnetic component to place and route on PCB.
♦ Conserves minimizing PCB space.

MAG.REVERSE LATCH ,

LED optional ; EMI-finger Optional.

Description
Low Profile 1x1 Port Rj45 PCB 10/100 Base-T Tab-up With LEDs LPJK8001AGNL
Single Port Low Profile RJ45 Jack with 10/100 Base-T Integrated Magnetics,Yellow/Green LED,Tab Down,RoHS
LINK-PP Part Number LPJK8001AGNL
Application-Lan ETHERNET(NoN PoE)
AutomDX YES
Bst Circuit YES
Configuration RX T,C
Configuration TX T,C
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Cores per Port 4
Diodes NO DIODES
LED Option YELLOW/GREEN
Latch TAB DOWN
Number of Ports 1X1
PCB FR4
PCB Mount Angle SIDE ENTRY
PCB Retaining Post T POST
Package Height (mm) 11.30
Package Length (mm) 23.85
Package Width (mm) 17.78
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Speed 10/100 BASE-T
Temperature 0 TO 70℃
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
Low Profile 1x1 Port Rj45 PCB 10/100 Base-T Tab-up With LEDs LPJK8001AGNL

Ethernet Applications

Designed to support applications, such as ADSL modems, LAN-on-Motherboard. Networking and communication equipments such as HUB, PC card, Switch, Router, PC Mainboard, SDH, PDH, IP Phone, xDSL modem,Call Center solutions , Complex set top boxes , VOIP gateways setup,Border Gateway Protocol,fast ethernet switch ...


Famous Customer


Design for Ti , Intel , Samsung , Fluke , Jabil , Flextronics ,Cypress, Freescale,EKF.......


EMS Components Sourcing

Built-in Flexible PCB Assembly; Rigid-Flexible PCB Assembly; Microelectronic, Flip Chip; Microelectronic, Chip On Board; Optoelectronic Assembly; RF / Wireless Assembly; Through Hole Assembly; Surface Mount Assembly; System Assembly; Printed Circuit Board Assembly
