74633-004RLF 2X4 Multi - port Rj45 Connectors 8P8C Shielded LPJE308CNL
74633-004RLF 2X4 Multi - port Rj45 Connectors 8P8C Shielded LPJE308CNL
74633-004RLF 2X4 Multi - port Rj45 Connectors 8P8C Shielded LPJE308CNL
74633-004RLF 2X4 Multi - port Rj45 Connectors 8P8C Shielded LPJE308CNL
Specifications
Brand Name :
LINK-PP
Model Number :
74633-004RLF
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
50/500/1000/60K
Price :
$0.11-$24
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
180K/Month
Delivery Time :
Stock
Packaging Details :
Tray
Specifications :
74633-004RLF
Port :
2X4 Multi-port
Samples :
Available 1-3 pcs
File :
PDF/3D/ISG/Stp/Step/Datasheet
Jack Type :
RJ45
Manufacturer :
LINK-PP
Description
74633-004RLF 2X4 Multi-port Rj45 Connectors 8P8C Shielded LPJE308CNL

Part Number 74633-004RLF
LINK-PP Part Number LPJE308CNL
Application-Lan ETHERNET(NoN PoE)
Contact Mating Area Plating GOLD 6u"/15u"/30u"
Temperature 0 TO + 70℃
Diodes NO DIODES
LED Option YELLOW / GREEN
Shielding Shielded, EMI Finger
Mounting Type Through Hole
Orientation 90° Angle (Right)
Latch TAB UP / DOWN
Number of Ports 2X4
PCB Mount Angle SIDE ENTRY

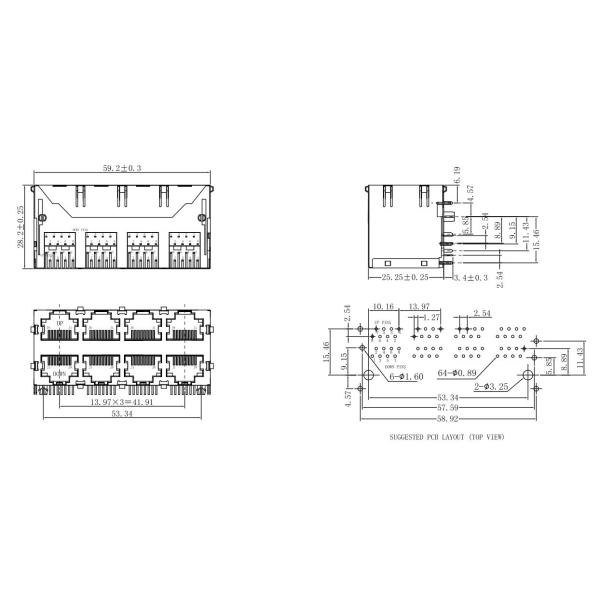

Package Height (mm) 25.25
Package Length (mm) 59.20
Package Width (mm) 28.20
Pin Type THT SOLDER
RoHS Compliant YES-RoHS-5 WITH LEAD IN SOLDER EXEMPTION
Search YES
Shield EMI Tabs WITH
Turns Ratio RX 1CT:1CT
Turns Ratio TX 1CT:1CT
74633-004RLF 2X4 Multi - port Rj45 Connectors 8P8C Shielded LPJE308CNL

Why Choose Us

World’s Leader Supplier Of Integrated RJ45 Connector And Discrete Magnetic Transformers

Professional Certification

•ISO 9001:2008

•UL Certification

•Reach Cetitifaction

•RoHS Compliance

•Active Environmental Policy

100% Guarantee Qualtiy

•Manufactured Under Strict Controls.

•100% Tested (Not Just Batch Tested)

•LINK-PP Is OEM Of TE (Tyco) For 9 Years

•Successful Customer: Texas Instruments Samsung Cisco Siemens And Intel…

•LINK-PP Is The Preferred Supplier Of TI (Texas Instruments)

•Quality Guarantee:6 Years

Competitive Price And Service

•More Competitive Price Than Pulse Tyco Halo And Amphenol

•Delivery Time:2-3 Weeks After Orders

•Free Samples Are Available

•Provide New Design For Customer Requirements

•90% Off Shipping Cost By DHL UPS DEDEX Or TNT

LINK-PP Corporate Policy

•The Corporate Goal Is To Achieve The Highest Level Of Customer Satisfaction

Through Continuous Improvements In Quality, Delivery And Service

• LINK-PP Is Committed To And Expects Quality Performance From Every Employee

• The Company Standard Is Defect-Free Products And Services

74633-004RLF 2X4 Multi - port Rj45 Connectors 8P8C Shielded LPJE308CNL
