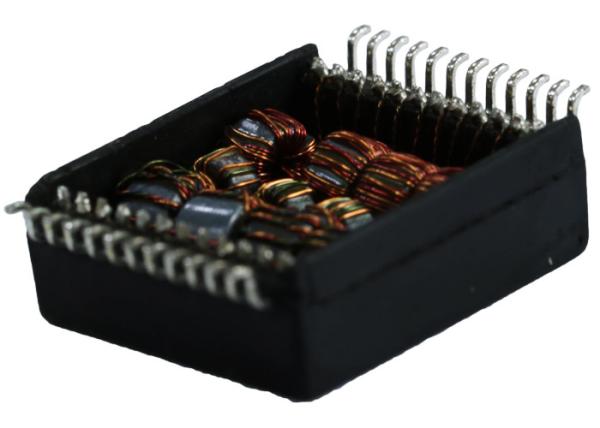

H2008NL / H2008NLT POE Transformer Audio & Signal 100Base-TX SMD PoE 2-Port
H2008NL / H2008NLT POE Transformer Audio & Signal 100Base-TX SMD PoE 2-Port
H2008NL / H2008NLT POE Transformer Audio & Signal 100Base-TX SMD PoE 2-Port
H2008NL / H2008NLT POE Transformer Audio & Signal 100Base-TX SMD PoE 2-Port
Specifications
Brand Name :
LINK-PP
Model Number :
H2008NL (T)
Certification :
UL,RoHS,Reach,ISO
Place of Origin :
Guangdong,China
MOQ :
400/2000/10K/25K
Price :
$0.06-$3.2
Payment Terms :
TT,NET30/60/90 Days
Supply Ability :
3KK/Month
Delivery Time :
Stock
Packaging Details :
T&R
Specification :
H2008NL (T)
Cross P/N :
LP2008ANL
Speed :
10/100 BASE-T
Ports :
Dual
Application :
Lan Ethernet (PoE)
PIN number :
24
Temperature :
-40 TO + 85℃ / 0 TO + 70℃
Archivi Disponibili :
PDF/3D/ISG/Stp/Step/Datasheet
Description
H2008NL / H2008NLT POE Transformer Audio & Signal 100Base-TX SMD PoE 2-Port

Mfr Package Description ROHS COMPLIANT
REACH Compliant Yes
EU RoHS Compliant Yes
Status Discontinued
Transformer Type DATACOM TRANSFORMER
Application 10/100 BASE-TX; ETHERNET
Approvals UL
Isolation Voltage 1500.0 V
Equivalent Cross PN LP2008ANL / LP2008NL
Manufacturer Series H2008NL / H2008NLT
Mounting Feature SURFACE MOUNT
Number of Functions 2
Operating Temperature-Min 0.0 Cel
Operating Temperature-Max 70.0 Cel
Packing Method Tape reel
Physical Dimension L13.64XB11.94XH6.22 (mm)
Terminal Finish TIN
Turns Ratio (Np:Ns) 1:1; 1:1
Height 6.22 mm
Length 13.64 mm
Width 11.94 mm
Additional Feature HEIGHT DIM INCLUDES TERMINALS ALSO
